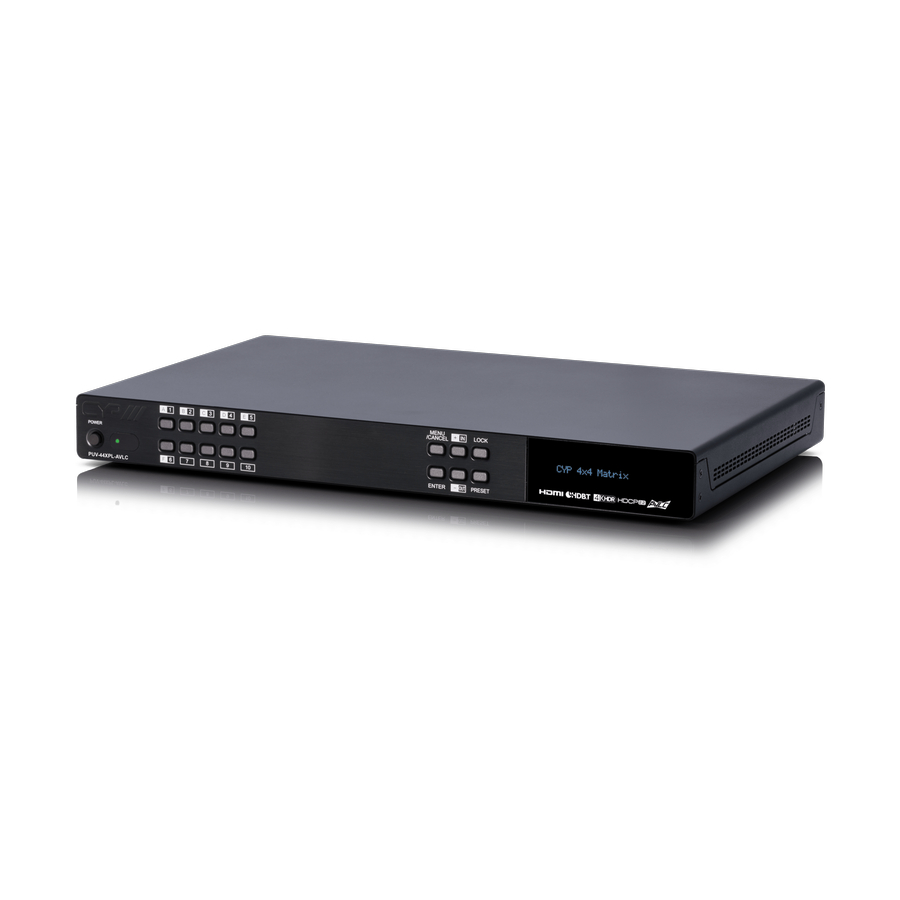

PUV-44XPL-AVLC
4x4 HDMI HDBaseT™ LITE Matrix with AVLC
& Audio De-embedding (4K, HDCP2.2, PoH, 60m)
inc. 4x PUV-1710LRX-AVLC Receiver
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUV-44XPL-AVLC and is the answer not in the manual?

Questions and answers

Related Manuals for CYP PUV-44XPL-AVLC

Summary of Contents for CYP PUV-44XPL-AVLC

  • Page 1 PUV-44XPL-AVLC 4x4 HDMI HDBaseT™ LITE Matrix with AVLC & Audio De-embedding (4K, HDCP2.2, PoH, 60m) inc. 4x PUV-1710LRX-AVLC Receiver OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........7 4. System Requirements ......7 5. Features ..........8 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ...........11 6.3 Remote Control ........13 6.4 IR Cable Pinouts ........14 6.5 RS-232 Pinout and Defaults ....14 6.6 OLED Menu ..........15 6.7 WebGUI Control ........19...

  • Page 6: Introduction

    1. INTRODUCTION This 4×4 HDMI over HDBaseT Matrix with AVLC supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as four HD sources may be routed to any of four destinations via single runs of cable up to a distance of 70m.

  • Page 7: Package Contents

    3. PACKAGE CONTENTS  1× 4×4 4K UHD+ HDMI over HDBaseT Matrix with AVLC  1× 24V/6.25A DC Power Adapter  1× Power Cord  2× IR Extender Cable  2× IR Blaster Cable  1× Remote Control (CR-163)  1×Shockproof Feet (Set of 4)  1×...

  • Page 8: Features

    5. FEATURES  HDMI with HDR & 4K@60Hz support, DVI 1.0 compatible  HDCP 1.x and HDCP 2.2 compliant  Routes four HDMI sources to four displays using four HDBaseT outputs  Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output  Supports deep colour input and output up to 12-bit  Supports 10-bit and 12-bit HDR (High Dynamic Range) bypass (Output...

  • Page 9: Operation Controls And Functions

    LOCK /CANCEL POWER ENTER PRESET PUV-44XPL-AVLC POWER Button: Press this button to power the unit on or place it into stand-by mode. Note: Network functionality and PoH remains active when the unit is in stand-by mode. POWER LED: This LED will illuminate green to indicate the unit is on and receiving power.
  • Page 10 +/IN Button: Inside the OLED menu, this button moves you up within the menu tree. Otherwise, in routing mode, this button allows you to make your input source selection. -/OUT Button: Inside the OLED menu, this button moves you down within the menu tree.

  • Page 11: Rear Panel

    6.2 Rear Panel RS232 ZONE AUDIO CONTROL SERVICE MAIN 24V IR IN IR IN IR IN IR IN IR IN IR OUT HDMI CAT5e/6/7 IR OUT HDMI IN IR OUT HDMI IN IR OUT HDMI IN IR OUT HDMI IN INPUTS AUTO DOWN SCALE AUTO DOWN SCALE...
  • Page 12 signals. All IR signals received by any IR Extenders connected to the matrix or HDBaseT receivers will be broadcast. Please place the IR Blaster in direct line-of-sight of the equipment to be controlled. CONTROL Port: Connect directly, or through a network switch, to your PC/laptop to control the unit via Telnet/WebGUI.

  • Page 13: Remote Control

    6.3 Remote Control POWER Button: Press to power the unit on or MUTE LOCK POWER place it into stand-by mode. LOCK Button: Press to lock/unlock the front panel of the matrix unit. MUTE Button: No function. 10/J PATTERN IN 1~4, OUT A~D & PATTERN Buttons: MENU/ CANCEL +/IN...

  • Page 14: Ir Cable Pinouts

    6.4 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.5 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits DE-9 Female Port Parity Bits None Stop Bits Flow Control None...

  • Page 15: Oled Menu

    6.6 OLED Menu All basic functions of this unit can be controlled by using the front panel’s OLED menu which is activated by pressing the MENU/CANCEL button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the menu.
  • Page 16 1-EDID 2ND LEVEL 3RD LEVEL 1-EDID Mode Independent 1-FHD/2CH 2-EDID Select 2-FHD/Mch (All or 1~4) 3-UHD/2ch 4-UHD/Mch 5-UHD+/2ch 6-UHD+/Mch 7-Sink A 8-Sink B 9-Sink C 10-Sink D 11-User 1 12-User 2 13-User 3 14-User 4 1) EDID Mode: Select the EDID mode of the unit between All or Independent.
  • Page 17 2-NETWORK 2ND LEVEL 3RD LEVEL 1-Link Status [Current link status] 2-IP Address [Unit’s current IP address] 3-Subnet Mask [Unit’s current subnet mask] 4-Gateway Address [Unit’s current gateway address] 5-MAC Address [Unit’s MAC address] 6-DHCP Mode 1) Link Status: Displays the current Ethernet link status. 2) IP Address: When DHCP is off, the IP address can be set here.
  • Page 18 3-FACTORY DEFAULT 2ND LEVEL 3RD LEVEL Factory Reset? 1) Factory Reset: Selecting “Yes” will perform a factory reset and return the unit to its factory default state. After the reset is complete, the unit will reboot automatically. 4-FIRMWARE 2ND LEVEL 3RD LEVEL 1-Version [Unit’s current firmware version]...

  • Page 19: Webgui Control

    6.7 WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorised dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
  • Page 20 WebGUI Overview After connecting to the WebGUI’s address in a web browser, a login prompt will appear. Please enter the appropriate user name and password then click “Sign In” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.
  • Page 21 6.7.1 Video Switch Tab This tab provides control over video routing, input and output naming, test pattern configuration, and preset storage/recall. 1) Output and Input Routing: To begin assigning a new video route, please click the button of the HDBaseT output you wish to send video to and then click on the button of the preferred HDMI input port or Pattern.
  • Page 22 the test pattern resolution and style used when the “Pattern” source is routed to the output. Click the “Save” button to confirm a name change. Note: Blank spaces are not allowed in names. ■ Timing: Test patterns can be generated on any HDBaseT output at the following standard resolutions with a variety of refresh rates: 480i/p, 576i/p, 720p, 1080p, 4K.
  • Page 23 4) Preset Settings: This matrix can store up to eight routing presets. Presets can be utilised to store multiple different routing states in advance for rapid, hassle-free, recall. To store, recall or view a preset, click the “Preset” icon ( ) in the upper right corner of the tab to open the Preset configuration window.
  • Page 24 After configuring the button pairing for a zone, the user can change the routing in whichever zone they are currently located simply by pressing a number key on the remote control. The discrete zone pairings can also be activated from within the WebGUI or by using Telnet/RS-232 commands. 1) Video and Audio Pairing Edit: Click the “Edit”...
  • Page 25 2) Quick Button Selection: To activate an audio/video pairing from the WebGUI, select the preferred output zone (A~D) to launch its selection window. The numbers 1~10 correspond to the keys on the remote control and hovering the mouse over each button will reveal the routing currently associated with it.
  • Page 26 local PC. Once the correct file has been selected, click the “Upload” button in the sub-window, and the file will be transferred to the unit. 2) Sink EDID Download: To save the EDID of a connected sink to your local PC, select the sink from the dropdown and then press the “Download”...
  • Page 27 6.7.4 HDBaseT & H/W Tab This tab provides information concerning the temperature inside the unit, the connection status of all outputs, and the HDBaseT firmware versions used by the unit and any connected receivers. 1) Hardware Monitor: Displays the current temperature inside the unit. 2) HDBaseT Information: Displays the HDBaseT firmware used by the unit and all connected receivers.
  • Page 28 6.7.5 User Config Tab The WebGUI username and password are set on this page. Two management levels are available: “Administrator” and “General User”. The administrator username (“admin”) cannot be changed. The “Administrator” user has access to change all settings. The “General User”...
  • Page 29 1) Power: Press this switch to toggle the unit’s power between ON and OFF (standby mode). Note: While in standby mode the unit’s WebGUI, Telnet and RS-232 controls are still active. 2) Network: The unit’s IP mode may be switched between Static IP or DHCP.

  • Page 30: Telnet Control

    6.8 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Unit’s Default EDIDs Click Start, type “cmd” in the search field, and press Windows 7 Enter.

  • Page 31: Rs-232 And Telnet Commands

    6.9 RS-232 and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Show the full command list. help Show the full command list. help N1 Show details about the specified command. N1 = {Command name} set factory default Reset the unit to the factory defaults. set factory ipconfig Reset the unit’s network settings to the default...
  • Page 32 COMMAND DESCRIPTION AND PARAMETERS set uart 1 baudrate N1 Set the baud rate of the RS-232 port. Available values for N1: 4800 [4800 baud] 9600 [9600 baud] 19200 [19200 baud] 38400 [38400 baud] 57600 [57600 baud] 115200 [115200 baud] get uart 1 baudrate Show the current baud rate of the RS-232 port.
  • Page 33 COMMAND DESCRIPTION AND PARAMETERS set gateway N1 Set the unit's static gateway address. N1 = X.X.X.X [X = 0 ~ 255] get gateway Show the unit's current gateway address. set webgui password Set the WebGUI login password. N1 = {Password} [16 characters max] get webgui password...
  • Page 34 COMMAND DESCRIPTION AND PARAMETERS set out N1 route N2 Route the specified input to the specified output. N1 = A ~ D [Output port] N2 = 1 ~ 4 [Input port] get out N1 route Show the current input routed to the specified output.
  • Page 35 COMMAND DESCRIPTION AND PARAMETERS get ir in custom code Show the current custom code used by the IR input. get in type list List the port type of all inputs on the unit. get out type list List the port type of all outputs on the unit. set out route Set multiple input/output routes N1N2,N1N2,...
  • Page 36 COMMAND DESCRIPTION AND PARAMETERS get route preset N1 Show the current name of the specified name preset. N1 = 1 ~ 8 [Preset number] get in port number Show the total number of inputs on the unit. get out port number Show the total number of outputs on the unit.
  • Page 37 COMMAND DESCRIPTION AND PARAMETERS set all in edid N1 [User 2 EDID] [User 3 EDID] (Cont) [User 4 EDID] get all in edid Show the current EDID used by the “All” EDID mode. get all in edid list List the EDIDs assigned to all inputs. set in N1 edid N2 Set the EDID to use on the specified input in “Appoint”...
  • Page 38 COMMAND DESCRIPTION AND PARAMETERS set edid N1 name N2 Set the name for the specified EDID. (Only User EDIDs may be renamed) N1 = 1 ~ 4 [User EDID] N2 = {Name} [32 characters max] get edid N1 name Show the name for the specified User EDID. N1 = 1 ~ 4 [User EDID] set user N1 edid data N2 Upload a new EDID (in HEX format) for use...
  • Page 39 COMMAND DESCRIPTION AND PARAMETERS set in N1 hdcp mode N2 Set the HDCP behavior of the specified input. N1 = 1 ~ 4 [Input port] Available values for N2: [HDCP disabled] [Follow source] [Follow display] get in N1 hdcp mode Show the current HDCP behavior used by the specified input.
  • Page 40 COMMAND DESCRIPTION AND PARAMETERS set pattern N1 timing Set the test pattern's resolution for the specified output. N1 = A ~ D [Output port] Available values for N2: [480p60] [576p50] [720p60] [720p50] [1080p24] [1080p25] [1080p30] [720p25] [720p30] [1080p60] [1080p50] [720p100] [720p120] [1080p120] [1080p100]...
  • Page 41 COMMAND DESCRIPTION AND PARAMETERS get pattern N1 timing Show the test pattern's current resolution for the specified output. N1 = A ~ D [Output port] get pattern timing list List all available test pattern output resolutions with their local index numbers. set pattern N1 mode N2 Enable or disable the test pattern on the specified output.
  • Page 42 COMMAND DESCRIPTION AND PARAMETERS set pattern N1 type N2 Set the test pattern type to use on the specified output. N1 = A ~ D [Output port] Available values for N2: [Red] [Green] [Blue] [Black] [White] [Magenta] [Yellow] [Cyan] [Ramp A] [Ramp B] [Toggle] [Colour Bar 80]...
  • Page 43 COMMAND DESCRIPTION AND PARAMETERS set out N1 osd timeout Set the OSD's timeout value for the specified output (in seconds). N1 = A ~ D [Output port] Available values for N2: [Always on] 1 ~ 60 [Timeout in seconds] get out N1 osd timeout Show the current OSD timeout value for the specified output.
  • Page 44 COMMAND DESCRIPTION AND PARAMETERS set out N1 osd banner Set the OSD banner location on the location N2 specified output. N1 = A ~ D [Output port] Available values for N2: [Top left] [Middle left] [Bottom left] [Top right] [Middle right] [Bottom right] [Top center] [Middle center]...
  • Page 45 COMMAND DESCRIPTION AND PARAMETERS get out N1 sync status Show the current sync state of the specified output. N1 = A ~ D [Output port] Available response values: [No sync] [Active sync] set feedback broadcast Enable or disable the broadcast of console command feedback.

  • Page 46: Connection Diagram

    7. CONNECTION DIAGRAM HDMI Source Devices • HDMI Input • IR Output 1.5m 1.5m 60° 60° 1.5m 1.5m 60° 60° Audio Zones • Analogue Audio Output RS-232 Equipped RS-232 PC or Control System RS232 ZONE AUDIO CONTROL SERVICE MAIN 24V IR IN IR IN IR IN...

  • Page 47: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps HDBaseT Bandwidth 10.2Gbps Input Ports 4×HDMI (Type-A) Output Port 4×HDBaseT (RJ-45) 4×Stereo Audio (RCA Pairs) Pass-through Ports 5×IR Extender (3.5mm) 5×IR Blaster (3.5mm) Control Ports 1×RS-232 (DE-9) 1×IP Control (RJ-45) Service Port 1×USB 2.0 (Type A) IR Frequency 30 –...

  • Page 48: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDBaseT 720×400p@70/85   640×480p@60/72/75/85   720×480i@60   720×480p@60   720×576i@50   720×576p@50   800×600p@56/60/72/75/85   848×480p@60   1024×768p@60/70/75/85   1152×864p@75   1280×720p@50/60 ...
  • Page 49 Input Output Supported Resolutions (Hz) HDMI HDBaseT 1920×1080p@50/60   1920×1200p@60RB   2560×1440p@60RB   2560×1600p@60RB   2048×1080p@24/25/30   2048×1080p@50/60   3840×2160p@24/25/30   3840×2160p@50/60 (4:2:0)   3840×2160p@24, HDR10 AVLC  3840×2160p@50/60 (4:2:0), AVLC  HDR10 3840×2160p@50/60 AVLC...

  • Page 50: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input/Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analogue Audio Analogue Output Max Audio Level 2Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) >...

  • Page 51: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input Ethernet Cable Cat.5e/6 Cat.6a/7 Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &...

  • Page 52: Hdbaset Features

    8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Unsupported USB 2.0 Extension Unsupported...

  • Page 53: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange AVLC Adaptive Visually Lossless Compression Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6a Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Digital-to-Analogue Converter DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID...
  • Page 54 ACRONYM COMPLETE TERM On-Screen Display Powered Device Power over HDBaseT Power Sourcing Equipment Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise Ultra-High-Definition (10.2Gbps) UHD+ Ultra-High-Definition Plus (18Gbps) UHDTV Ultra-High-Definition Television Universal Serial Bus WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking)
  • Page 56 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
