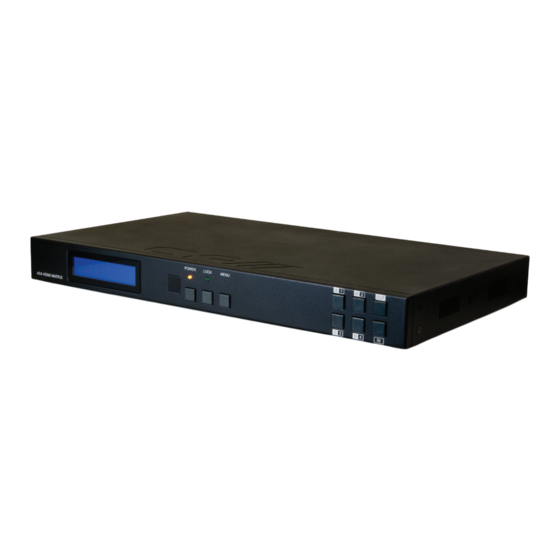

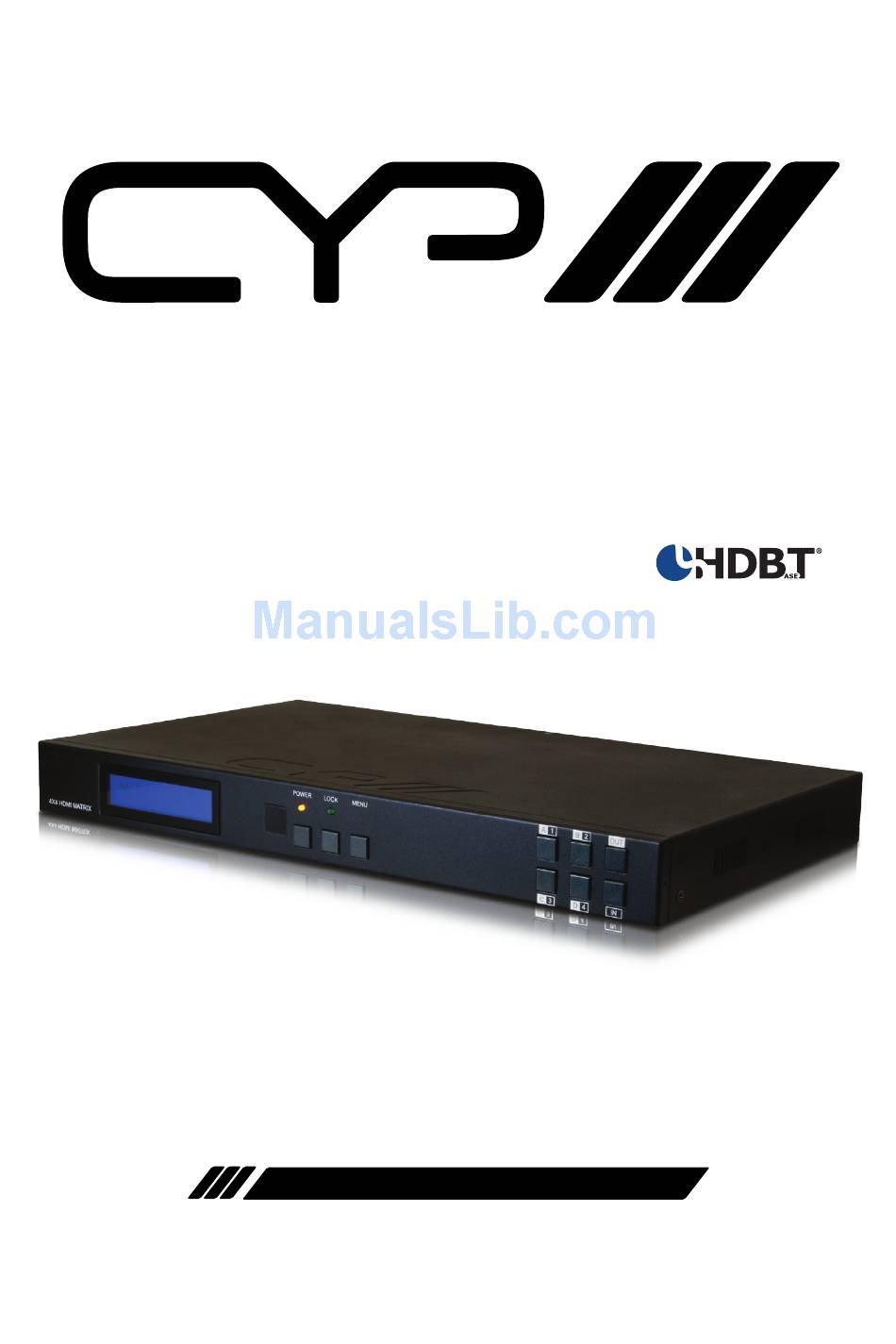

- Page 1 PU-424HBTL-KIT 4 x 4 HDMI HDBaseT™ LITE Matrix (with 2 simultaneous HDMI outputs) including 4x PU-514L-RX Receivers OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 6.3 Side Panel ...........10 6.4 Remote Control ........10 6.5 IR Pin Assignment ........11... -
Page 6: Introduction
Use the IP control feature to enable users to access and control the matrix remotely and also allow additional options for integration of third-party control systems. CYP provide control drivers for control systems such as Control 4, RTI, Crestron, AMX, Control FX, and RTI. These are available at no extra cost. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connect with HDMI cables Industry standard CAT5e/6/7 cables 5. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER LOCK MENU CMSI-424E 4X4 HDMI MATRIX LCM : Displays the setting information of each input and output setting. IR: IR Receiver window (accepts the remote control signal of this device only). POWER: Press this button to power the device on/off. -
Page 9: Receiver Front And Rear Panels
6.2 Rear Panel IR OUT HDMI OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT HDMI OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT IR IN SERVICE HDMI IN 1 HDMI IN 2 HDMI IN 3 HDMI IN 4 DC 24V... -
Page 10: Side Panel
6.3 Side Panel Ventilator: These are fan ventilation areas, DO NOT block these areas or cover them with any object. Ensure there is adequate space around the unit for air to circulate. 6.4 Remote Control Power: Press this button to switch on the device or set it to standby mode. Input ports selection 1~4. -
Page 11: Ir Pin Assignment
6.5 IR Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding 6.6 RS-232 Pin Assignment PU-424HBTL Remote Control Console Assignment Assignment ► ◄ Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 12: Rs-232 & Telnet Commands
6.7 RS-232 & Telnet Commands Command (Case Sensitive) Description A1~A4 Switch output A to 1~4 B1~B4 Switch output B to 1~4 C1~C4 Switch output C to 1~4 D1~D4 Switch output D to 1~4 AB...1~CD...4 Switch output ABCD... to 1~4 SETIP<IP><SubNet><GW> Setting IP. SubNet. GateWay (Static IP) RSTIP IP Configuration: Reset to Factory Defaults <DHCP>... -
Page 13: Telnet Control
6.8 Telnet Control Before attempting to use the telnet control, please ensure that both both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the same active network. Note: Please do not connect both the Matrix and the PC/Laptop with a single CAT5e/6 cable as it will not access the telnet function. - Page 14 Once in the command line interface (CLI) type "telnet", a space,then the IP address of the unit you wish to control, a space and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice.
-
Page 15: Web Gui Control
6.9 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. - Page 16 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 17: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE HDMI CAT5e/6 Output Output IR OUT IR IN HDMI OUT CAT5e/6 OUT CAT5e/6 OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT IR OUT HDMI OUT CAT5e/6 OUT CAT5e/6 OUT IR IN SERVICE HDMI IN 1... -
Page 18: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 4×HDMI, 5×IR Extender, 1×CONTROL, 1×RS-232, 1×Mini-USB B type(for firmware update only) Output Ports 4×CAT5e/6/7, 2×HDMI, 5×IR Emitter ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 24 V/3.75 A DC (US/EU standards, CE/FCC/UL certified) Dimensions... -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System EDID Extedned Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface... - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
