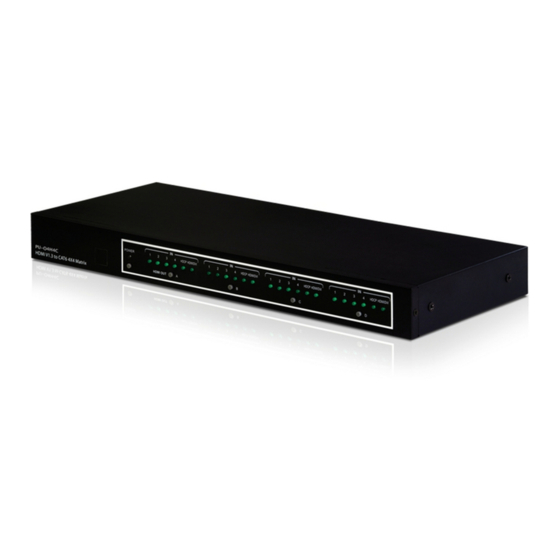

- Page 1 PU-O4H4C 4 by 4 HDMI V1.3 over CAT 6 Matrix with IR Return Control Operation Manual PU-O4H4C...
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction..……………………..…………………........ 2. Applications......…..……………………………………..… 3. Package Contents......……………………………….……. 4. System Requirements......……………………………..…… 5. Features........…..…………………………………...……….. 6. Specifications..................7. Operation Controls and Functions.....……...……...………….. 7.1. Front Panel......…………………………………...………….. 7.2. Rear Panel.......…………………………………...………….. 8. Remote Control.......…..……………………………...………….. 9. RS-232 Protocol.......…………..……………………...………….. 9.1 Pin Definitions....…………..……………...……...………..….. 9.2 Commands....…………………….……………...………..….. 9.3. IR Cable Pin Definitions....………….……………...……..….. 10. -
Page 5: Introduction
1. Introduction This HDMI over CAT6 Matrix is a high performance equipment with remote control, IR blaster and receiver. It is compatible with HDMI v1.3 specifications, a cutting-edge technology which defines support for Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio. -
Page 6: Features
5. Features HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant Supports digital video formats in Deep Color Mode of up to 36 bits (12bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio HDMI input compensation, clock / phase adjustments, and jitter ... -
Page 7: Specifications
6. Specifications Frequency Bandwidth 2.25Gbps (single link) Input Ports 4 x HDMI female ports, Output Ports 4 x Video/DDC CAT 6 ports EDID Standard, TV/Moving Port 1 ESD Protection Human body model: ± 10kV (air-gap discharge) ± 6kV (contact discharge) HDMI Audio Output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, and DTS-HD... -
Page 8: Operation Controls And Functions
POWER HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI CMLUX-4H4CAT PU-O4H4C HDMI OUT HDMI OUT HDMI V1.3 to CAT6 4X4 Matrix HDMI V1.3 to CAT6 4X4 Matrix ① ① ② ② ③... - Page 9 2. When EDID is switched to STD, the unit will use its built-in EDID that supports: Video → 1080p 12-bit (max) supports xvYCC Audio → PCM 2CH 3. The EDID selection will only be activated after the unit is re-plugged and powered on.
-
Page 10: Remote Control
HDMI OUT C. 5. Input Select for HDMI OUT D: Press 1, 2, 3 or 4 to select the desired input source for HDMI OUT D. 9. RS-232 Protocol 9.1 Pin Definitions PU-O4H4C CMLUX-4H4CAT Remote Control Console Definitions Definitions →... -
Page 11: Commands
9.2 Commands COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input1 PORT 12 Output A select Input2 PORT 13 Output A select Input3 PORT 14 Output A select Input4 PORT 21 Output B select Input1 PORT 22 Output B select Input2 PORT 23... -
Page 12: Ir Cable Pin Definitions
9.3. IR Cable Pin Definitions IR Blaster IR Receiver ① Power 5V ① IR signal ② IR blaster signal ② Power 5V ③ IR blaster signal ③ Grounding ① ② ③ ① ② ③ Note: The frequency on both IR Receiver & Blaster can support 20~60KHz. 10. -
Page 13: Connection And Installation
11. Connection and Installation ° ° POWER OUTPUT OUTPUT OUTPUT Receiver OUTPUT CR-33 IR Blaster for all players For Play A Play A CAT 6 Cable For Play B Play B For Play C Play C HDMI Cable For Play D Play D CLUX-22HC CLUX-1CAT4H... -
Page 14: Acronyms
Acronyms Acronym Complete Term CAT6 Catergory 6 Cable Digital Theater Systems Digital Visual Interface EDID Extended Display Identification Data HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared UXGA Ultra Extended Graphics Array Video Graphics Array...
