INSTR. DIMENSIONS AND INSTALLATION

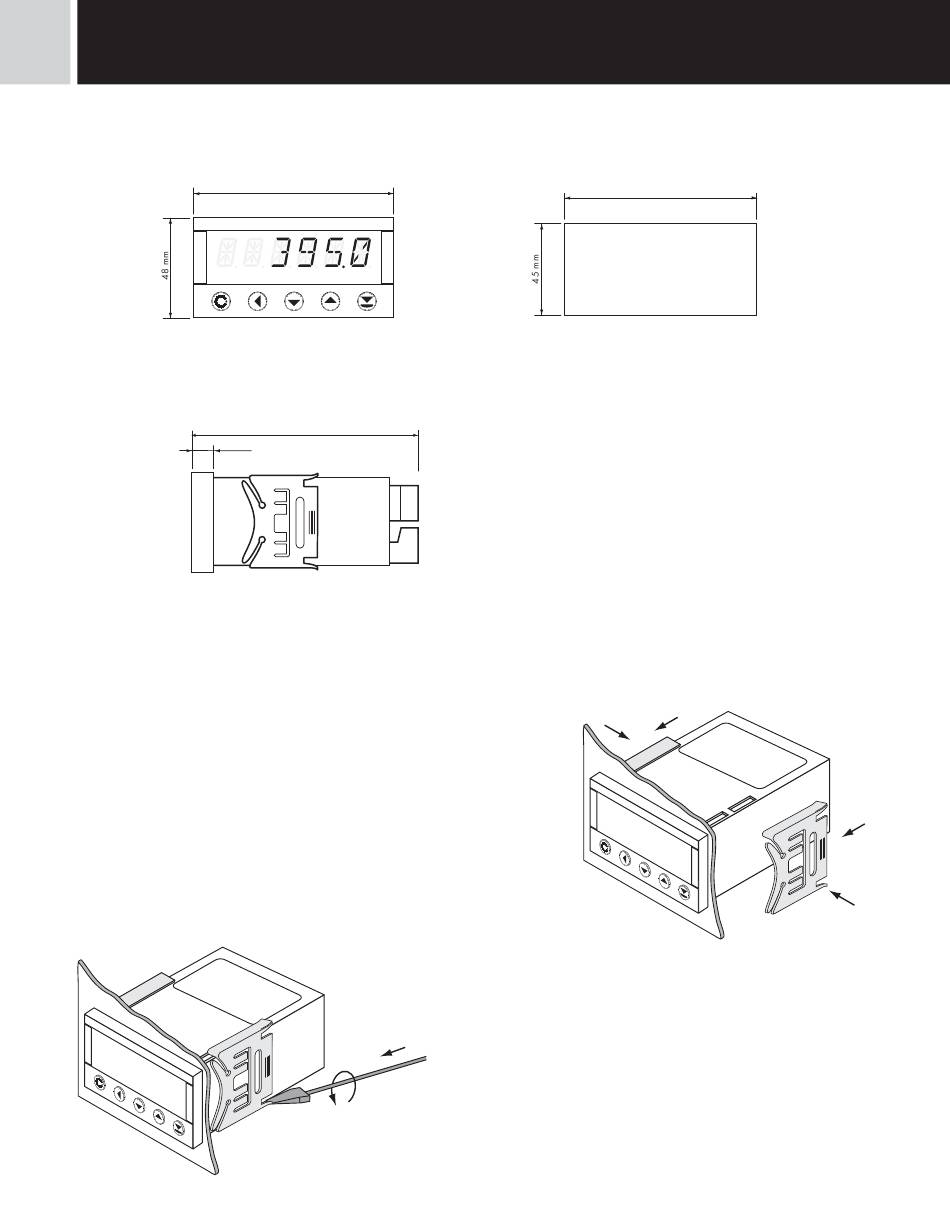

Front view
Side view
Instrument installation
1. insert the instrument into the panel cut-out
2. fit both travellers on the box
3. press the travellers close to the panel
|
80
INSTRUCTIONS FOR USE OM 402UNI
96 mm
1
2
T
119 mm
13,5 mm
2
Panel cut
1
Instrument disassembly
1. slide a screw driver under the traveller wing
2. turn the screw driver and remove the traveller
3. take the instrument out of the panel
90,5 mm
Panel thickness: 0,5...20 mm
2
1
2
1
