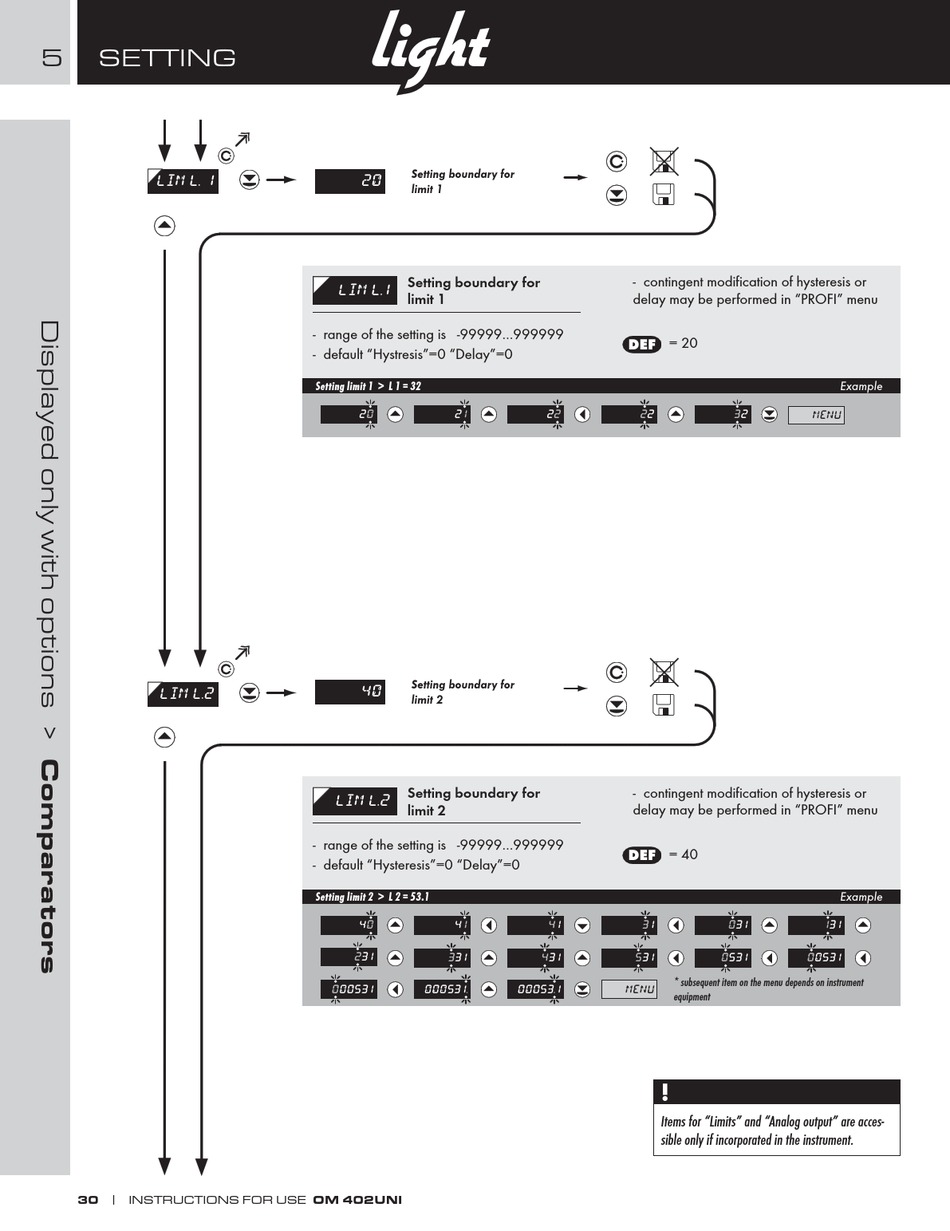

5 SETTING
LIM L. 1
LIM L. 2
|
30 INSTRUCTIONS FOR USE OM 402UNI
light light
Setting boundary for
20
limit 1
Setting boundary for
LIM L. 1
limit 1
- range of the setting is -99999...999999
- default "Hystresis"=0 "Delay"=0
Setting limit 1 > L 1 = 32
20 21
Setting boundary for
40
limit 2
Setting boundary for
LIM L. 2
limit 2
- range of the setting is -99999...999999
- default "Hysteresis"=0 "Delay"=0
Setting limit 2 > L 2 = 53.1
40 41
231
331
000531 000531.
- contingent modification of hysteresis or
delay may be performed in "PROFI" menu
= 20
DEF
22 22
- contingent modification of hysteresis or
delay may be performed in "PROFI" menu
= 40
DEF
41 31
431 531
* subsequent item on the menu depends on instrument
00053. 1 MENU
equipment
!
Items for "Limits" and "Analog output" are acces-
sible only if incorporated in the instrument.
Example
32
MENU
Example
031 131
0531 00531
