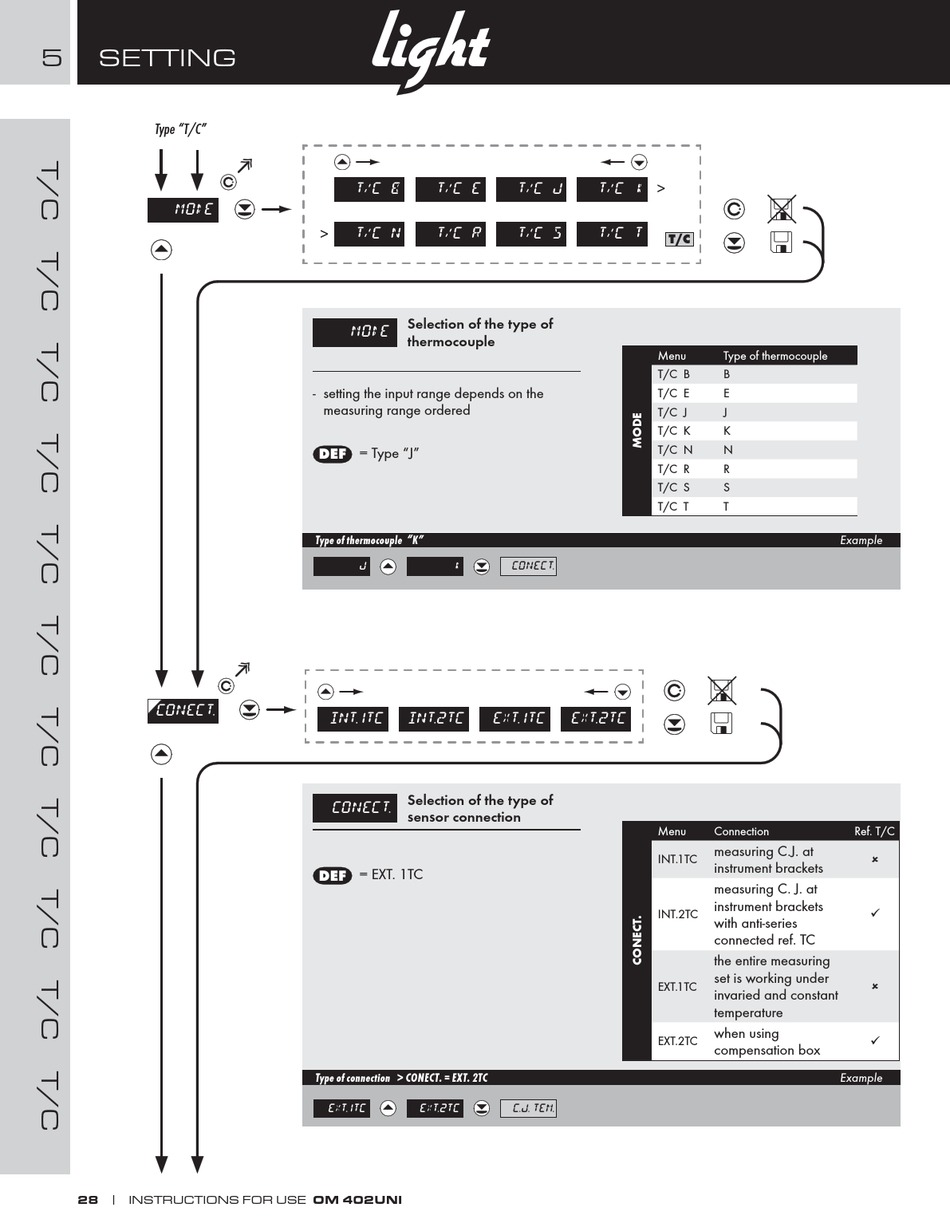

5 SETTING
Type "T/C"
MODE
CONECT.
|
28 INSTRUCTIONS FOR USE OM 402UNI
light light
T/C B T/C E
>
T/C N T/C R
Selection of the type of
MODE
thermocouple
- setting the input range depends on the
measuring range ordered
= Type "J"
DEF
Type of thermocouple "K"
J K
INT. 1 TC INT. 2 TC EXT. 1 TC
Selection of the type of
CONECT.
sensor connection
= EXT. 1TC
DEF
Type of connection > CONECT. = EXT. 2TC
EXT. 1 TC EXT. 2 TC
>
T/C J T/C K
T/C S T/C T
T/C
Menu
T/C B
T/C E
T/C J
T/C K
T/C N
T/C R
T/C S
T/C T
CONECT.
EXT. 2 TC
Menu
INT.1TC
INT.2TC
EXT.1TC
EXT.2TC
C. J . TEM.
Type of thermocouple
B
E
J
K
N
R
S
T
Example
Connection Ref. T/C
measuring C.J. at
instrument brackets
measuring C. J. at
instrument brackets
with anti-series
connected ref. TC
the entire measuring
set is working under
invaried and constant
temperature
when using
compensation box
Example
