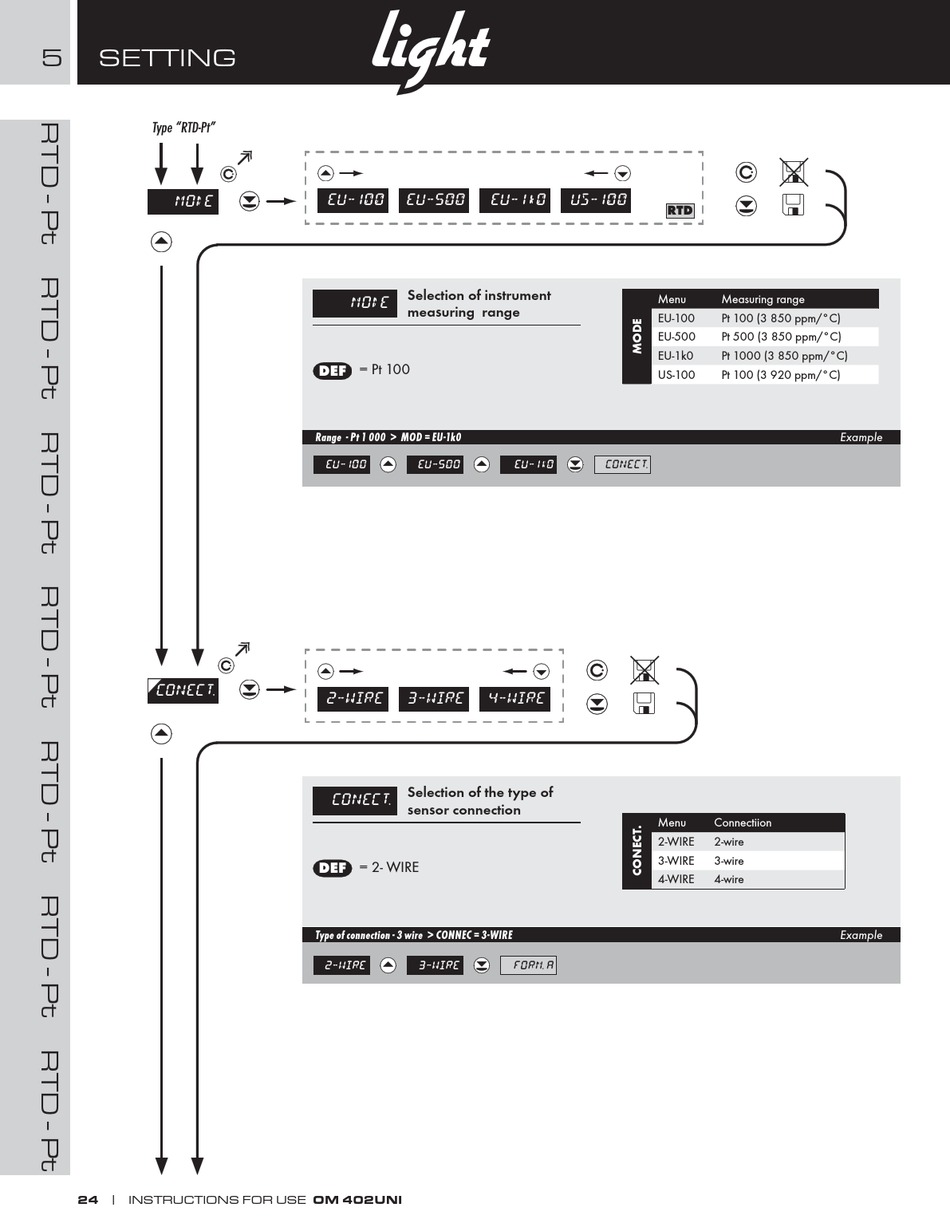

5 SETTING
Type "RTD-Pt"
MODE
CONECT.
|
24 INSTRUCTIONS FOR USE OM 402UNI
light light
EU-100 EU-500 EU-1k0
Selection of instrument
MODE
measuring range
= Pt 100
DEF
Range - Pt 1 000 > MOD = EU-1k0
EU-100 EU-500
2-WIRE 3-WIRE 4-WIRE
Selection of the type of
CONECT.
sensor connection
= 2- WIRE
DEF
Type of connection - 3 wire > CONNEC = 3-WIRE
2-WIRE 3-WIRE
US-100
RTD
Menu
EU-100
EU-500
EU-1k0
US-100
EU-1K0 CONECT.
Menu
2-WIRE
3-WIRE
4-WIRE
FORM. A
Measuring range
Pt 100 (3 850 ppm/°C)
Pt 500 (3 850 ppm/°C)
Pt 1000 (3 850 ppm/°C)
Pt 100 (3 920 ppm/°C)
Example
Connectiion
2-wire
3-wire
4-wire
Example
