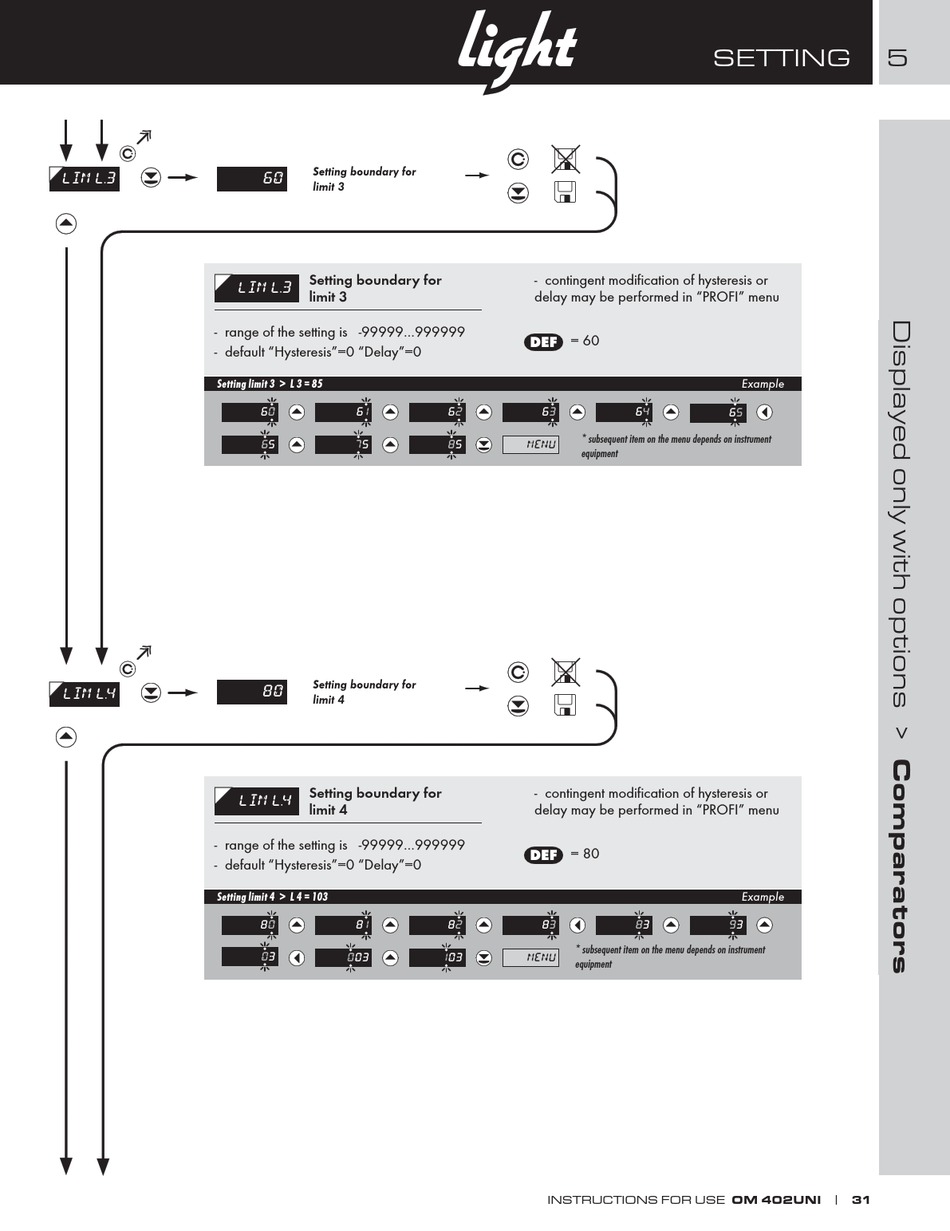

Orbit Merret OM 402UNI Manual page 31

LIM L. 3
LIM L. 3
- range of the setting is -99999...999999
- default "Hysteresis"=0 "Delay"=0
Setting limit 3 > L 3 = 85
LIM L. 4
LIM L. 4
- range of the setting is -99999...999999
- default "Hysteresis"=0 "Delay"=0
Setting limit 4 > L 4 = 103
Setting boundary for
60
limit 3
Setting boundary for
limit 3
60 61
65 75
Setting boundary for
80
limit 4
Setting boundary for
limit 4
80 81
03
003
light light
- contingent modification of hysteresis or
delay may be performed in "PROFI" menu
= 60
DEF
62 63
* subsequent item on the menu depends on instrument
85 MENU
equipment
- contingent modification of hysteresis or
delay may be performed in "PROFI" menu
= 80
DEF
82 83
* subsequent item on the menu depends on instrument
103 MENU
equipment
INSTRUCTIONS FOR USE OM 402UNI
SETTING
Example
64
65
Example
83 93
5
|
