Orbit Merret OM 402UNI Manual page 19

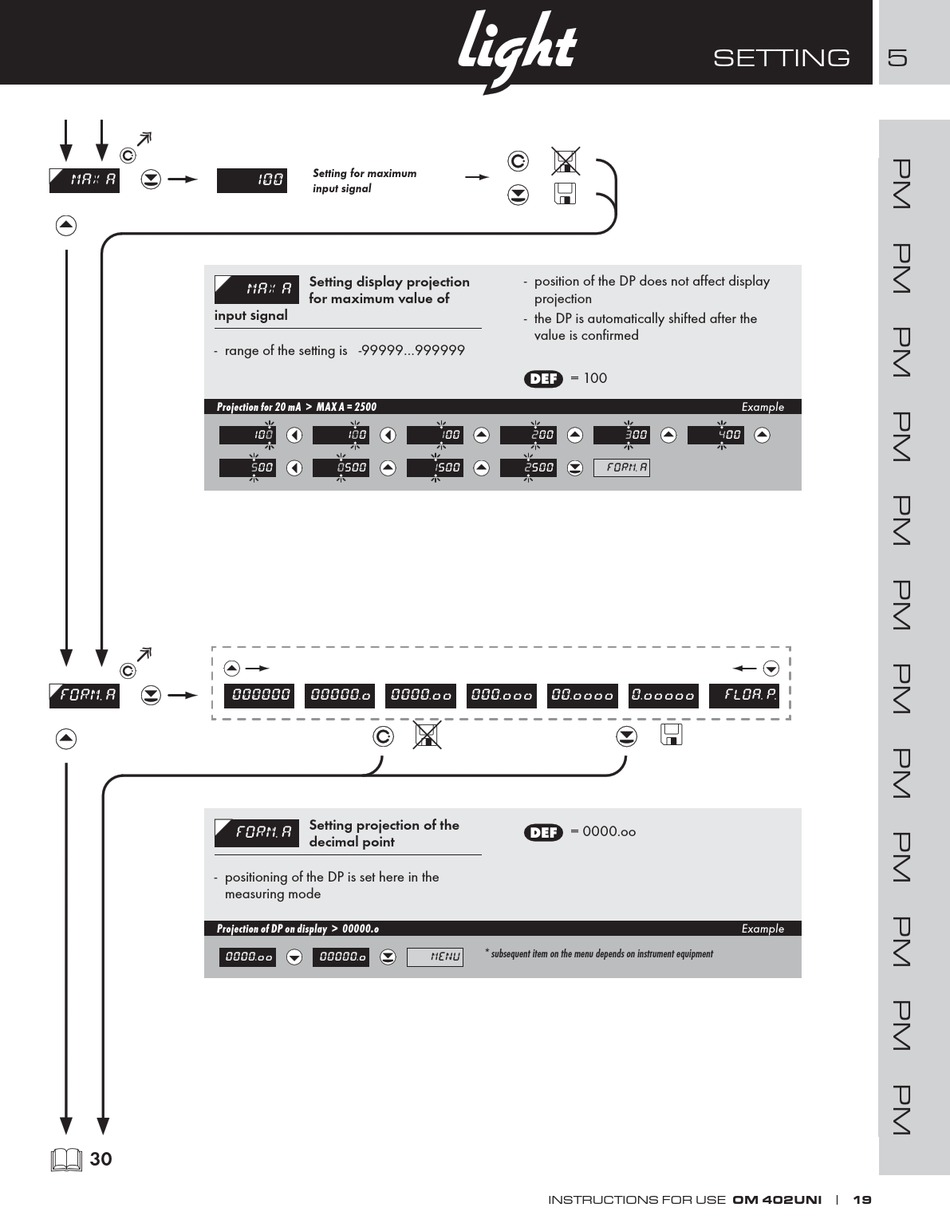

MAX A
input signal
- range of the setting is -99999...999999
Projection for 20 mA > MAX A = 2500
FORM. A 000000
FORM. A
- positioning of the DP is set here in the
measuring mode
Projection of DP on display > 00000.o
0000. oo
30
Setting for maximum
100
input signal
Setting display projection
MAX A
for maximum value of
100 100
500 0500
00000. o 0000. o o
Setting projection of the
decimal point
00000. o
light light
- position of the DP does not affect display
projection
- the DP is automatically shifted after the
value is confirmed
= 100
DEF
100 200
1500 2500 FORM. A
000. o oo 00. o ooo
= 0000.oo
DEF
* subsequent item on the menu depends on instrument equipment
MENU
INSTRUCTIONS FOR USE OM 402UNI
SETTING
Example
300 400
0. o oooo FLOA. P.
Example
5
|
19
