4 digit programmable universal instrument. dc voltmeter/ammeter,process monitor, ohmmeter,thermometer for pt 100/500/1 000,thermometer for ni 1 000, thermometer for,thermocouples displays for lin ,potentiometers.

Hide thumbs Also See for OM 402UNI:

Manual (88 pages)

Table Of Contents

Table of Contents

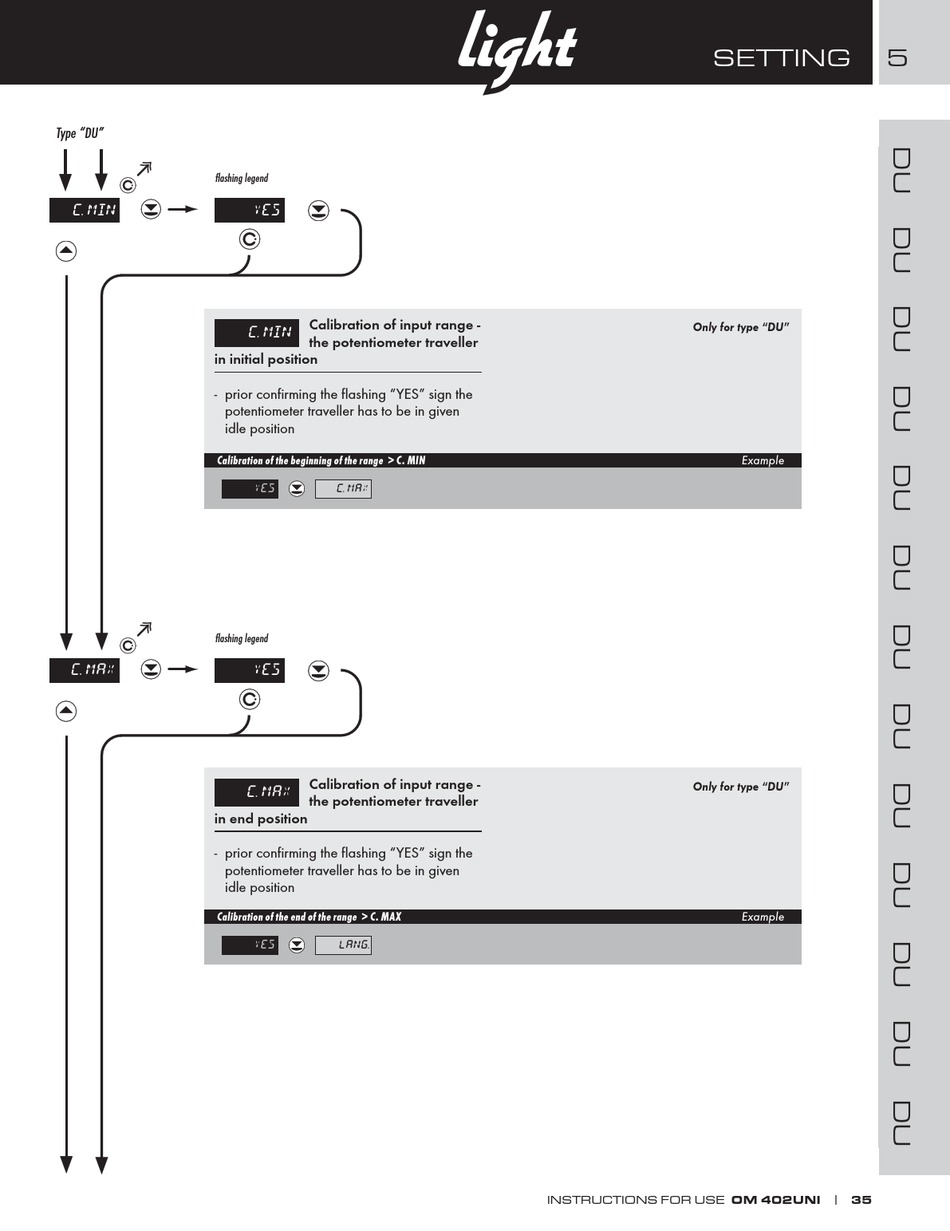

Type "DU"

flashing legend

C. MIN

in initial position

- prior confirming the flashing "YES" sign the

potentiometer traveller has to be in given

idle position

Calibration of the beginning of the range > C. MIN

flashing legend

C. MAX

in end position

- prior confirming the flashing "YES" sign the

potentiometer traveller has to be in given

idle position

Calibration of the end of the range > C. MAX

YES

Calibration of input range -

C. MIN

the potentiometer traveller

YES

C. MAX

YES

Calibration of input range -

C. MAX

the potentiometer traveller

YES

LANG.

light

INSTRUCTIONS FOR USE OM 402UNI

SETTING

Only for type "DU"

Example

Only for type "DU"

Example
