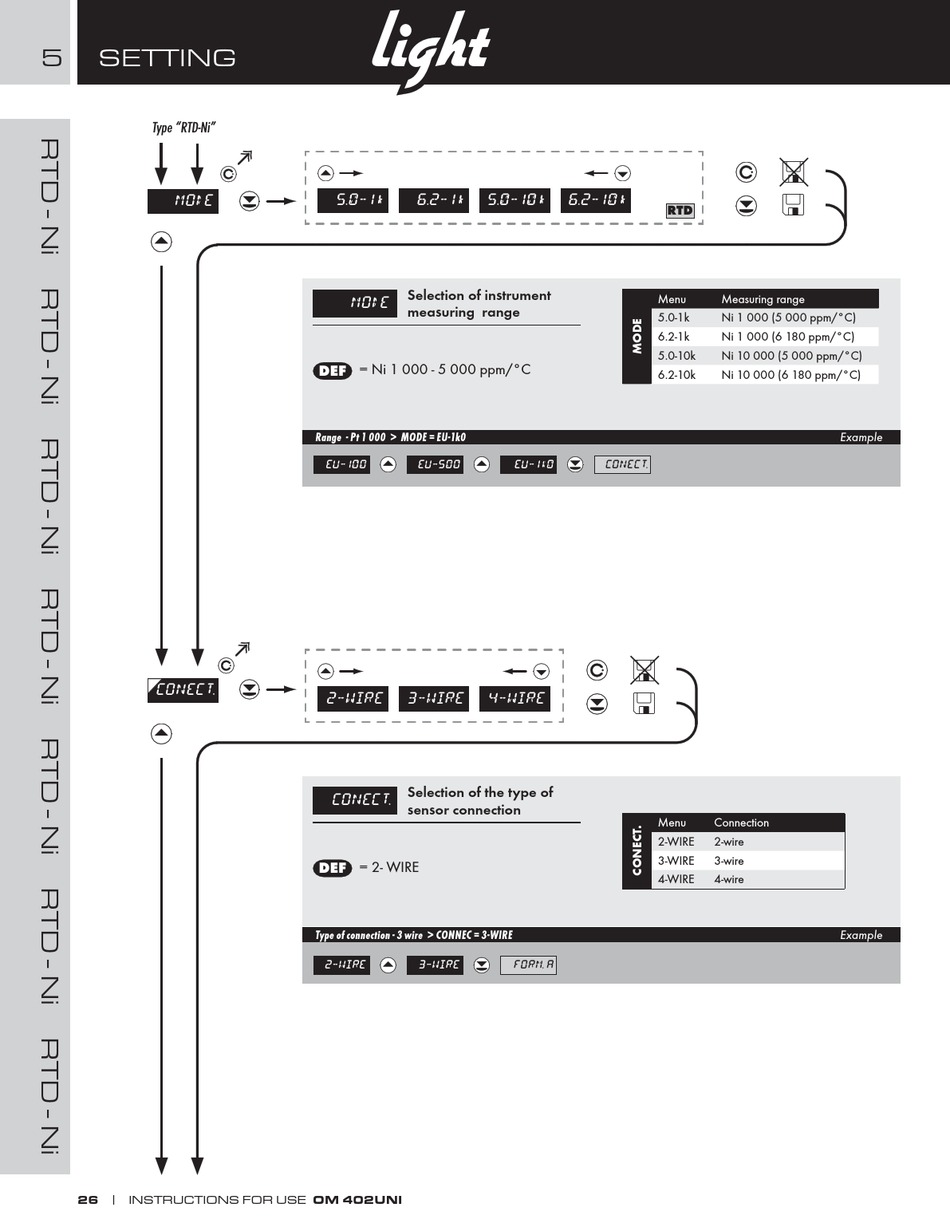

Orbit Merret OM 402UNI Manual page 26

5 SETTING
Type "RTD-Ni"
MODE
CONECT.
|
26 INSTRUCTIONS FOR USE OM 402UNI
light light
5. 0 -1k 6. 2 -1k 5. 0 -10k
Selection of instrument
MODE
measuring range
= Ni 1 000 - 5 000 ppm/°C
DEF
Range - Pt 1 000 > MODE = EU-1k0
EU-100 EU-500
2-WIRE 3-WIRE 4-WIRE
Selection of the type of
CONECT.
sensor connection
= 2- WIRE
DEF
Type of connection - 3 wire > CONNEC = 3-WIRE
2-WIRE 3-WIRE
6. 2 -10k
RTD
Menu
5.0-1k
6.2-1k
5.0-10k
6.2-10k
EU-1K0 CONECT.
Menu
2-WIRE
3-WIRE
4-WIRE
FORM. A
Measuring range
Ni 1 000 (5 000 ppm/°C)
Ni 1 000 (6 180 ppm/°C)
Ni 10 000 (5 000 ppm/°C)
Ni 10 000 (6 180 ppm/°C)
Example
Connection
2-wire
3-wire
4-wire
Example
