induSENSOR, EDS

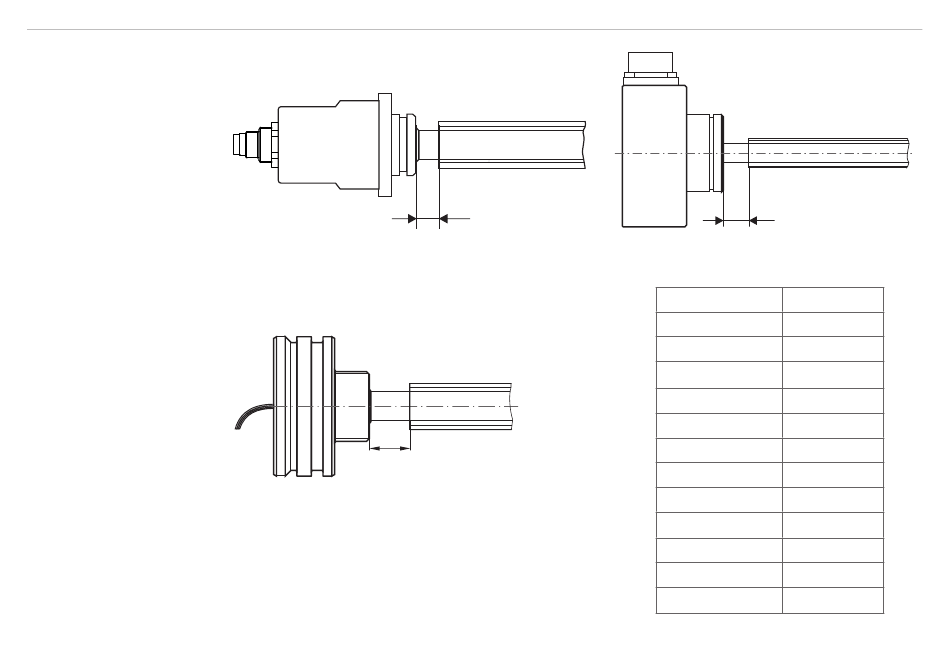

Fig. 2 Zero point of the measuring tube, EDS- ... -S
a
Fig. 4 Zero point of the measuring tube, EDS- ... -Z
Dimensions in mm, not to scale
a
a
Fig. 3 Zero point of the measuring tube, EDS- ... -F
Measuring range Dimension a
75
100
160
200
220
250
260
300
370
400
500
630
15 (0.59)
20 (0.79)
20 (0.79)
20 (0.79)
20 (0.79)
20 (0.79)
20 (0.79)
20 (0.79)
25 (0.98)
25 (0.98)
25 (0.98)
25 (0.98)
