SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, BACnet and Modbus.
By Pressing the "Set Communication" button from the main window for SW67672 (Fig. 2) the window
"Set Communication" appears (Fig. 3).
The window is divided in three sections, one for selecting the type of BACnet (in relation to the device
used), one for the BACnet parameters and the other for the Modbus parameters.
In the section "BACnet Type" is possible to select the type of BACnet to use from:
BACnet/IP (uses Ethernet);
BACnet MS/TP (uses RS485).
If selected "BACnet/IP" the means of the fields for "BACnet" are:
In the fields "IP ADDRESS" the IP address of BACnet/IP side of the converter is defined;
In the fields "SUBNET
In the fields "GATEWAY" the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "Port" the port used for BACnet communication is defined. The default port used for
BACnet communication is 47808, but is possible to insert any value (except 10000 and 10001);
In the field "BACnet Device
In the field "Device Identifier" the ID of BACnet/IP side of the converter is defined;
If the field "BACnet description up to 32
Objects can be up to 32 chars long;
If the field "Enable BBMD" is checked, the BACnet/IP Broadcast Management Device function is
enabled;
If the field "Accept FDR" is checked, the converter accepts the Foreign Device Registration.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask of BACnet/IP side of the converter is defined;
Name" the name of BACnet/IP side of the converter is defined;
chars" is checked, the description for the BACnet
User Manual BACnet Slave / Modbus Slave
Document code: MN67672_ENG Revision 1.100

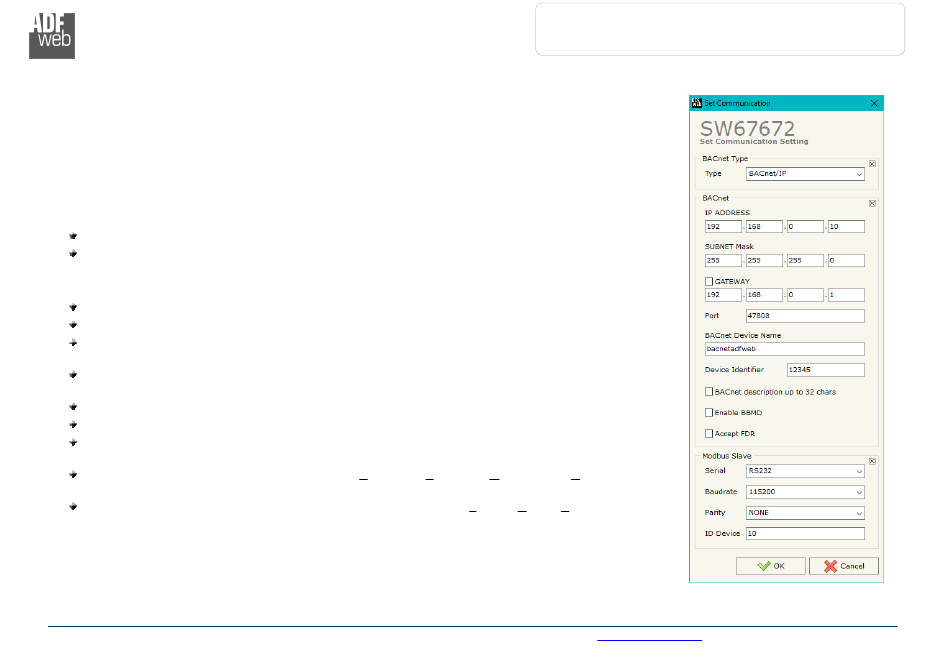

Figure 3: "Set Communication" window
