SET BDT ACCESS:
By Pressing the "Set BDT Access
appears (Fig. 6).
This table is used to readdress the broadcast messages to specific IP Addresses in the network.

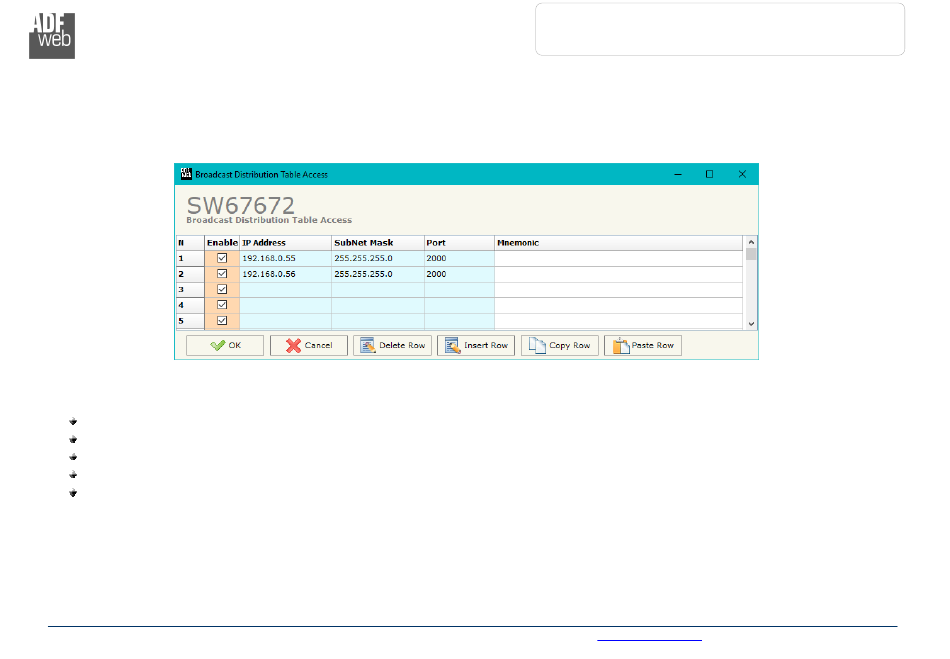

Figure 6: "BACnet Set Access" window
The meaning of the fields in the window are the follows:
If the field "Enable" is checked, the BDT rule is enabled;
In the field "IP Address" the IP Address to which address the broadcast message is defined;
In the field "SubNet Mask" the SubNet Mask to use is defined;
In the field "Port" the port to use is defined;
In the field "Mnemonic" a brief description is define.
BACNET EDE FILE:
By pressing the "BACnet EDE
inside the BACnet Master.
