LEDS (HD67672-IP-x-A1):

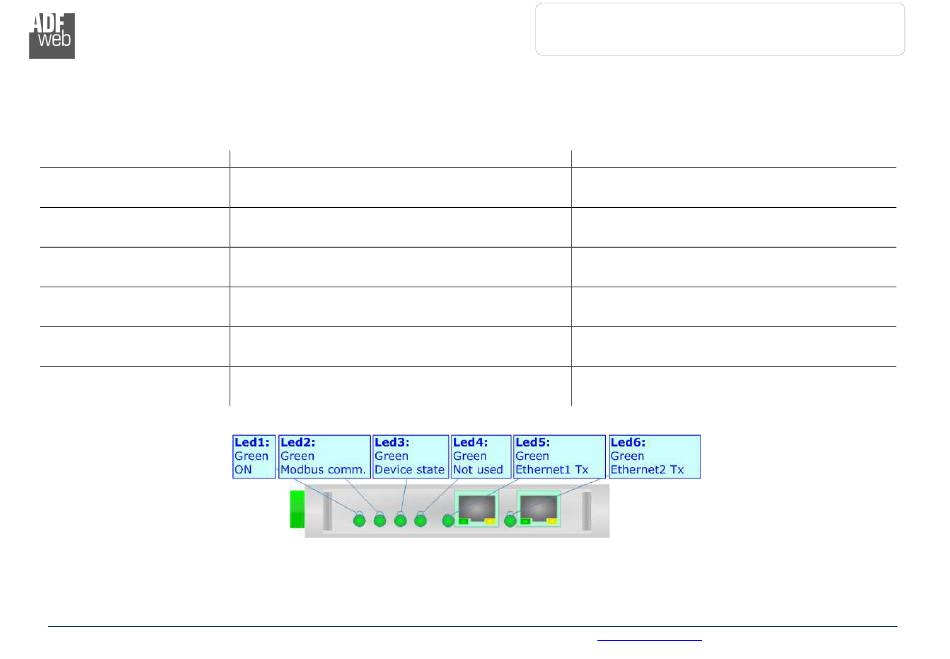

The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
2: Modbus comm.
3: Device state
4: Not used
5: Ethernet1 Tx
6: Ethernet2 Tx
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks when a Modbus request is received
Blinks slowly (~1Hz)
OFF
Blinks when is transmitting Ethernet frames
Blinks when is transmitting Ethernet frames
User Manual BACnet Slave / Modbus Slave
Document code: MN67672_ENG
Revision 1.100
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
