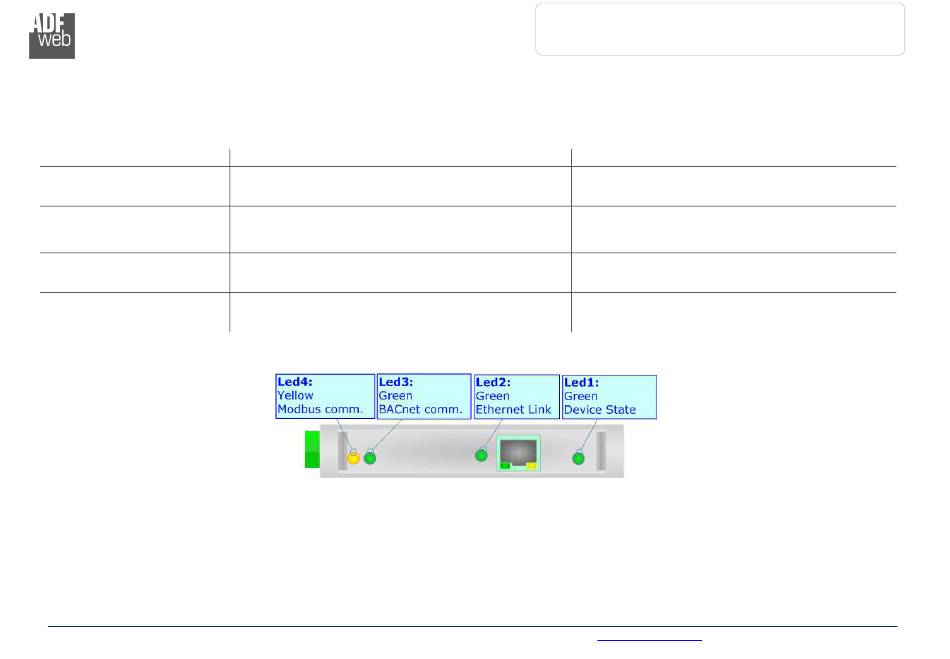

LEDS (HD67672-MSTP-x-A1):
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device state
2: Ethernet link
3: BACnet comm.
4: Modbus comm.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
ON: Ethernet cable inserted
OFF: Ethernet cable not inserted
Blinks when BACnet communication is running
Blinks when a Modbus request is received
User Manual BACnet Slave / Modbus Slave
Document code: MN67672_ENG Revision 1.100
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
