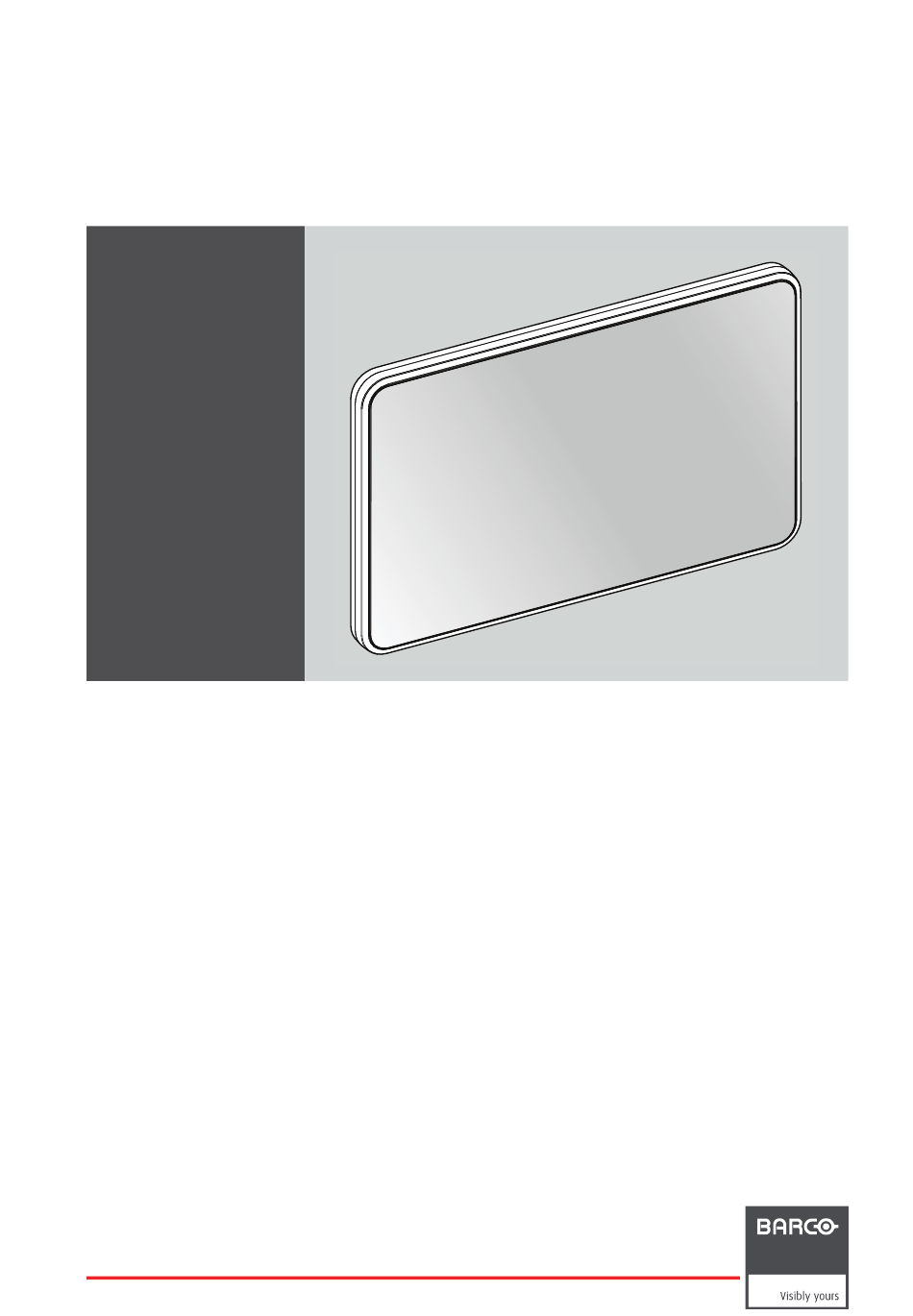

- Page 1 MUIP-2112 User Guide 12.5” LCD User Interface K5902132 (451920612532)/01 30/11/2017...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com Registered address: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com...
-
Page 3: Table Of Contents
Technical specifications ..................25 K5902132 (451920612532) MUIP-2112 30/11/2017... - Page 4 Table of contents K5902132 (451920612532) MUIP-2112 30/11/2017...
-
Page 5: Welcome
The internal battery capacity could maintain the unit to work for a time of about one hour, maximum. In the normal application of MUIP-2112 installed in a system on a VESA-arm or a desktop-support with power-supply and LAN-cables connected, the internal battery is constantly maintained at full-charge, and is not submitted to frequent charge-discharge cycles. -
Page 6: Product Overview

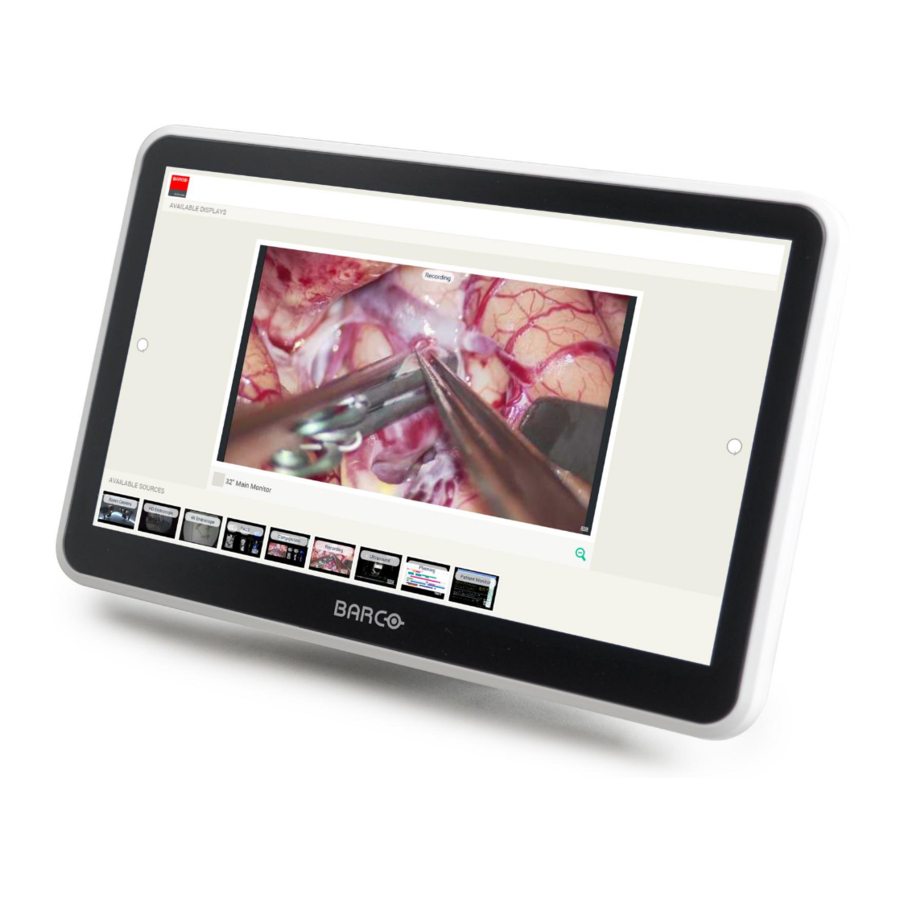

1. Welcome! Product overview Front Image 1-1 1. MUIP-2112 2. Power Button: Push short to turn the equipment ON/OFF. 3. Desktop support (optional) Back Image 1-2 K5902132 (451920612532) MUIP-2112 30/11/2017... - Page 7 9. Gigabit Ethernet Connector (LAN1) 10. Gigabit Ethernet Connector (LAN2) 11. Power jack input connector (range 12–24Vdc, nominal 19Vdc) 12. VESA 75 mm mounting screw holes (4x) 13. Strain-relief cable (only for optional closed rear cover version) K5902132 (451920612532) MUIP-2112 30/11/2017...
- Page 8 1. Welcome! K5902132 (451920612532) MUIP-2112 30/11/2017...
-
Page 9: Installation
Opening and closing the rear cover 1. Remove the two rubber-caps which cover the fixation screws. 2. Remove the two fixation screws and remove the rear cover from the MUIP-2112. Image 2-1 3. To properly close the rear cover, first route the cables as described in "Cable routing", page 8 . Install the rear cover and follow the above steps in reverse order. -
Page 10: Cable Routing
1. Connect the USB 3.0 connector to the USB 3.0 input. Image 2-4 Cable routing Open rear cover version The cables can be routed in two different ways: 1. Route the cables straight downwards (as shown below). K5902132 (451920612532) MUIP-2112 30/11/2017... - Page 11 Closed rear cover version (optional) 1. As the LAN and power cable are both enclosed by the strain-relief cable, which is routed through the square hole in the closed rear cover, no specific routing is needed. K5902132 (451920612532) MUIP-2112 30/11/2017...
-
Page 12: Desktop Support Installation (Optional)
2. Installation Image 2-7 Desktop support installation (optional) Orientation A desktop support may be included in the MUIP-2112 W00 package. This support can be installed in two different orientations, allowing to achieve a different angle of the display. Image 2-8 Installation 1. - Page 13 2. Installation Image 2-9 Image 2-10 K5902132 (451920612532) MUIP-2112 30/11/2017...
- Page 14 2. Installation K5902132 (451920612532) MUIP-2112 30/11/2017...
-
Page 15: Maintenance
3. Maintenance 3. MAINTENANCE Scheduled maintenance About The MUIP-2112 does not require any scheduled maintenance or calibration activities. In case of incon- sistencies, please contact Barco Healthcare. Cleaning Unplug the power cable from the mains power input before cleaning the ARNING display. - Page 16 Strong alkalis lye, strong solvents • Acid • Detergents with fluoride • Detergents with ammonia at higher concentration > 1.6% • Detergents with abrasives • Steel wool • Sponge with abrasives • Steel blades • Cloth with steel thread K5902132 (451920612532) MUIP-2112 30/11/2017...
-
Page 17: Important Information
Provide as much distance as possible between the electrosurgical generator and other electronic equip- ment (such as monitors). An activated electrosurgical generator may cause interference with this equip- ment and can disrupt the functionality of the display. K5902132 (451920612532) MUIP-2112 30/11/2017... - Page 18 Moisture may condense on the surface or inside of the equipment, or create a mist residue inside the protection plate. This is not a malfunction of the product itself, although it may cause damage to the equipment. K5902132 (451920612532) MUIP-2112 30/11/2017...
- Page 19 When you transport the equipment, hold it firmly in both hands. If you drop the equipment, you may be injured or the equipment may be damaged. When you transport the equipment for repair or shipment, use the original cardboard box and packing materials. K5902132 (451920612532) MUIP-2112 30/11/2017...
- Page 20 Batteries • This device uses an RTC battery (Mod. CR-2032) and a Lithium Ion battery pack (Mod. BN2012350- 001LPA-01). Both batteries are not user-replaceable. Do not attempt to replace them, contact Barco authorized repair facilities. • Batteries used with this equipment have been tested for compatibility and should only be replaced with approved parts.
-
Page 21: Environmental Information
If the MUIP-2112 is integrated as component in a medical-equipment provid- ing life-support, the user-integrator shall provide the necessary precautions to avoid possible damage, injury or harm to the patients. The MUIP-2112 has no essential per- formances and the provided Windows OS is not a class-A software. - Page 22 Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
-
Page 23: Biological Hazard And Returns
Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environ- ment-friendly use period of electronic information products” of Chinese Mainland. -
Page 24: Regulatory Information
Regulatory information Indications for use MUIP-2112 is intended to be used as a computing and display platform for third party software applications that provide a user interface for controlling medical systems via an Ethernet connection. The equipment is intended to be used for surgical applications in CathLab Examination Rooms & Control Rooms, Surgical Rooms and Hybrid Operating Rooms, both inside and outside the patient area. - Page 25 Indicates the temperature limitations for the device to safely operate within specs. Indicates the device serial number Indicates the device part number or catalogue number 1. Values for xx and yy can be found in the technical specifications paragraph. K5902132 (451920612532) MUIP-2112 30/11/2017...
- Page 26 Indicates the weight of the box and that it should be carried with two persons. xx-yy xx-yy Kg xx-yy Indicates that the box should not be cut with a knife, a cutter or any other sharp object. K5902132 (451920612532) MUIP-2112 30/11/2017...
-
Page 27: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. - Page 28 312 x 200 x 37 mm Dimensions (W x H x D) Identification label position The product identification label is located at the back of the MUIP-2112 as illustrated below. Image 4-1 Code number (12NC) : (Model No.) Serial, number: AN00yyww000000...
- Page 29 4. Important information • AN = Original code (FIMI) • 00 = Technical level • yy = Year • ww = Week (01 to 52) Manufacturer-Date • 000000 = 6–digits progressive number K5902132 (451920612532) MUIP-2112 30/11/2017...
