SINTERIT Lisa Pro Shortened User Manual page 4

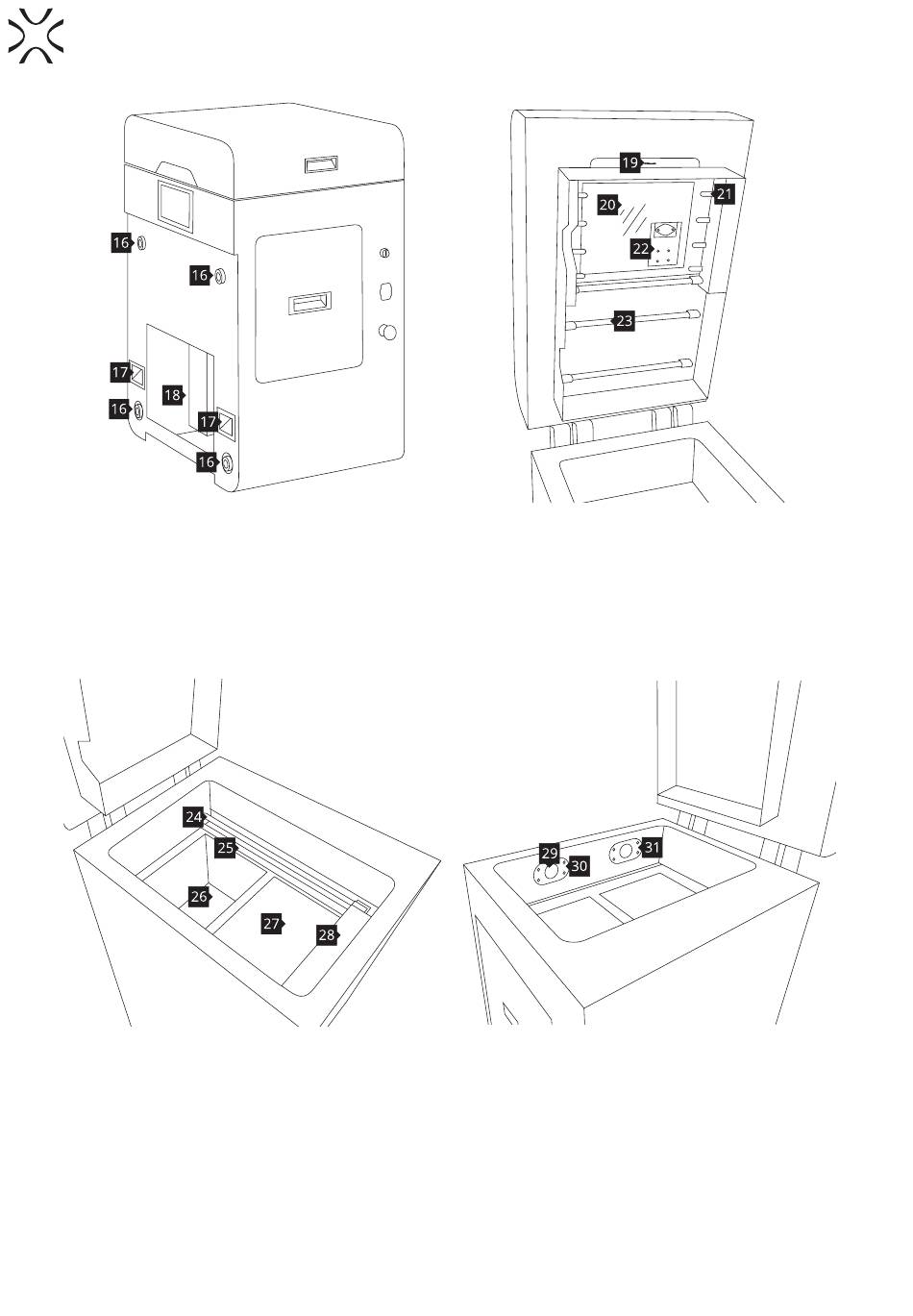

Image 4. View of the printer's heater module.
Image 3. View of the printer without front panel.
19.Split pin / 20.Laser protective glass / 21.Infrared
16.Magnetic fasteners / 17.Handles / 18.Easy access
heaters (short, white) four psc. on each side / 22.Laser
to the space under Beds
system / 23.Infrared heaters (long, red)
Image 5. Front view of the printer's inner chamber.
Image 6. Back view of the printer's inner chamber.
24.Recoater's slide guide / 25.Recoater's transmission
29.Embedded camera (captures image from the PRINT
cables: short (replaceable) and long / 26.Feed Bed /
BED) / 30.Print Bed pyrometer / 31.Feed Bed pyrometer
27.Print Bed / 28.Recoater
4 | Sinterit Lisa PRO USER MANUAL (short version)
