Micros Pc Workstation 2015 Connectors - Oracle MICROS 700 Series Site Preparation Manual

Table 9-1
Features
Case Style
Case Material
Weight
Physical Dimensions
Optional Customer
Displays (Series 1)
Cash Drawers
COM Ports
USB Ports
Powered USB Ports
LAN Interface
AC Input Voltage
Input Power
BTU/Hour
Operating
Temperature
Storage Temperature -25°C (-13°F) to 80°C (176°F)

MICROS PC Workstation 2015 Connectors

The figure below shows the PC Workstation 2015 Modular COM ports.
Figure 9-2
(Cont.) PC Workstation 2015 Features
Specifications
Standard Low Profile or Optional Adjustable Stand
PC-ABS Plastic
13.2 lbs. (6.0 kg), Shipping Weight 17.6 lbs. (7.9 kg)
See Appendix A
Integrated or Pole 240x64 STN Graphics LCD Integrated or Pole
Protégé Customer Display System
2 MICROS 4-Pin DIN Connectors - +12V or +24V selectable in BIOS.
• 1 DB9 RS232 Serial (COM1 - Powered (5V, 9V, or 12V -
Selectable in BIOS)
• 1 DB9 RS232 Serial (COM2 - Non Powered)
• 1 Modular RS232 (COM5)
• 1 Combination RS232/RS422 (COM4)
Four USB 2.0 Ports
• Two MICROS Powered USB Ports
• USB5 (+5V, +12V, +24V) - USB6 (+5V, +12V)
10/100/1000 Mbps Ethernet - RJ45
Universal Input - 85 to 264VAC, 47 to 63Hz.
35W Typical
120 Typical, 290 Maximum
0°C (32°F) to 45°C (113°F), 90% relative humidity max.

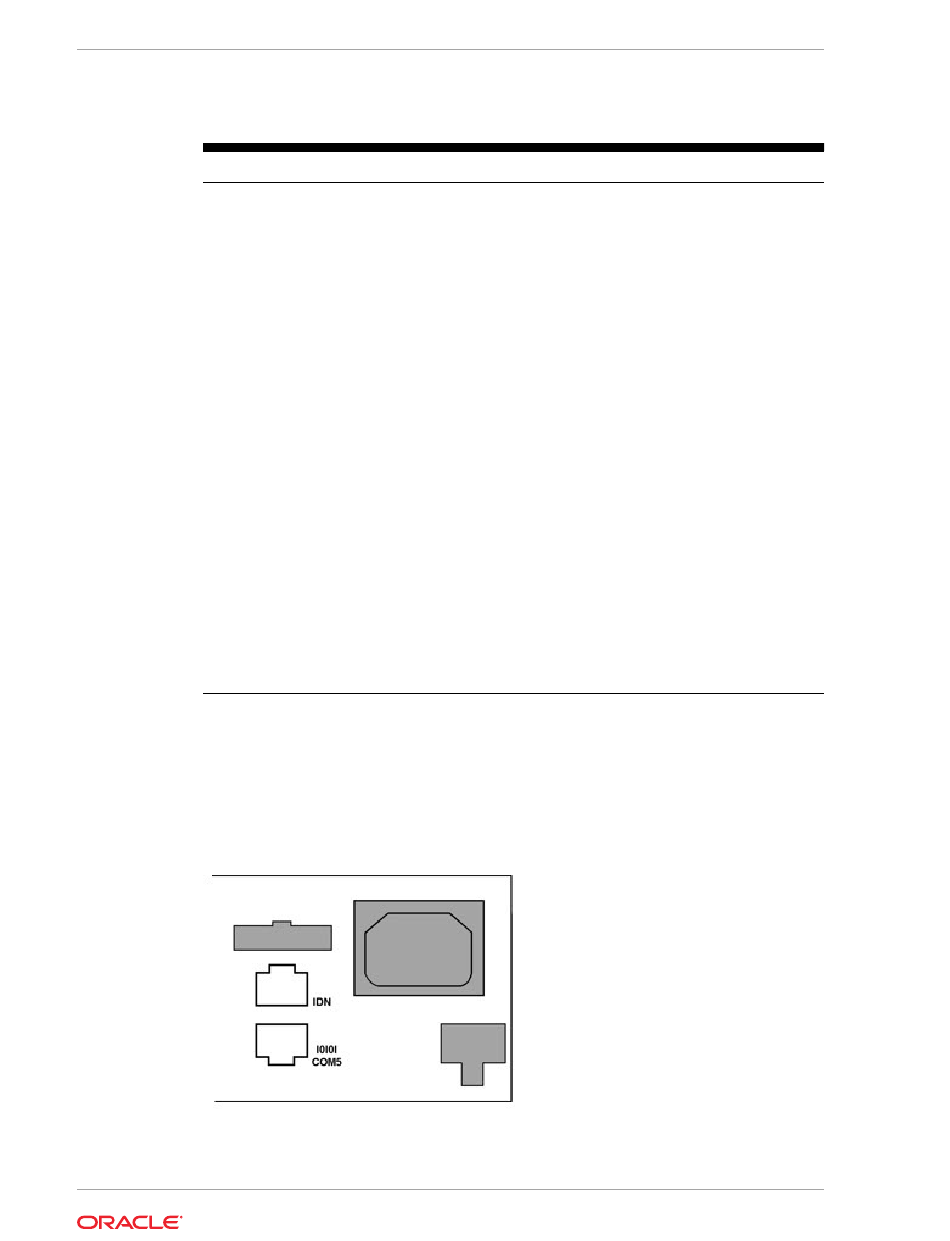

PC Workstation 2015 I/O Panel Modular Connectors
MICROS PC Workstation 2015 Connectors
