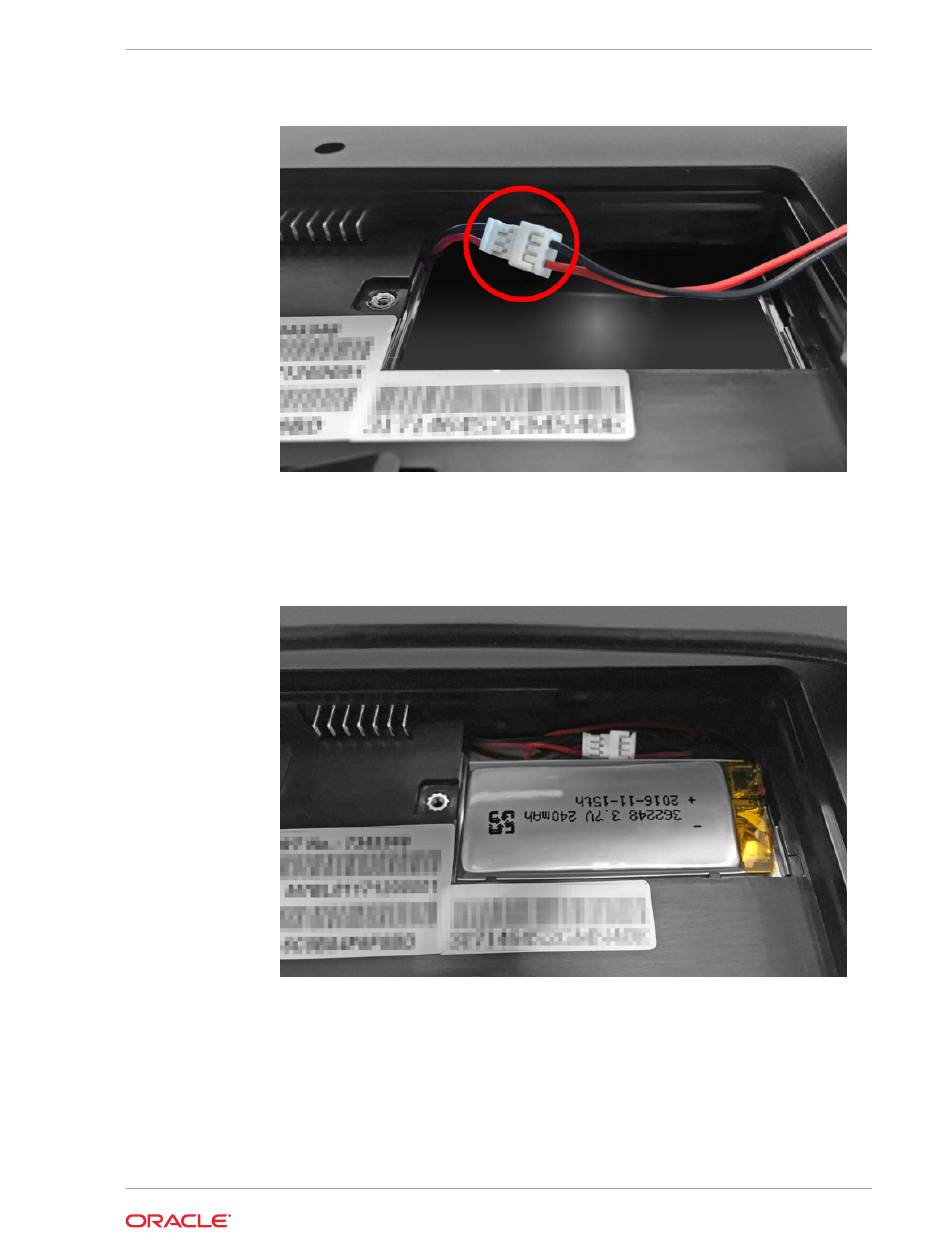

Figure 3-7 Battery Connector Cable
Connect the replacement battery. Tuck the excess battery wire into the casework
5.
and place the battery in the battery compartment.
Figure 3-8 The Bridge Battery in the Battery Compartment
Reinstall the battery cover and hand-tighten the screw.
6.
(Optional) Attach the CBR sticker inside the battery bay. The CBR sticker helps
7.
identify tablets whose bridge batteries have been replaced.
Reinstall the main battery.
8.
Replacing the Bridge Battery in the MICROS Tablet 720
