Cash Drawer 1 And 2 Connectors - Oracle MICROS 700 Series Site Preparation Manual

Figure 30-4

Cash Drawer 1 and 2 Connectors

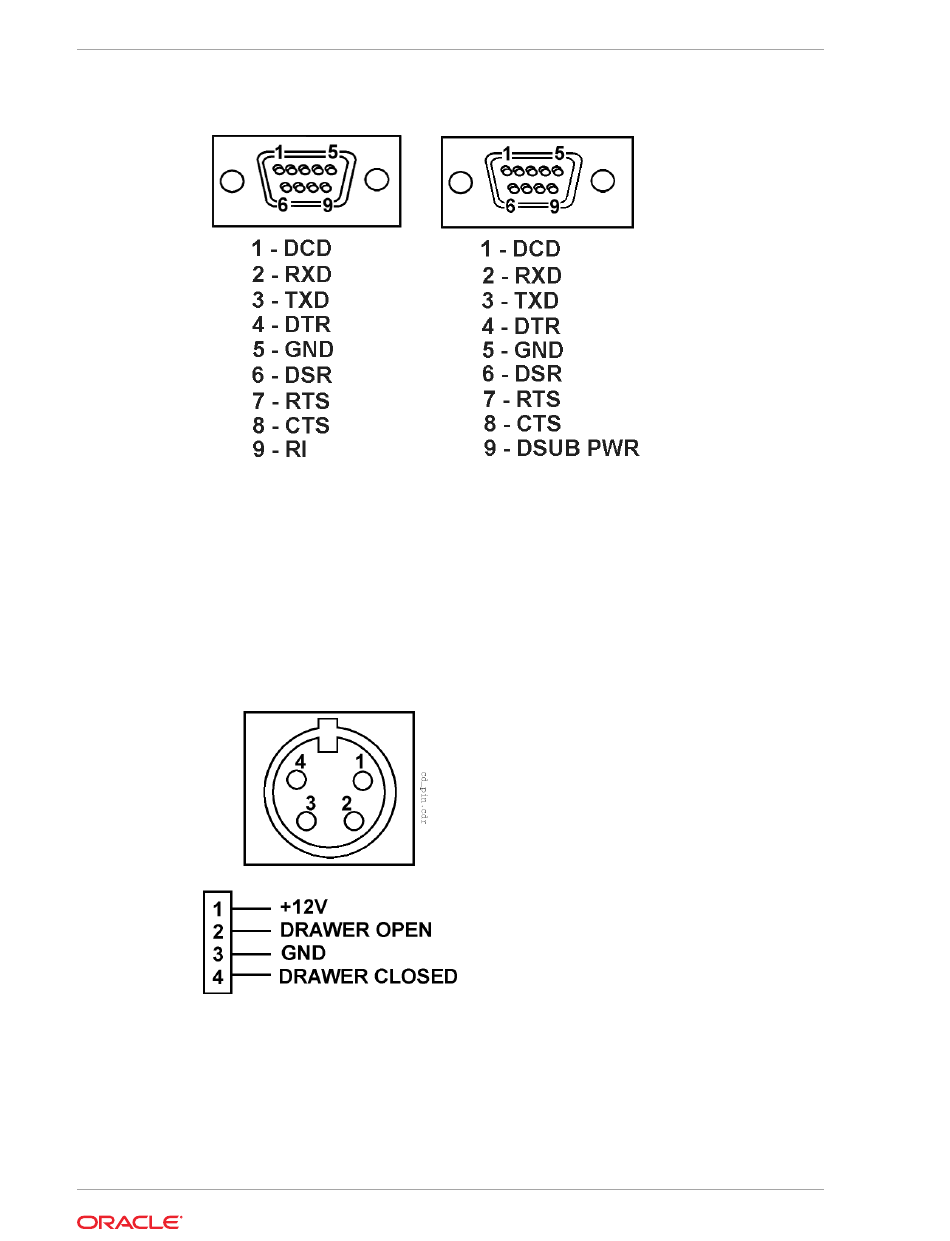

All MICROS Workstations contain a pair of the connectors shown in the figure below.
Figure 30-5
The Series 2 Cash Drawer connector is an 8-pin Mini-IDN. This pair of Cash Drawer
connectors is used by the Workstation 6 and the Base Station.
RS232 DB9 Connector
MICROS 4-Pin DIN Cash Drawer Connectors
