Figure 7-2
•

MICROS Base Station Features

• MICROS Base Station Connectors
MICROS Base Station Features
Table 7-1
Feature
Display
Case Style
Weight
Physical Dimensions
Optional Customer Display (Series 2)
Serial Ports

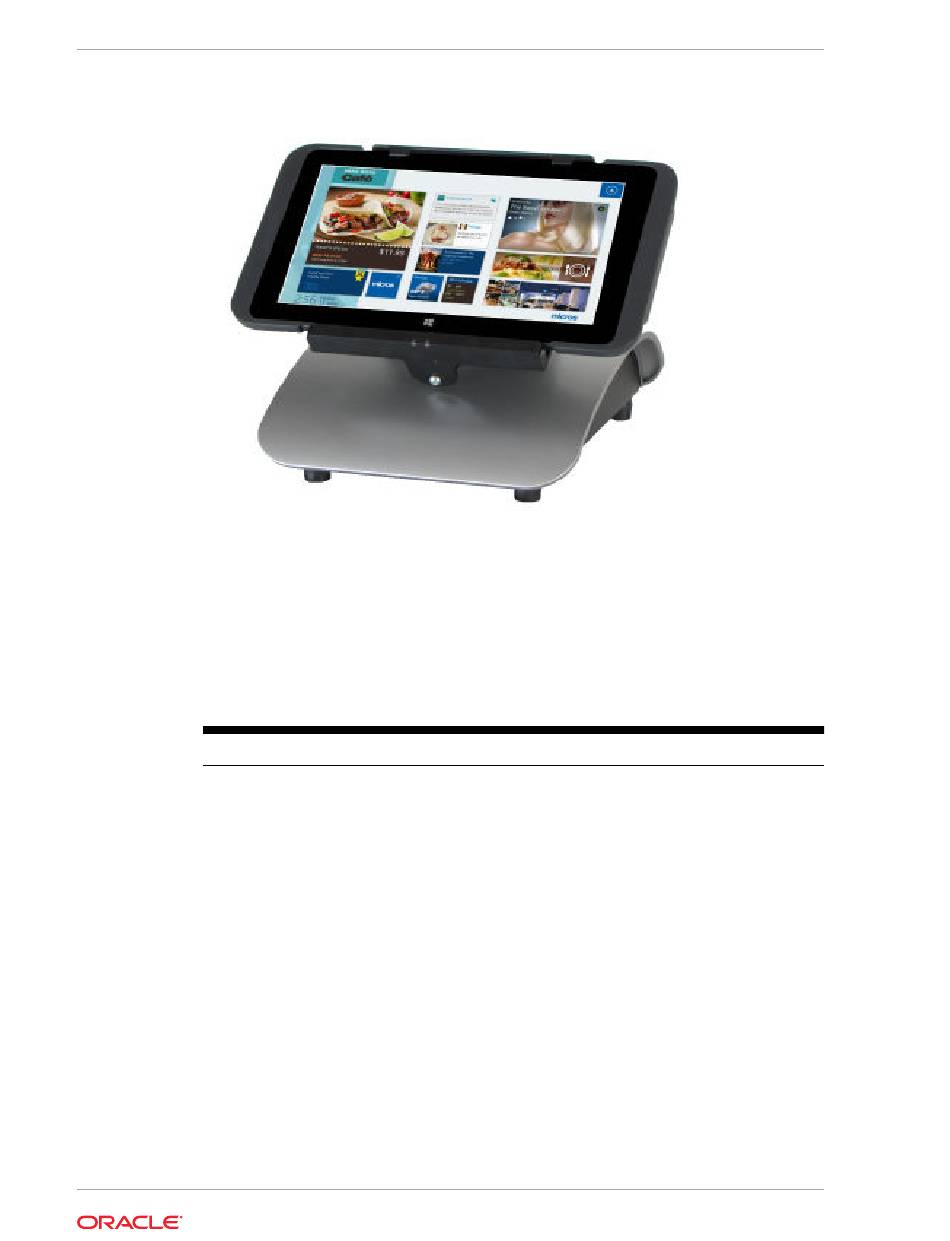

MICROS Tablet E-Series Base Station
MICROS Base Station Features
MICROS Base Station Features
Specifications
MICROS Tablet R-Series or Tablet E-Series
11
Supports Tablet in Left-or-Right Landscape or
Portrait mode
/w Tablet: 2.60 kg (5.75 lb.)
/w Tablet and Optional Smart Battery: 3.08 kg
(6.80 lb.)
See Appendix A
Integrated or Pole 240x64 STN Graphics LCD
Integrated 2x20 LCD
Protégé Pole Customer Display System
• 2 DB9 Powered RS232 /w handshake
– COM1 (5V/9V/12V User Selectable)
– COM2 (12V)
• 1 Modular RS232 Serial /w handshake
(COM5)
• 1 Modular IDN Serial (RS232 or RS422)
• 1 Customer Display Port
