Evaluating Performance with the ADCPro Software
9.1.2

Clocks Tab

The next tab is the Clocks tab, as shown in
ADS1256EVM. Enter the master clock frequency in the Clock In window. The clock source can be
selected from between the EVM onboard crystal and the MMB0. The DO/CLKOUT rate can be set by the
Clock Out Rate pull-down menu. There are options to set CLKOUT to f
32
ADS1256EVM and ADS1256EVM-PDK
Figure 31. This tab controls the master clock of the

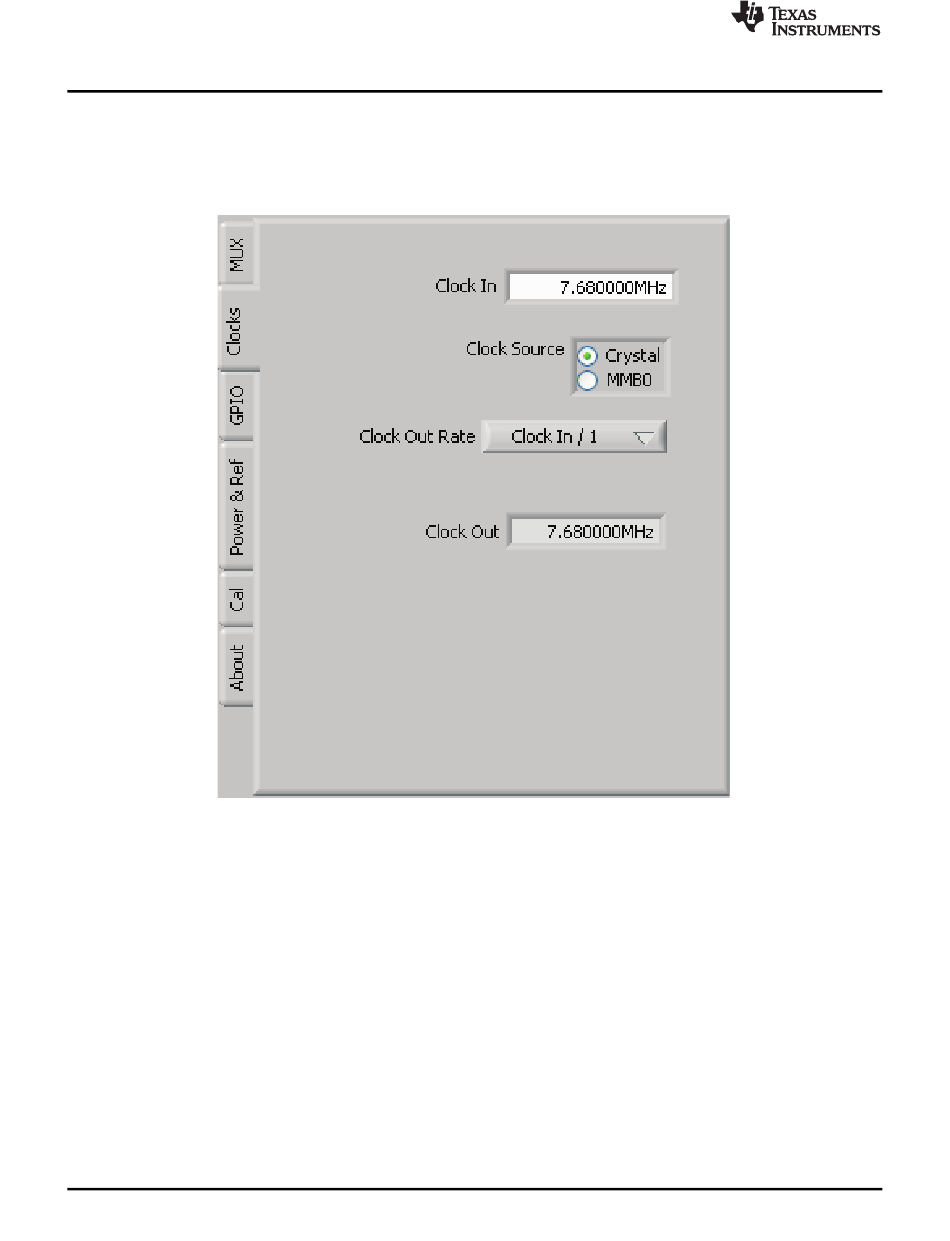

Figure 31. Clocks Tab
Copyright © 2003–2018, Texas Instruments Incorporated
, f /2, f
CLKIN CLKIN CLKIN
SBAU090E – November 2003 – Revised November 2018
Submit Documentation Feedback
www.ti.com
/4, or to turn it off.
