www.ti.com
9.1.1
MUX Tab
The first tab of the ADS1256EVM plug-in is the MUX tab. In the tab, two columns of push buttons are
used to select the positive and negative inputs for ADS1256. This selection, combined with switches S1
and S2, selects the measurement for the inputs applied to the analog interface J1. The MUX tab is shown
in
Figure
30.
SBAU090E – November 2003 – Revised November 2018
Submit Documentation Feedback

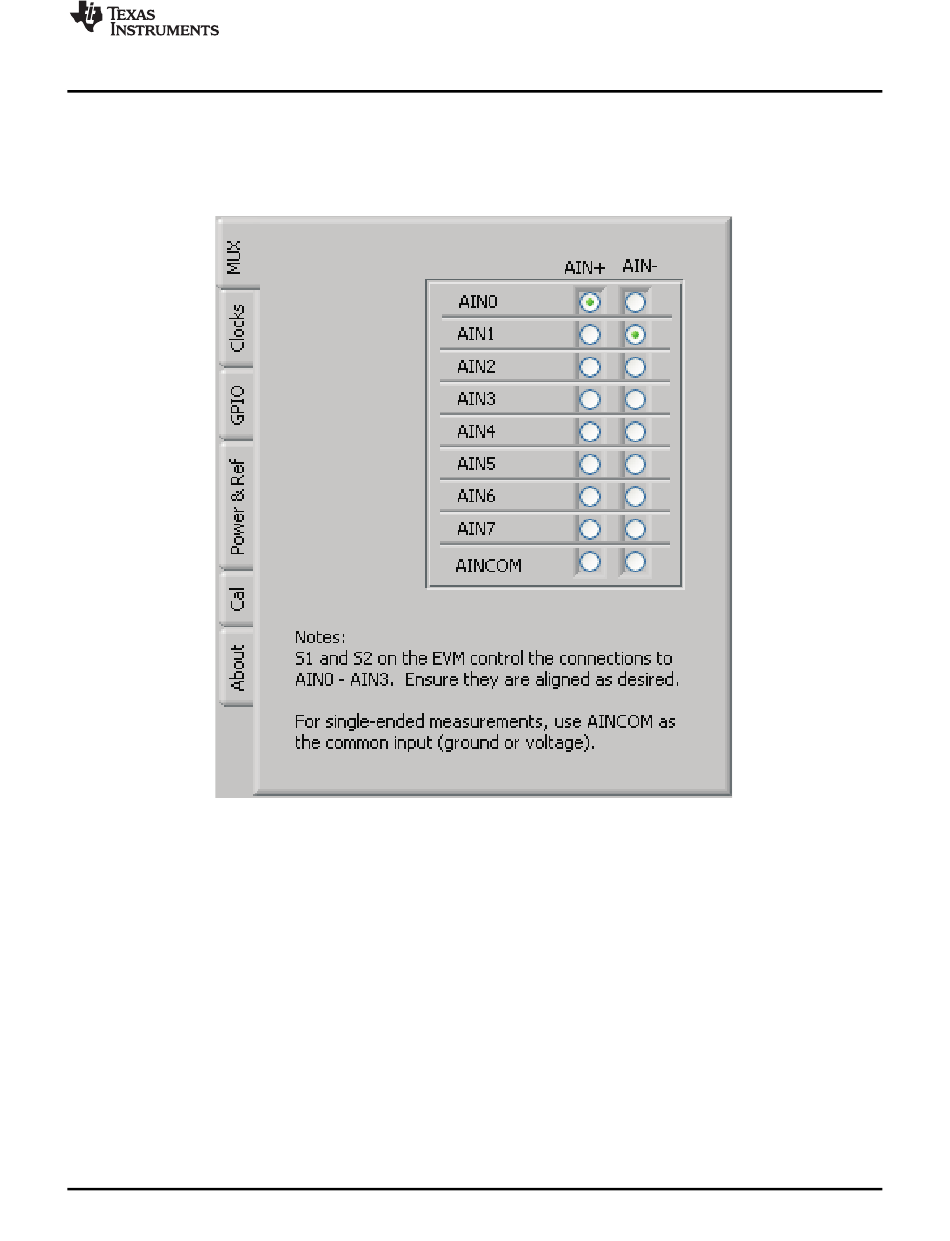

Figure 30. MUX Tab
Copyright © 2003–2018, Texas Instruments Incorporated
Evaluating Performance with the ADCPro Software
ADS1256EVM and ADS1256EVM-PDK
31
