ADS1256EVM-PDK Kit Operation
space
2. Select ADS1256EVM from the EVM drop-down menu. The ADS1256EVM-PDK plug-in appears in the
left pane, as Figure 22
3. The ADS1256EVM-PDK plug-in window has a status area at the top of the screen. When the plug-in is
first loaded, the plug-in searches for the board. You will see a series of messages in the status area
indicating this action.
4. If you have not yet loaded the operating system drivers, Windows will display the Windows Install New
Driver Wizard sequence (illustrated in
NOTE: During the driver installation, a message may appear indicating the firmware load has
TIMED OUT. Click OK and continue driver installation. The plug-in will attempt to download
the firmware again once the driver installation completes.
26
ADS1256EVM and ADS1256EVM-PDK
shows.

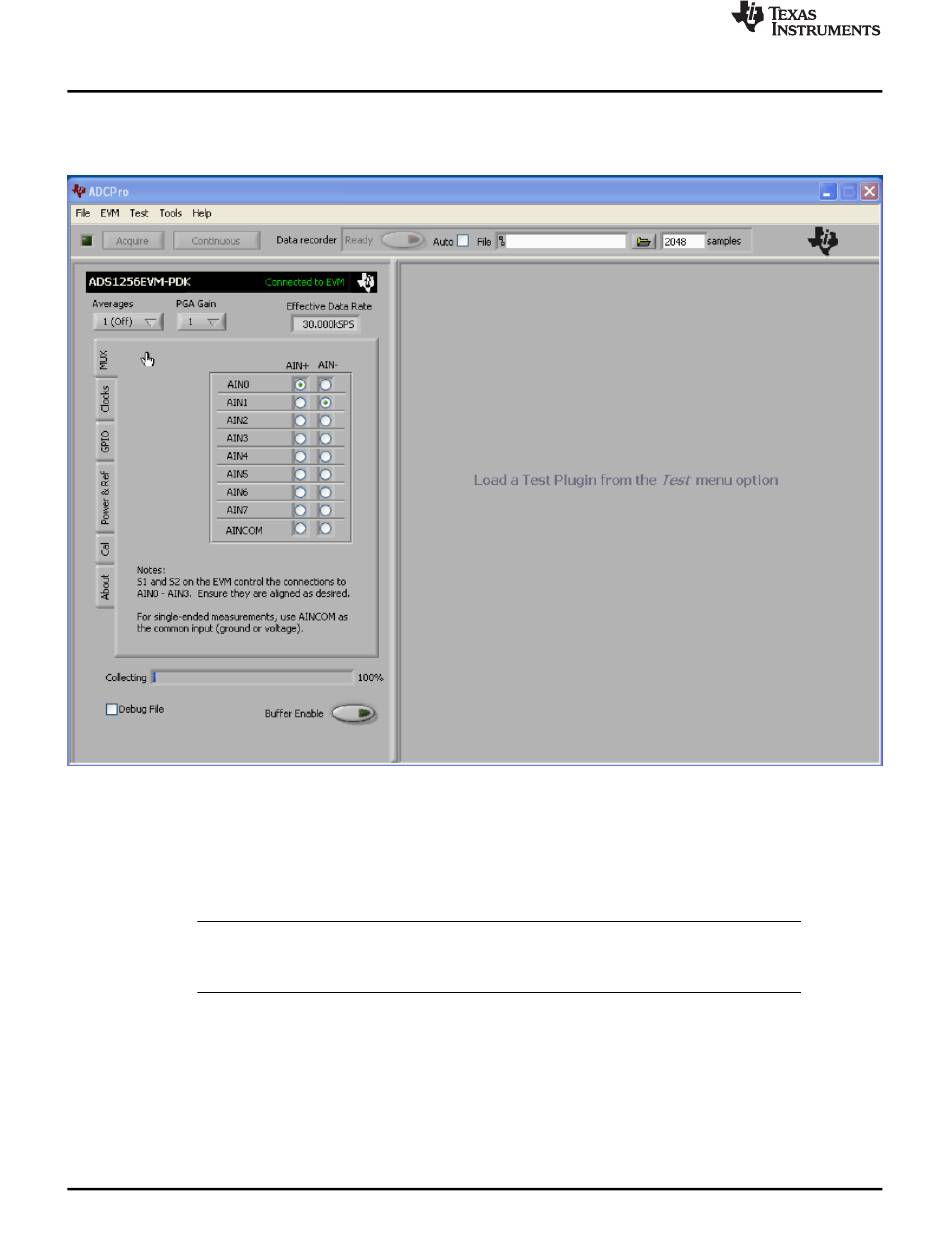

Figure 22. ADS1256EVM-PDK Plug-In Display Window
Figure 23
