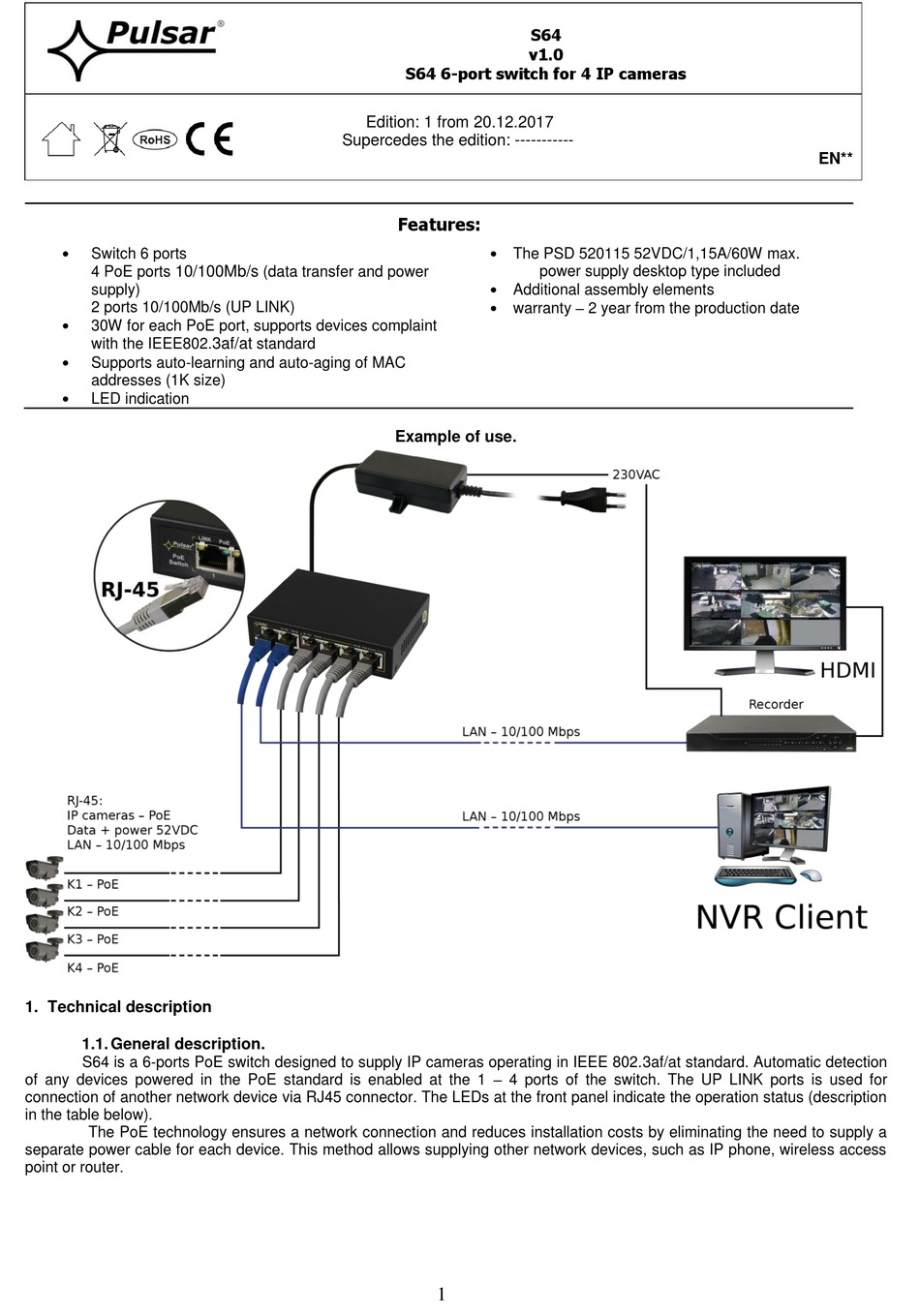

Pulsar S64 Manual


Switch 6 ports
10/100Mb/s (data transfer and power
4 PoE ports
supply)
2 ports 10/100Mb/s (UP LINK)

30W for each PoE port, supports devices complaint
with the IEEE802.

Supports auto-learning and auto-aging of MAC
addresses (1K size)

LED indication
1. Technical description
1.1. General description.
S64 is a 6-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard. Automatic detection
of any devices powered in the PoE standard is enabled at the 1 – 4 ports of the switch. The UP LINK ports is used for
connection of another network device via RJ45 connector. The LEDs at the front panel indicate the operation status (description
in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
Edition: 1 from 20.12.2017
Supercedes the edition: -----------
3af/at standard
S64
v1.0
S64 6-port switch for 4 IP cameras
Features:
 The PSD 520115 52VDC/1,15A/60W max.
power supply desktop type included
 Additional assembly elements
 warranty – 2 year from the production date
Example of use.
1
