Pulsar SG64H Manual

Pulsar SG64H Manual

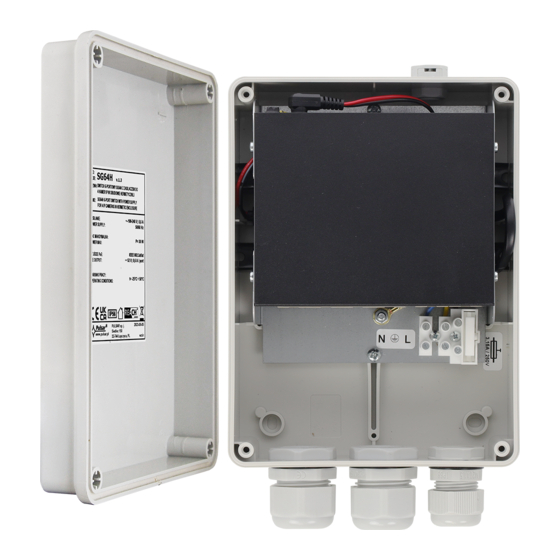

6-port switch with power supply for 4 ip cameras in hermetic enclosure

Advertisement

Quick Links

Switch 6 ports
4 PoE ports 10/100/1000 Mb/s (data transfer and
power supply)
2 ports 10/100/1000 Mb/s (UpLink)
30 W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard
Supports auto-learning and auto-aging of MAC
addresses (1K size)
Pole mounting option (requires OZB2 adapter -
optional accessory)
1. Technical description
1.1. General description.
SG64H is a 6-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard. Automatic
detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 4 ports of the switch. The UpLink ports is
used for connection of another network device via RJ45 connector. The LEDs at the front panel indicate the operation status
(description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
SG64H 6-port switch with power supply for 4 IP cameras
in hermetic enclosure
Edition: 5 from 11.05.2023
Supercedes edition: 4 from 04.10.2019
Features:
 Built-in switch mode power supply PSCL520115
52 V DC/1,15 A/60 W max, a set includes
 Protections:
 LED indication
 warranty – 1 year from production date

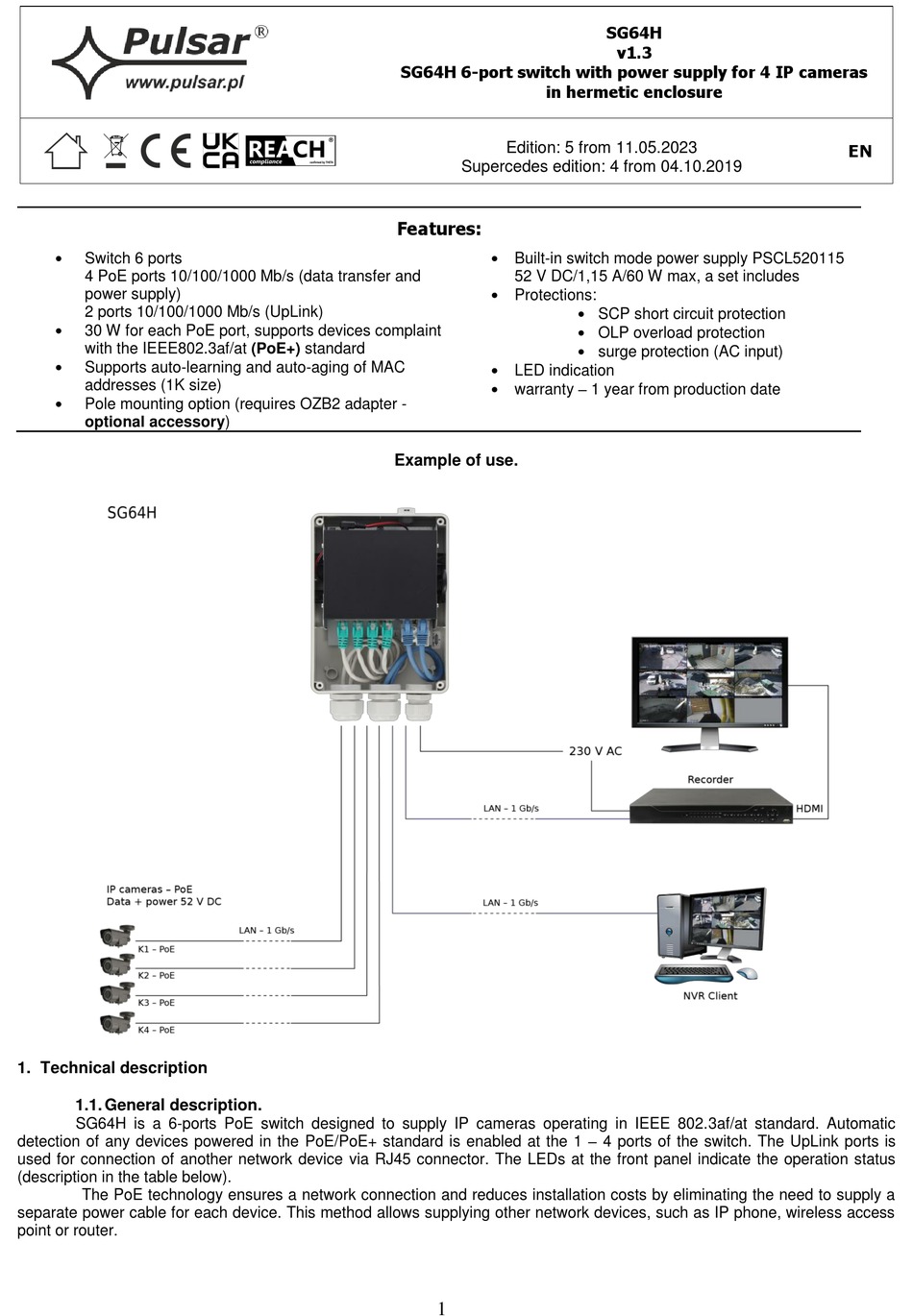

Example of use.
1
SG64H
v1.3
 SCP short circuit protection
 OLP overload protection
 surge protection (AC input)
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the SG64H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pulsar SG64H

  • Page 1 1.1. General description. SG64H is a 6-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard. Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 4 ports of the switch. The UpLink ports is used for connection of another network device via RJ45 connector.
  • Page 2 1.2 Block diagram. Fig. 1. Block diagram. 1.3. Description of components and connectors. Table 1. (see Fig.2) Element no. Description (Fig. 2) Pressure Compensator PoE switch Power supply connector of the PSU – L, N Protective connector fuse in the supply circuit (~230 V) MAINS Cable glands Fig.
  • Page 3 Table 2. (see Fig. 3) Element no. Description (Fig. 2) 2 x UpLink ports 4 x PoE ports (1÷4) DC power supply socket Fig. 3. The view switch'a. 1.4. Technical parameters.
  • Page 4 Table 3. Specifications. 6 ports 10/100/1000 Mb/s (4 x PoE + 2 x UpLink) Ports with auto negotiation of connection speed, auto MDI/MDIX crossover PoE supply IEEE 802.3af/at (1÷4 ports), 52 V DC / 30 W at each port * Protocols, Standards IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP Capacity...
  • Page 5 It is required to install in the supply circuits, in addition to power supply, circuit breaker with 6 A nominal current. 1. Mount device and feed connection wires through glands and filler inserts. Then tighten the glands (unused ones should be blanked off).
  • Page 6 Waste electrical and electronic equipment must not be disposed of with normal household waste. According to European Union WEEE Directive, waste electrical and electronic equipment should be disposed of separately from normal household waste. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel.
