Pulsar S64-B17 Manual

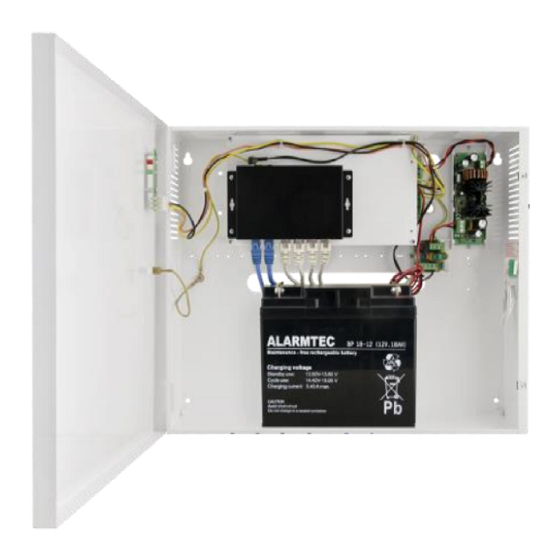

6-port switch with buffer power supply for 4 ip cameras
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Uninterruptible power supply of 4 IP cameras (52 V DC)
Switch 6 ports
4 PoE ports 10/100 Mb/s
(data transfer and power supply)
2 ports 10/100Mb/s (UP LINK)
30 W for each PoE port, supports devices complaint with
the IEEE802.3af/at (PoE+) standard
Approximate backup time: 5h 30min
CONTENTS
2.1 Requirements
S64-B17 6-port switch with buffer power supply
for 4 IP cameras
Edition: 3 from 14.02.2019
Supercedes the edition: 2 from 01.03.2018
Features
:

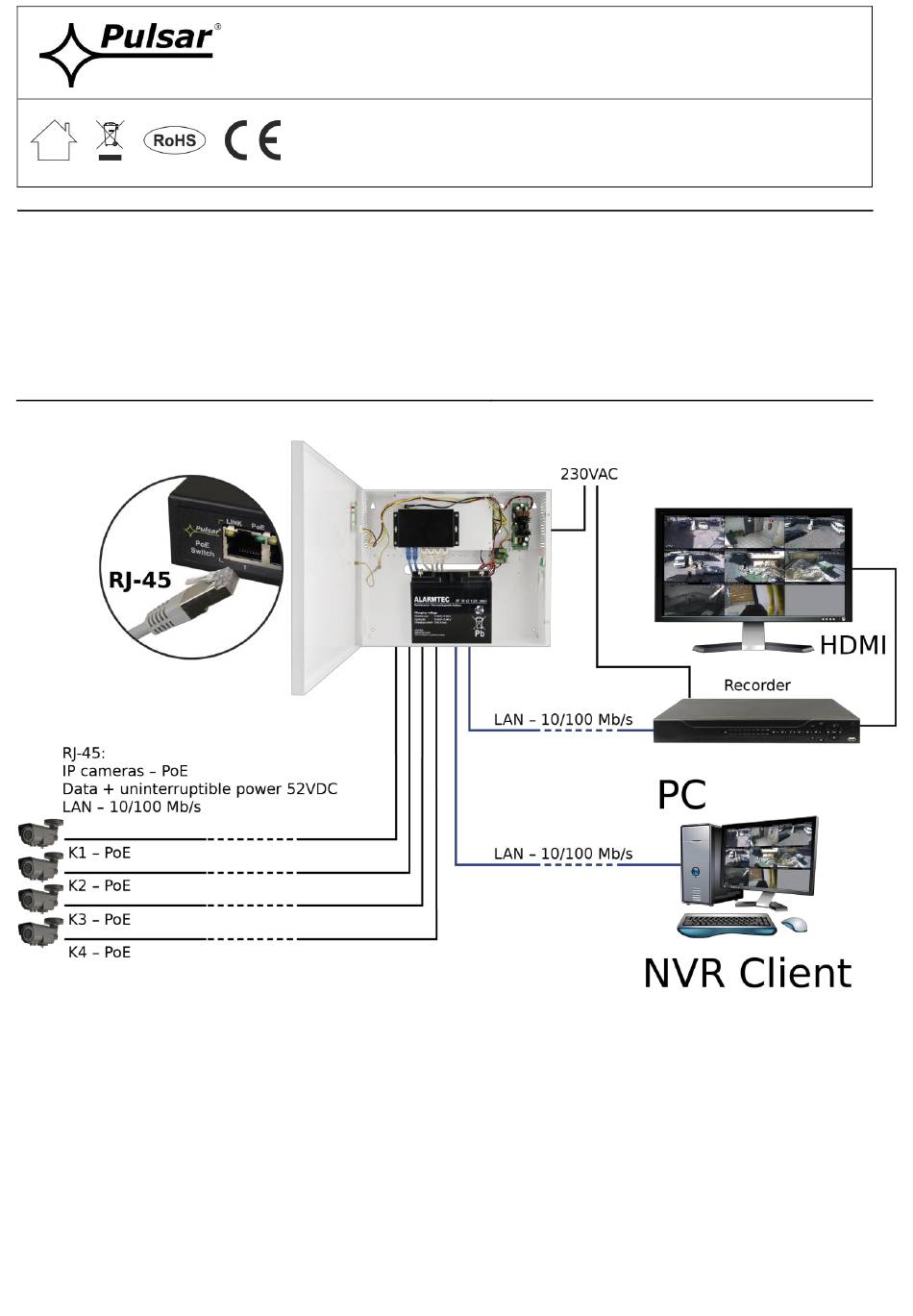

Example of use.
1
S64-B17
v1.2
Metal enclosure - color white RAL 9003
with battery space for a 17 Ah/12 V battery
Supports auto-learning and auto-aging of
MAC addresses (1K size)
warranty - 2 year from the production date
PL
EN**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S64-B17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar S64-B17

Summary of Contents for Pulsar S64-B17

  • Page 1: Table Of Contents

    S64-B17 v1.2 S64-B17 6-port switch with buffer power supply for 4 IP cameras Edition: 3 from 14.02.2019 Supercedes the edition: 2 from 01.03.2018 EN** Features   Metal enclosure – color white RAL 9003 Uninterruptible power supply of 4 IP cameras (52 V DC) ...

  • Page 2: Technical Description

    (front panel). The S64-B17 is fitted with two LEDs on the front panel (red LED – indicates the presence of 230 V AC supply voltage, green LED indicates the presence of DC voltage).

  • Page 3: Description Of Components And Connectors

    1.3 Description of components and connectors. Fig. 2. The enclosure view. Table 1. (See Fig. 2) Component No. Description (Fig. 2) Switch PoE Switch mode buffer power supply unit DC/DC52115 converter Output filter Tamper – micro switch (terminals) of tamper protection (NC) Battery space for a 17 Ah/12 V battery Power supply connector of the PSU –...

  • Page 4: Technical Parameters

    Table 2. (See Fig.3) Component No Description (Fig. 3) 2 x UP LINK port 4 x PoE port (1÷4) 52 V DC power supply socket 1.4 Technical parameters - parameters of the switch (tab.3) - electrical parameters (tab.4) - mechanical parameters (tab.5) - operation safety (tab.6) - operating parameters (tab.7) Table 3.

  • Page 5: Installation

    Table 5. Mechanical parameters W=397, H=350, D+D =92+8 [+/- 2mm] Dimensions =402, H =355 [+/- 2mm] The dimensions of the battery 170 x 110 x 65mm (WxHxD) max compartment Gross/Net weight 4,2 / 4,5 kg Enclosure Steel plate, DC01 1,0mm color white RAL 9003 Closing Cheese head screw x 2 (at the front), (lock assembly possible) Power supply of the cameras: RJ45 socket...
  • Page 6 The shock protection circuit shall be performed with a particular care, i.e. the yellow and green wire coat of the power cable shall stick to one side of the terminal - marked with ‘ ‘ symbol on the PSU enclosure. Operation of the PSU without the properly made and fully operational shock protection circuit is UNACCEPTABLE! It can cause a device failure or an electric shock.

  • Page 7: Indication Of The Device Operation

    3. Indication of the device operation. 3.1 LED indication of operating status. The PSU is equipped with two diodes on the front panel: RED LED:  on – the PSU is supplied with 230 V off – no 230 V supply ...

  • Page 8: Operation And Use

    Installation example of the S64-B17 battery (Battery not included). 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on). In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over.
