Pulsar S108-B Manual

10-ports switch with buffer power supply for 8 ip cameras
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Uninterruptible power supply of 8 IP cameras (52 V DC)
Switch 10 ports
8 PoE ports 10/100Mb/s, (data and power supply)
2 ports 10/100Mb/s (UpLink)
30 W for each PoE port, supports devices complaint with
the IEEE802.3af/at (PoE+) standard
Approximate backup time: 5h 30min
CONTENTS
S108-B 10-ports switch with buffer power supply
for 8 IP cameras
Edition: 3 from 14.02.2019
Supercedes the edition: 2 from 16.04.2018
Features
:

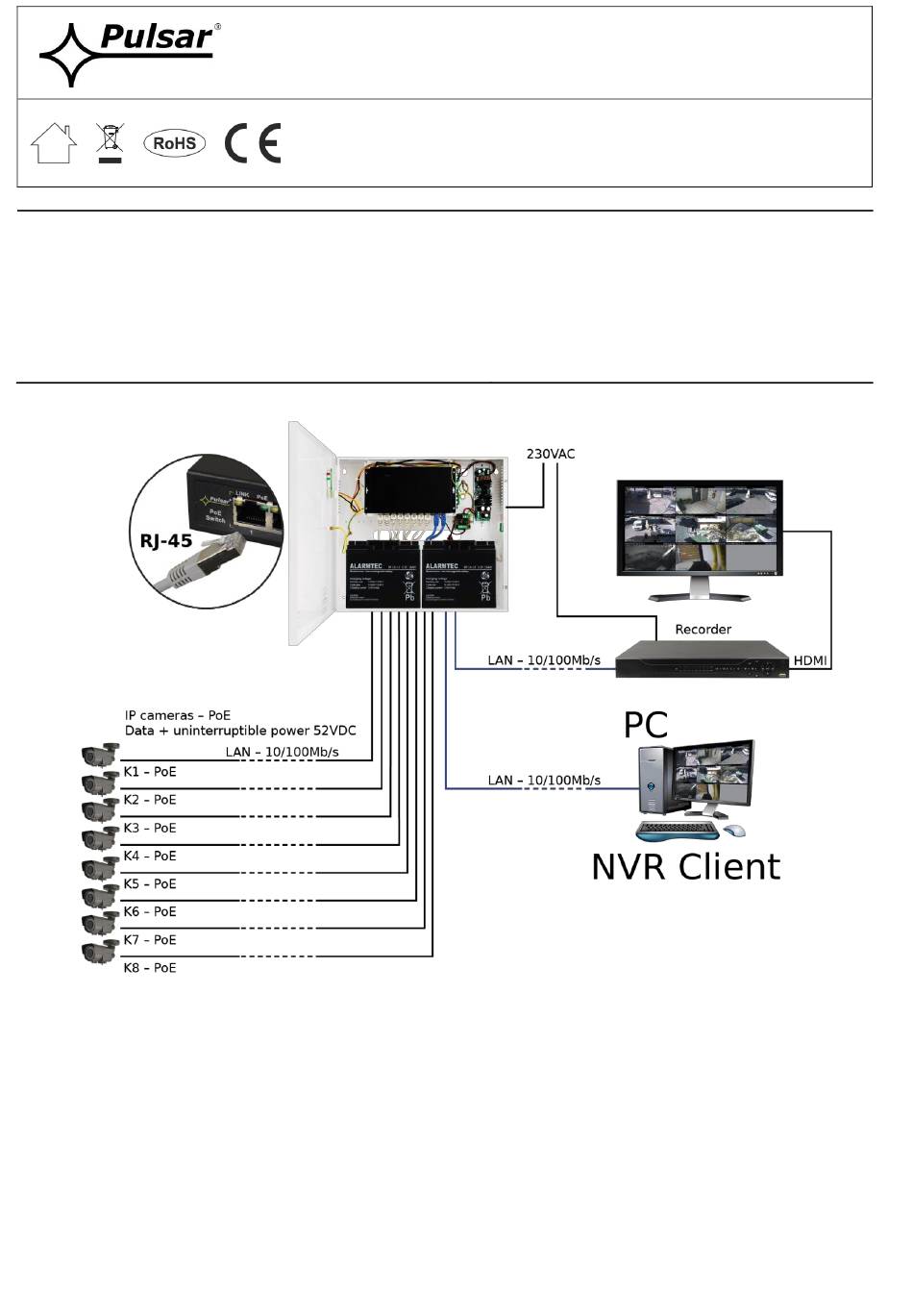

Example of use.
1
S108-B
v1.1
LED indication
Metal enclosure - color white RAL 9003
with space for two 17 Ah/12 V battery
Supports auto-learning and auto-aging of
MAC addresses (1K size)
warranty - 2 year from the production date
PL
EN**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S108-B and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar S108-B

Summary of Contents for Pulsar S108-B

  • Page 1 S108-B v1.1 S108-B 10-ports switch with buffer power supply for 8 IP cameras Edition: 3 from 14.02.2019 Supercedes the edition: 2 from 16.04.2018 EN** Features   Uninterruptible power supply of 8 IP cameras (52 V DC) LED indication ...
  • Page 2 The switch is housed in a metal enclosure (color RAL 9003) which can accommodate a two 17 Ah/12 V batteries. The enclosure features a micro switch tamper indicating door opening (front panel). The S108-B is fitted with two LEDs on the front panel Red LED - indicates the presence of 230 V supply voltage, green LED indicates the presence of DC voltage).
  • Page 3 1.3 Description of components and connectors. Fig. 2. The enclosure view. Table 1. ( See Fig . 2) Component No. Description (Fig. 2) Switch PoE Switch mode buffer power supply unit DC/DC52230 converter Output filter Tamper – micro switch (terminals) of tamper protection (NC) Battery space for two (2 x 17 Ah/12 V - connect the batteries in series) Power supply connector of the PSU –...
  • Page 4 Fig. 3. The view of the switch. Table 2. (See Fig.3) Component No Description (Fig. 3) 8 x PoE ports (1÷8) 2 x UPLINK port 52 V DC power supply socket 1.4 Technical parameters - parameters of the switch (tab.3) - electrical parameters (tab.4) - mechanical parameters (tab.5) - operation safety (tab.6)
  • Page 5 Table 5. Mechanical parameters W=397, H=350, D+D =92+8 [+/- 2mm] Dimensions =402, H =355 [+/- 2mm] The dimensions of the 370 x 180 x 80mm (WxHxD) max battery compartment Gross/Net weight 4,8 / 5,1 kg Enclosure Steel plate, DC01 1,0mm color white RAL 9003 Closing Cheese head screw x 2 (at the front), (lock assembly possible) Power supply of the cameras: RJ45 socket...
  • Page 6 2.2. Installation procedure Before installation, cut off the voltage in the 230 V power-supply circuit. To switch power off, use an external switch, in which the distance between the contacts of all poles in the disconnection state is not less than 3mm. 2.
  • Page 7 3. Indication of the device operation. 3.1 LED indication of operating status. The PSU is equipped with two diodes on the front panel: RED LED:  on – the PSU is supplied with 230 V  off – no 230 V supply GREEN LED: ...
  • Page 8 Installation example of the S108-B battery (Battery not included) 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on). In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over.
