Pulsar S64-CRB Quick Start Manual

6-port switch with buffer power supply for 4 ip cameras and recorder, with recorder space
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
 Uninterruptible power supply of 4 IP cameras
(52 V DC)
 Uninterruptible power supply of the recorder (12 V DC)
 6 10/100Mb/s ports
4 PoE ports 10/100 Mb/s (data transfer and power supply)
2 ports 10/100 Mb/s (UP LINK)
 Long Range mode (up to 250m)
 30 W for each PoE port, supports devices complaint with
the IEEE802.3af/at (PoE+) standard
 Supports auto-learning and auto-aging of MAC addresses
(1K size)
 Approximate backup time: 6h
CONTENTS
2. Installation.
2.1 Requirements
2.2
S64-CRB 6-port switch with buffer power supply
for 4 IP cameras and recorder, with recorder space
Edition: 5 from 20.09.2019
Supercedes the edition: 4 from 28.01.2019
Features
:
 Metal housing - color white RAL 9003, which can
 The enclosure construction is compliant with
 Space for a recorder with the following max.
 Warranty - 2 year from the production date
Example of use.
1
S64-CRB
v1.4
accommodate two 17 Ah/12 V batteries and offers
the possibility of recorder installation
the requirements of the General Data
Protection Regulation GDPR (the possibility of
installing two locks with different codes)
dimensions 380x320x65 (WxHxD)
PL
EN**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S64-CRB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar S64-CRB

Summary of Contents for Pulsar S64-CRB

  • Page 1: Table Of Contents

    S64-CRB v1.4 S64-CRB 6-port switch with buffer power supply for 4 IP cameras and recorder, with recorder space Edition: 5 from 20.09.2019 Supercedes the edition: 4 from 28.01.2019 EN** Features  Uninterruptible power supply of 4 IP cameras  Metal housing - color white RAL 9003, which can...

  • Page 2: Technical Description

    (front panel). The S64-CRB is fitted with two LEDs on the front panel (red LED – indicates 230 V power supply of the PSU, green LED indicates the presence of DC voltage).

  • Page 3: Description Of Components And Connectors

    1.3 Description of components and connectors. Fig. 2. The enclosure view. Table 1. (See Fig. 2) Component No. Description (Fig. 2) Switch PoE Switch mode buffer power supply unit DC/DC52115 converter DC/DC50SD converter Output filter Tamper – micro switch (terminals) of tamper protection (NC) Space for batteries (2 x 17 Ah/12 V–...

  • Page 4: Technical Parameters

    Fig. 3. The view switch'a. Table 2. (See Fig.3) Component No Description (Fig. 3) 2 x UP LINK port 4 x PoE port (1÷4) 52 V DC power supply socket Additional mounting elements Switch of mode Long Range 1.4 Technical parameters - parameters of the switch (tab.3) - electrical parameters (tab.4) - mechanical parameters (tab.5)

  • Page 5: Installation Procedure

    U<19 V (± 5%) – disconnect of connection battery Deep discharge battery protection UVP Sabotage protection: - TAMPER output indicating enclosure opening - microswitch, NC contacts (enclosure closed), 0,5 A@50 V DC (max.) Table 5. Mechanical parameters W=421, H=535, D+D =193+14 [+/- 2mm] Dimensions =426, H...
  • Page 6 Before installation, prepare a Switch'a load balance. The given value of 30 W per port is the maximum value referring to a single output. The total power consumption should not exceed 48 W when all PoE ports are being used. The increased demand for power is particularly evident in the case of cameras with heaters or infrared illuminators - when launching these features, the power consumption increases rapidly, which may adversely affect the operation of the switch.

  • Page 7: Indication Of The Device Operation

    Connection schemes: 3. Indication of the device operation. 3.1 LED indication of operating status. The PSU is equipped with two diodes on the front panel: RED LED:  on – the PSU is supplied with 230 V off – no 230 V supply ...

  • Page 8: Optical Indication Of The Switch Operation

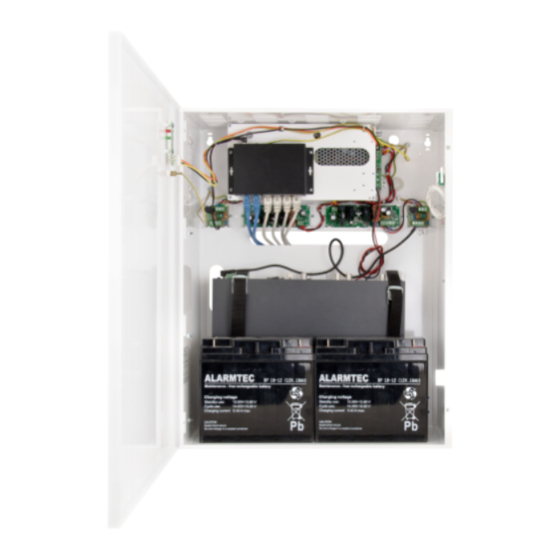

    LAN devices, 10 Mb/s or ON - the device is connected: 10 Mb/s or 100 Mb/s Blinking – data transmission 100 Mb/s and data transmission Installation example of the S64-CRB with batteries and the recorder (DVR and accumulators are not included)

  • Page 9: Operation And Use

    The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
