Pulsar S54 Manual


5 10/100 Mb/s ports

4 PoE ports (data transfer and power supply)

15,4W for each PoE port, supports devices complaint
with the IEEE802.3af standard

Supports auto-learning and auto-aging of MAC
addresses (1K size)

LED indication
1. Technical description
1.1. General description.

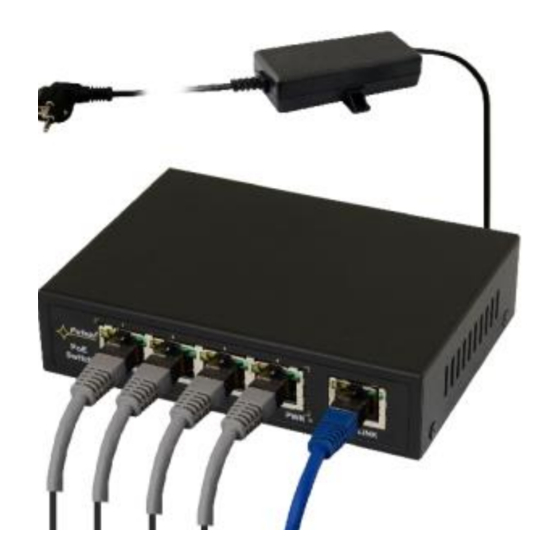

S54 is a 5-port PoE switch designed to supply IP cameras operating in IEEE 802.3af standard. Automatic detection of
any devices powered in the PoE standard is enabled at the 1 – 4 ports of the switch. The UPLINK port is used for connection of
another network device. The LEDs at the front panel indicate the operation status (description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a separate
power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access point or
router.
1.2 Block diagram.
S54
v1.0
The S54 5-port switch for 4 IP cameras
Edition: 2 from 22.02.2016
Supercedes the edition: 1 from 01.09.2015
Features:
 The PSD 480125 48VDC/1,25A/60W max.
power supply desktop type included
 Additional assembly elements
 warranty – 2 year from the production date

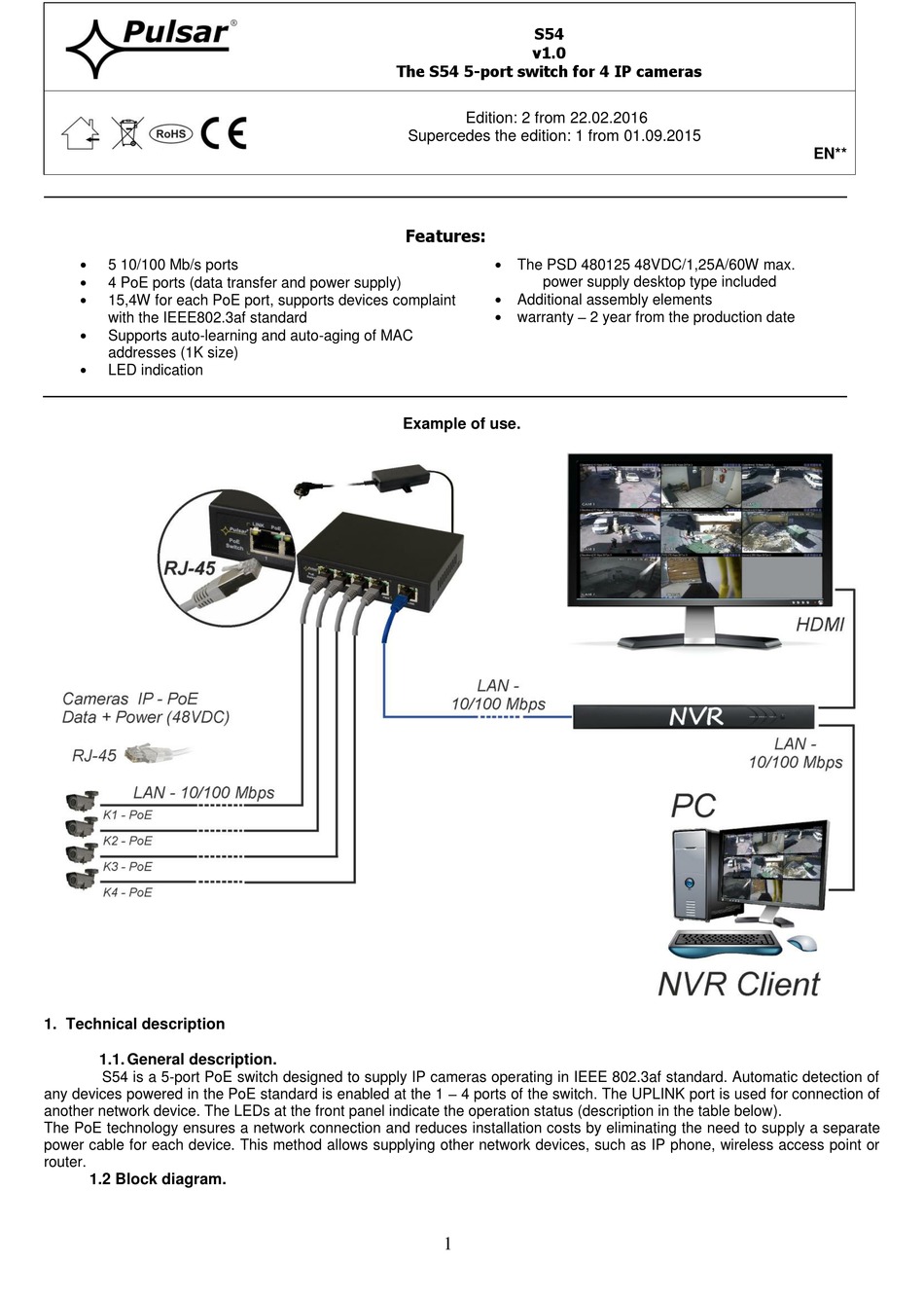

Example of use.
