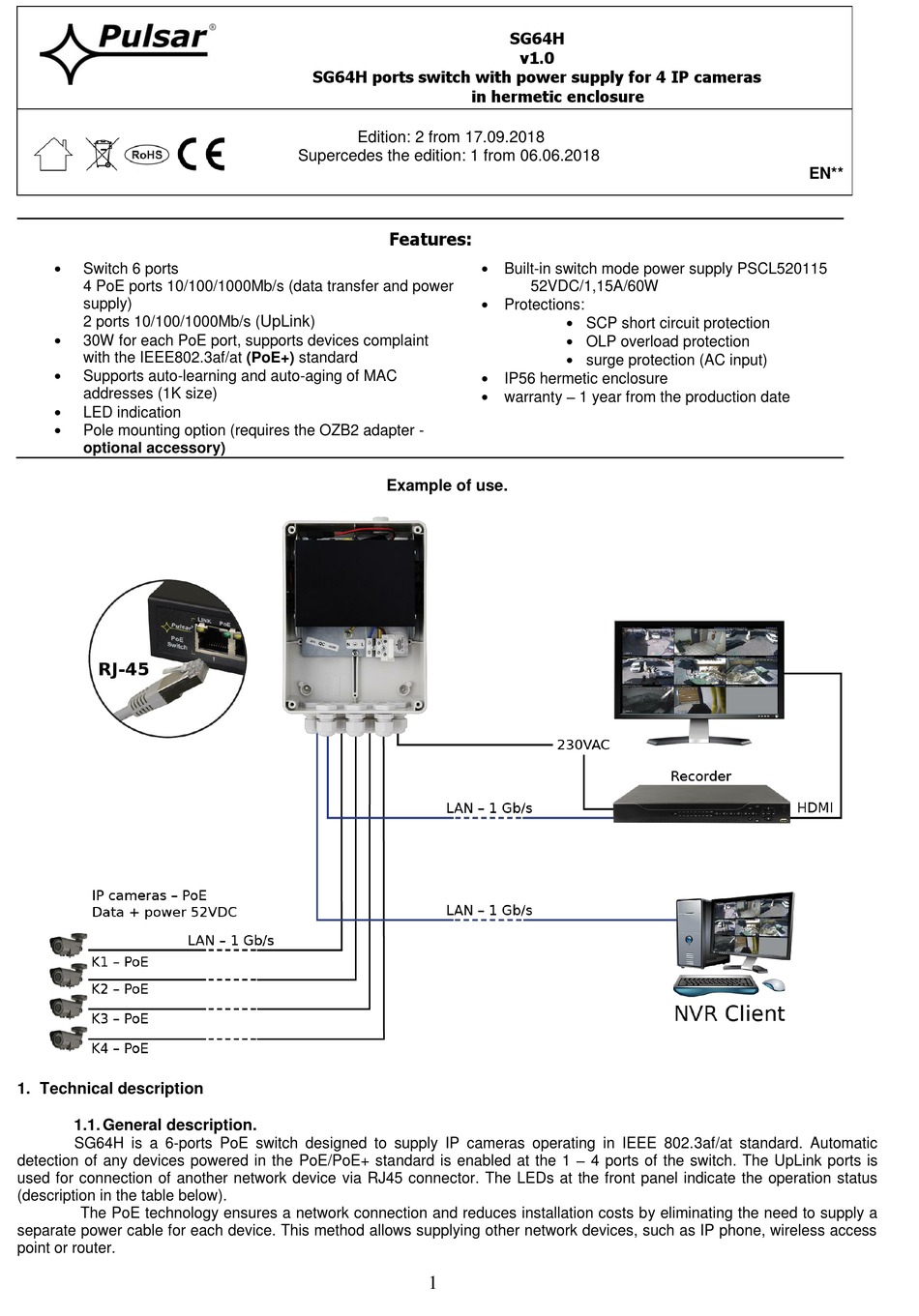

Pulsar SG64H Manual


Switch 6 ports
4 PoE ports 10/100/1000Mb/s (data transfer and power
supply)
2 ports 10/100/1000Mb/s (

30W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard

Supports auto-learning and auto-aging of MAC
addresses (1K size)

LED indication

Pole mounting option (requires the OZB2 adapter -
optional accessory)
1. Technical description
1.1. General description.

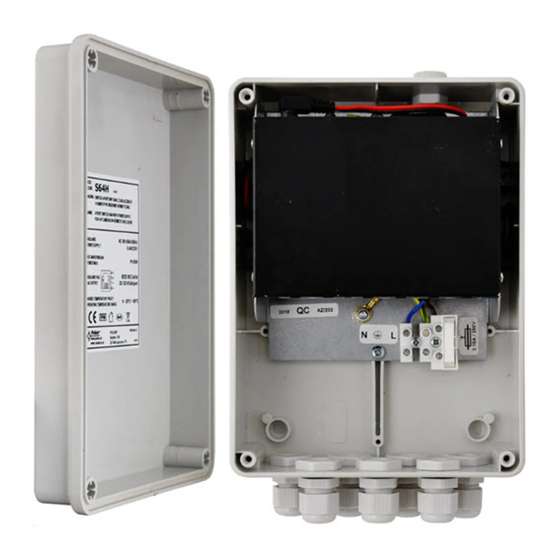

SG64H is a 6-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard. Automatic
detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 4 ports of the switch. The UpLink ports is
used for connection of another network device via RJ45 connector. The LEDs at the front panel indicate the operation status
(description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
SG64H ports switch with power supply for 4 IP cameras
Edition: 2 from 17.09.2018
Supercedes the edition: 1 from 06.06.2018
Features:
UpLink )
Example of use.
1
SG64H
v1.0
in hermetic enclosure
 Built-in switch mode power supply PSCL520115
52VDC/1,15A/60W
 Protections:
 SCP short circuit protection
 OLP overload protection
 surge protection (AC input)
 IP56 hermetic enclosure
 warranty – 1 year from the production date
