Pulsar S108WP Quick Start Manual


Switch 10 ports
8 PoE ports 10/100 Mb/s (data and power supply)
2 ports 10/100 Mb/s (UP LINK)

Long Range mode (up to 250m)

30 W for each PoE port, supports devices complaint
with the IEEE 802.3af/at (PoE+) standard

Supports auto-learning and auto-aging of MAC
addresses (1K size)
1. Technical description
1.1. General description.
S108 is a 10-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.
Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 8 ports of the switch.
The UP LINK ports are used for connection of another network device via RJ45 connector. The LEDs at the front panel indicate
the operation status (description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.

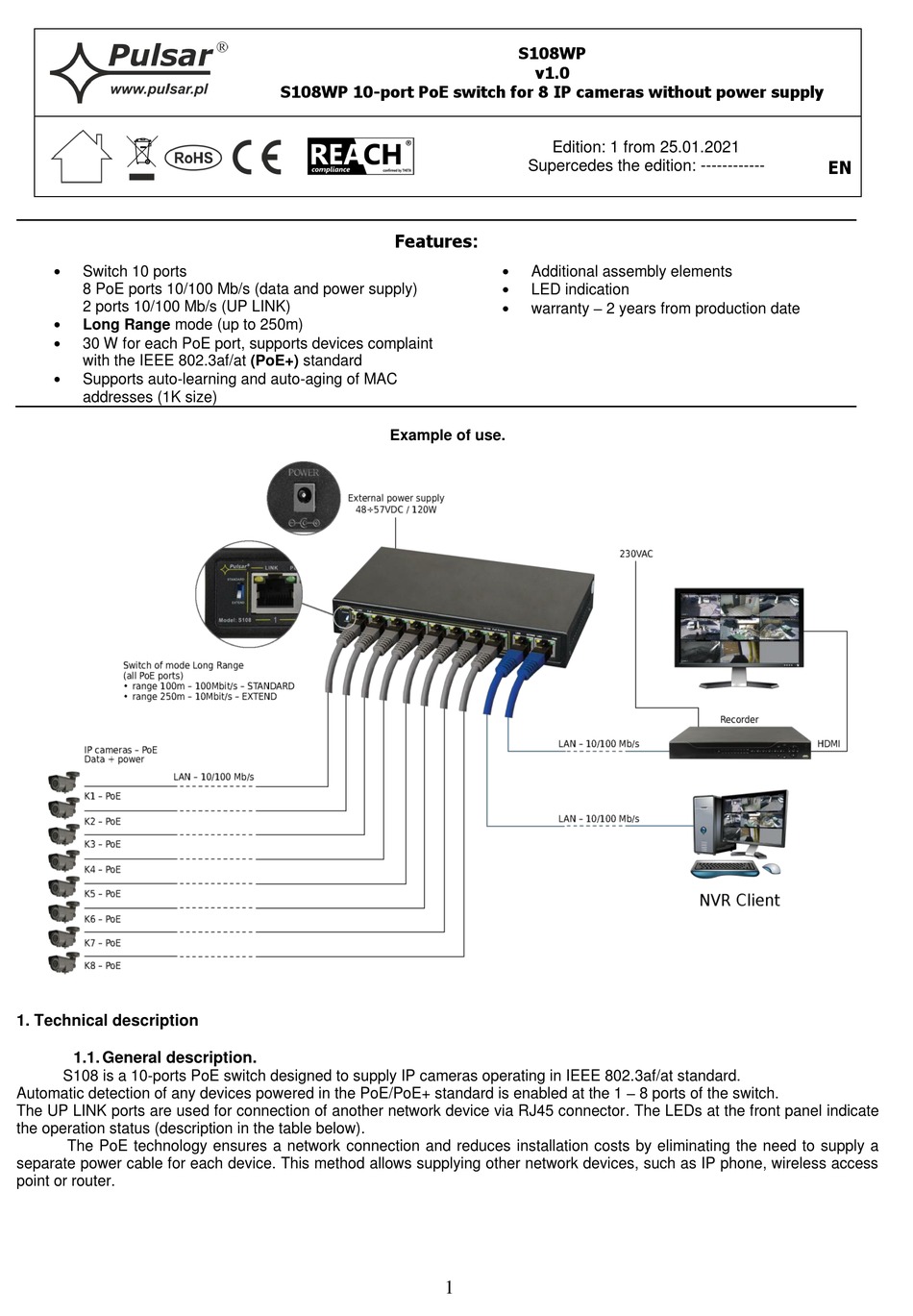

S108WP 10-port PoE switch for 8 IP cameras without power supply
Features
Example of use.
1
S108WP
v1.0
Edition: 1 from 25.01.2021
Supercedes the edition: ------------
:


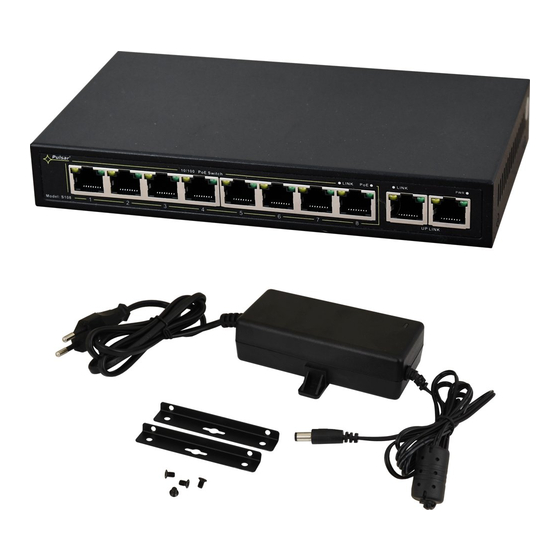

Additional assembly elements

LED indication

warranty – 2 years from production date
EN
