Uninterruptible power supply of 8 IP cameras (48V DC)
uninterruptible power supply of the recorder (12V DC)
9 10/100 Mb/s ports
8 PoE ports (data transfer and power supply)
15,4W for each PoE port, supports devices complaint
with the IEEE802.3af standard
Approximate backup time: 3h 45min
CONTENTS
2.1 Requirements
S98-CRB 9-port switch with buffer power supply
for 8 IP cameras and recorder, with recorder space
Edition: 3 from 15.11.2017
Supercedes the edition: 2 from 09.01.2017
Features
:

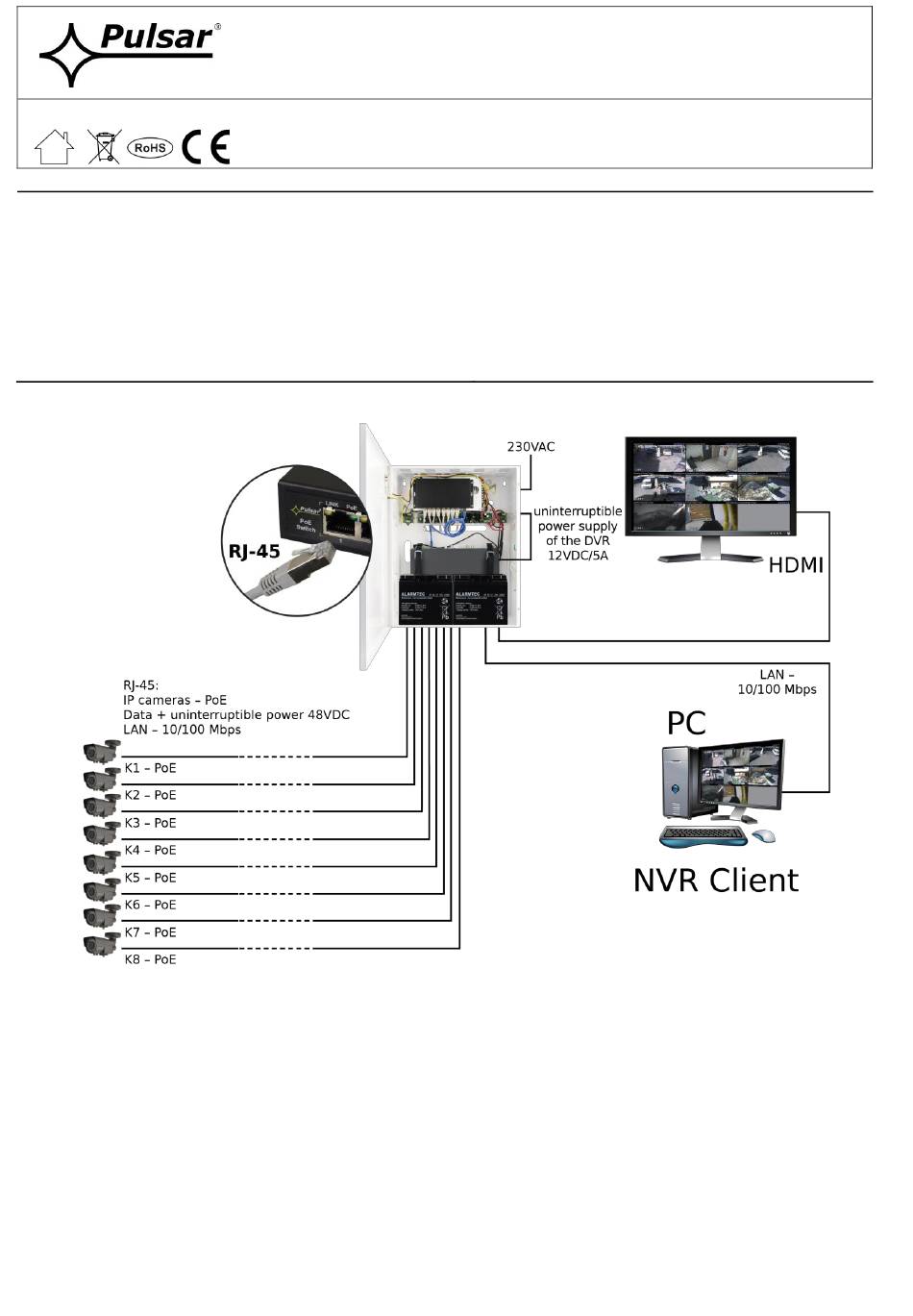

Example of use .
1
S98-CRB
v1.1
Metal housing - color white RAL 9003, which
can accommodate 2 x 17Ah/12V batteries and
offers the possibility of recorder installation
Supports auto-learning and auto-aging of MAC
addresses (1K size)
Space for a recorder with the following max.
dimensions max. 380x320x65 (WxHxD)
warranty - 2 year from the production date
EN**
PL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pulsar S98-CRB
Summary of Contents for Pulsar S98-CRB
- Page 1 S98-CRB v1.1 S98-CRB 9-port switch with buffer power supply for 8 IP cameras and recorder, with recorder space Edition: 3 from 15.11.2017 Supercedes the edition: 2 from 09.01.2017 EN** Features Uninterruptible power supply of 8 IP cameras (48V DC) Metal housing - color white RAL 9003, which ...
- Page 2 The switch is housed in a metal enclosure (color RAL 9003) which can accommodate two 2x17Ah/12V battery. The enclosure features a micro switch tamper indicating door opening (front panel). The S98-CRB is fitted with two LEDs on the front panel (red LED – indicates 230V AC power supply of the PSU, green LED indicates the presence of DC voltage).
- Page 3 1.3 Description of components and connectors. Fig. 2. The enclosure view. Table 1. (See Fig. 2) Component No. Description (Fig. 2) Switch PoE Switch mode buffer power supply unit DC/DC48250 converter DC/DC50SD converter Output filter Tamper – micro switch (terminals) of tamper protection (NC) Space for batteries (2x17Ah/12V –...
- Page 4 Table 2. (See Fig.3) Component No Description (Fig. 3) 8 x PoE port (1÷8) 1 x UPLINK port 48V DC power supply socket 1.4 Technical parameters - parameters of the switch (tab.3) - electrical parameters (tab.4) - mechanical parameters (tab.5) - operation safety (tab.6) - operating parameters (tab.7) Table 3.
- Page 5 Table 5. Mechanical parameters W=421, H=535, D+D =193+14 [+/- 2mm] Dimensions =426, H =540 [+/- 2mm] The dimensions of the recorder =380, H =320, D =65 [+/- 2mm] compartment The dimensions of the battery 370x180x80 (WxHxD) compartment Gross/Net weight 11 / 11,5 kg Enclosure Steel plate, DC01 1,0mm color white RAL 9003 Closing...
- Page 6 4. Connect the ground wire to the terminal marked with the symbol (power supply module connector). Connect the ground wire to the clip marked by the earth symbol PE. Use a three-core cable (with a yellow and green PE protection wire) to make the connection.
- Page 7 Installation example of the S98-CRB with batteries and the recorder (DVR and accumulators are not included) 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on). In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over.
- Page 8 The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
