ports
Switch 10
8 PoE ports 10/100Mb/s, (1÷8 ports) (data and power
supply)
2 ports 10/100/1000 Mb/s ( G1, G2 port) (UpLink)
15,4W for each PoE port, supports devices
complaint with the IEEE802.3af standard
Supports auto-learning and auto-aging of MAC
addresses (1K size )
LED indication
1. Technical description.
1.1. General description.

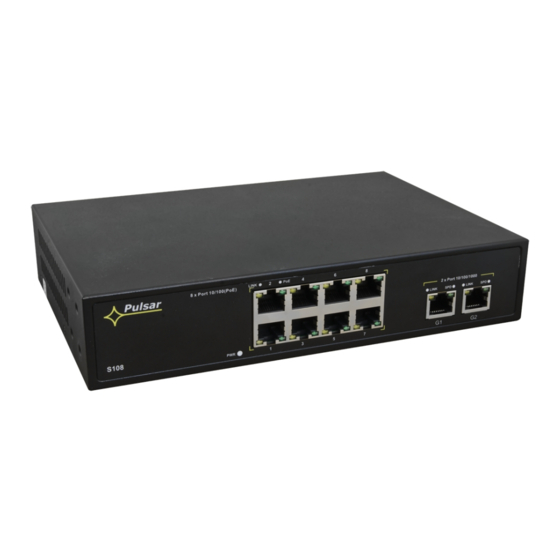

S108 is a 10- port PoE switch designed to supply IP cameras operating in IEEE 802.3af standard.
Automatic detection of any devices powered in the PoE standard is enabled at the 1 – 8 ports of the switch. The G1 and
G2 ports is used for connection of another network device. The LEDs at the front panel indicate the operation status
(description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless
access point or router.

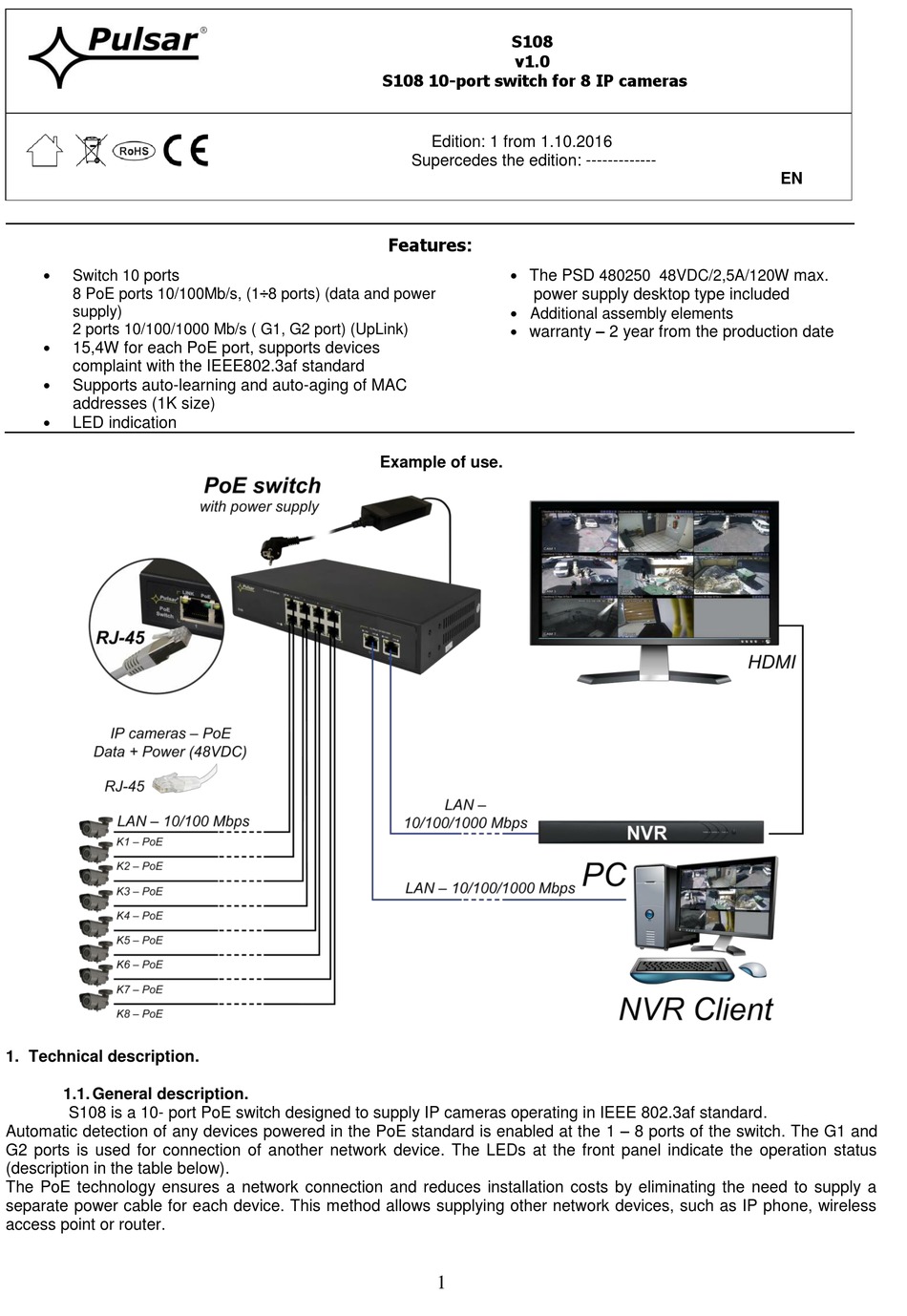

S108
v1.0
S108 10-port switch for 8 IP cameras
Edition: 1 from 1.10.2016
Supercedes the edition: -------------
Features
:
The PSD 480250 48VDC/2,5A/120W max.
power supply desktop type included
Additional assembly elements
warranty – 2 year from the production date
Example of use.
1
EN
