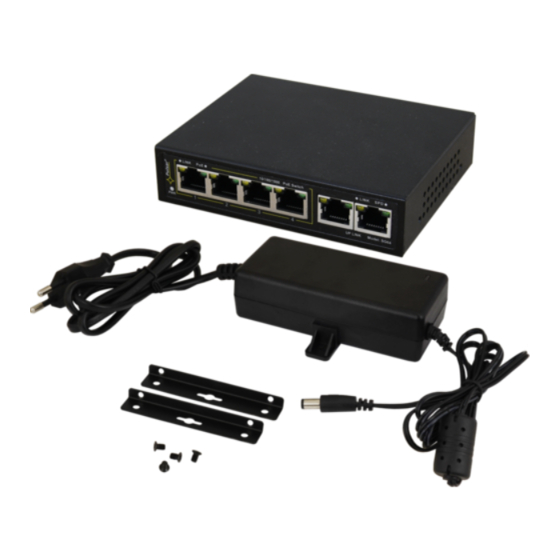

Pulsar S64-BR Quick Start Manual

6-port switch with buffer power supply for 4 ip cameras and recorder
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Uninterruptible power supply of 4 IP cameras (52 V DC)
uninterruptible power supply of the recorder (12 V DC)
Switch 6 ports:
4 PoE ports 10/100Mb/s (data transfer and power
supply)
2 port 10/100Mb/s (UpLink)
30 W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard
Approximate backup time: 6h
CONTENTS
2.1 Requirements
S64-BR
S64-BR 6-port switch with buffer power supply
for 4 IP cameras and recorder
Edition: 2 from 14.02.2019
Supercedes the edition: 1 from 15.11.2019
Features
:

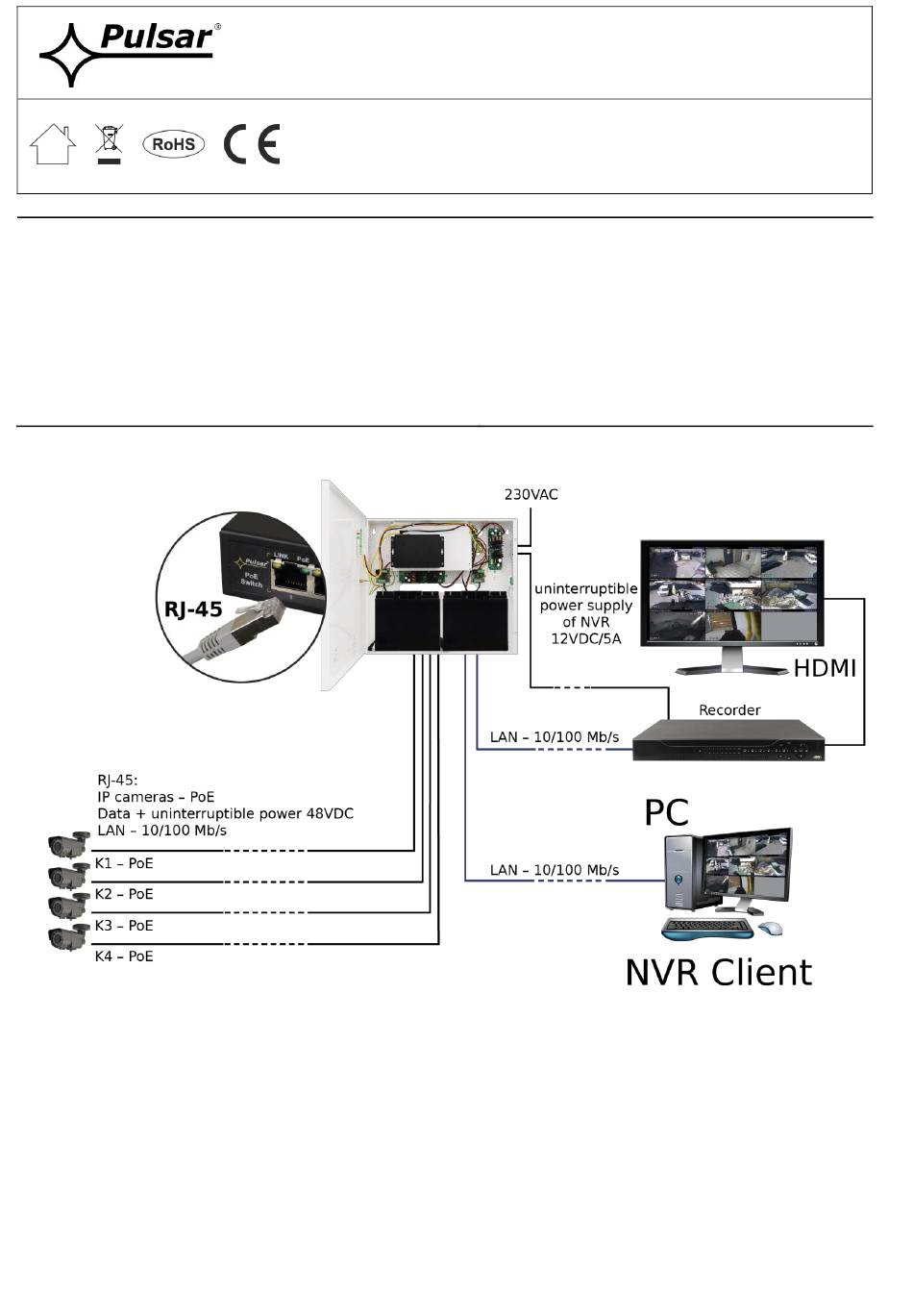

Example of use.
1
v1.0
LED indication
Metal enclosure - color white RAL 9003
which can accommodate two 17Ah/12V
batteries
Supports auto-learning and auto-aging of
MAC addresses (1K size)
warranty - 2 year from the production date
PL
EN**
