Pulsar S108-CRB Manual

Pulsar S108-CRB Manual

10-ports switch with buffer power supply for 8 ip cameras and recorder in recorder space

Advertisement

Quick Links

Uninterruptible power supply of 8 IP cameras (52 V DC)
Uninterruptible power supply of the recorder (12 V DC)
10 ports 10/100 Mb/s
8 PoE ports 10/100Mb/s, (data and power supply)
2 ports 10/100Mb/s (UpLink)
30 W for each PoE port, supports devices complaint with
the IEEE802.3af/at (PoE+) standard
Supports auto-learning and auto-aging of MAC addresses
(1K size)
Approximate backup time: 3h 15min
CONTENTS
S108-CRB 10-ports switch with buffer power supply
for 8 IP cameras and recorder in recorder space
Edition: 3 from 14.02.2019
Supercedes the edition: 2 from 02.07.2018
Features
:

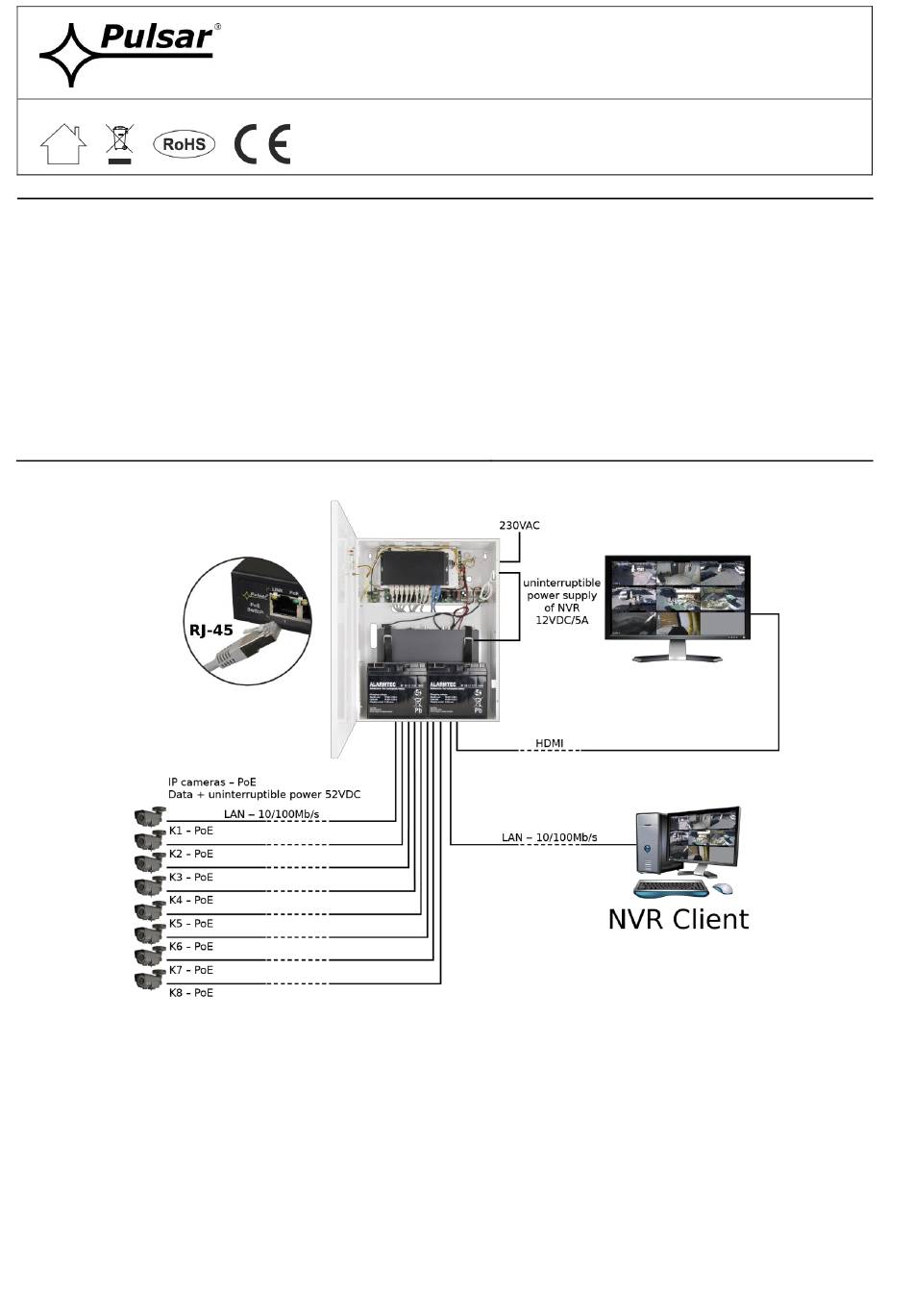

Example of use.
1
S108-CRB
v1.2
LED indication

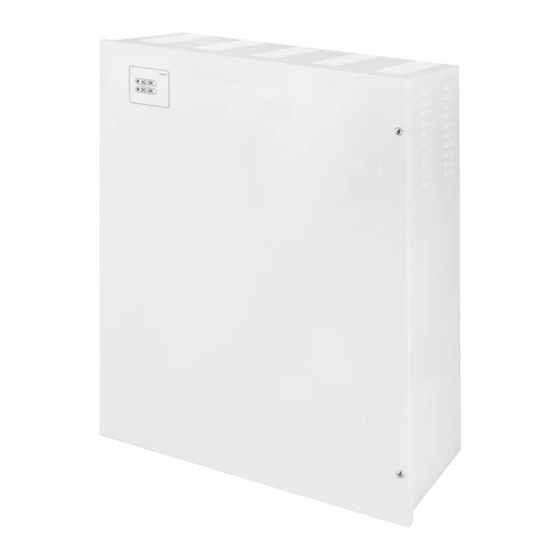

Metal enclosure - color white RAL 9003
with space for two 17 Ah/12V battery and
offers the possibility of recorder installation
The enclosure construction is compliant
with the requirements of the General
Data Protection Regulation GDPR (the
possibility of installing two locks with
different codes)
Space for a recorder with the following
dimensions 380x320x65 (WxHxD)
warranty - 2 year from the production date
PL
EN**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S108-CRB and is the answer not in the manual?

Questions and answers

Summary of Contents for Pulsar S108-CRB

  • Page 1: Table Of Contents

    S108-CRB v1.2 S108-CRB 10-ports switch with buffer power supply for 8 IP cameras and recorder in recorder space Edition: 3 from 14.02.2019 Supercedes the edition: 2 from 02.07.2018 EN** Features   Uninterruptible power supply of 8 IP cameras (52 V DC) LED indication ...
  • Page 2: Technical Description

    The switch is housed in a metal enclosure (color RAL 9003) which can accommodate a two 17 Ah/12 V batteries. The enclosure features a micro switch tamper indicating door opening (front panel). The S108-CRB is fitted with two LEDs on the front panel (red LED - indicates the presence of 230 V supply voltage, green LED indicates the presence of DC voltage).
  • Page 3: Description Of Components And Connectors

    1.3 Description of components and connectors. Fig. 2. The enclosure view. Table 1. ( See Fig . 2) Component No. Description (Fig. 2) Switch PoE Switch mode buffer power supply unit DC/DC52230 converter DC/DC50SD converter Output filter Tamper – micro switch (terminals) of tamper protection (NC) Battery space for two (2 x 17Ah/12V –...
  • Page 4: Technical Parameters

    Fig. 3. The view of the switch. Table 2. (See Fig.3) Component No Description (Fig. 3) 8 x PoE ports (1÷8) 2 x UPLINK port 52 V DC power supply socket 1.4 Technical parameters - parameters of the switch (tab.3) - electrical parameters (tab.4) - mechanical parameters (tab.5) - operation safety (tab.6)
  • Page 5: Installation

    U<19 V (± 5%) – disconnection of the batteries Deep discharge battery protection UVP Sabotage protection: - TAMPER output indicating enclosure opening - microswitch, NC contacts (enclosure closed), 0,5 A@50 V DC (max.) Table 5. Mechanical parameters W=421, H=535, D+D =193+14 [+/- 2mm] Dimensions =426, H...
  • Page 6: Installation Procedure

    The given value of 30 W per port is the maximum value referring to a single output. The total power consumption should not exceed 120 W. The increased demand for power is particularly evident in the case of cameras with heaters or infrared illuminators - when launching these features, the power consumption increases rapidly, which may adversely affect the operation of the switch.
  • Page 7: Indication Of The Device Operation

    3. Indication of the device operation. 3.1 LED indication of operating status. The PSU is equipped with two diodes on the front panel: RED LED:  on – the PSU is supplied with 230V AC off – no 230V AC supply ...
  • Page 8: Operation And Use

    Installation example of the S108-CRB with batteries and the recorder (DVR and accumulators are not included) 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on). In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over.
