MAINTENANCE PROCEDURES
219001998-094
TYPICAL - HEADLIGHT REFLECTION ON
TEST SURFACE
Line C
Line D

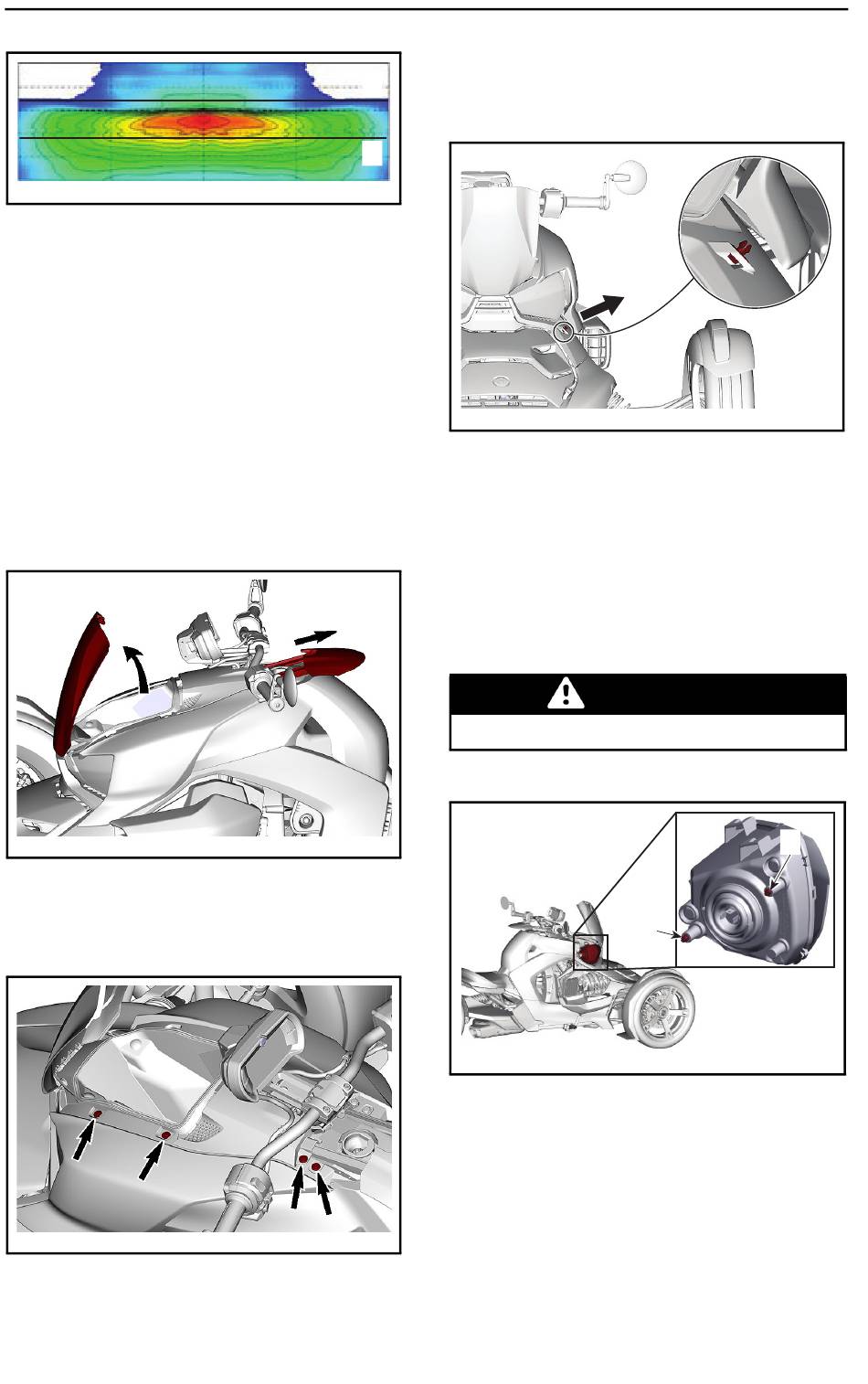

Headlights Aiming Adjustment
The headlight aiming adjustment must
be performed without weight on the
vehicle.
Canada and USA
1. Remove the side fairing.
1.1 Open the glove box and slide
the fuel filler door backward.
219001998-074
TYPICAL
1.2 Remove and keep the plastic
rivets retaining the side fairing.
219001998-075
TYPICAL
______________
114
1.3 Pull the front bottom corner to
C
D
219001998-156
1.4 Remove the side fairing.
2. Open the right service cover. Refer
SERVICE COVERS
to
3. Using the screwdriver provided
with the vehicle, adjust each head-
light by turning gently the headlight
adjuster located on the headlight
housing.
Adjust both headlights evenly.
219001998-097
1. Headlight adjuster for the horizontal
adjustment (left and right)
2. Headlight adjuster for the vertical
adjustment (up and down)
4. When completed, reinstall all re-
moved parts.
unlatch the retaining tab.
WARNING
2
section.
1
