- Page 1 CM-388 Video to PC/HD Converter OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel............ 8 6.2 Rear Panel ............. 8 6.3 Supported Resolutions ......9 6.4 Supported Audio........10 6.5 Video and Audio Conversion/Bypass Options ............10 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI Repeater with Video Output is designed to convert the digital signal from HDMI (or DVI + Coaxial) source to an analogue NTSC or PAL signal, with L/R stereo audio. As well as S-Video and Composite Video outputs, it also provides an HDMI bypass output to deliver the original signal, and a Coaxial output to send S/PDIF digital audio to an amplifier. -
Page 7: Features
5. FEATURES HDMI, HDCP 1.1 and DVI 1.0 compliant Converts video signal from HDMI source to NTSC or PAL signal (selectable) Converts digital audio from HDMI source to analogue stereo audio Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60 Hz and PC from VGA@60 Hz to WUXGA@60 Hz (RB) Supports Coaxial input audio sample rate 44.1KHz, 48KHz and 96KHz... -
Page 8: Operation Controls And Functions

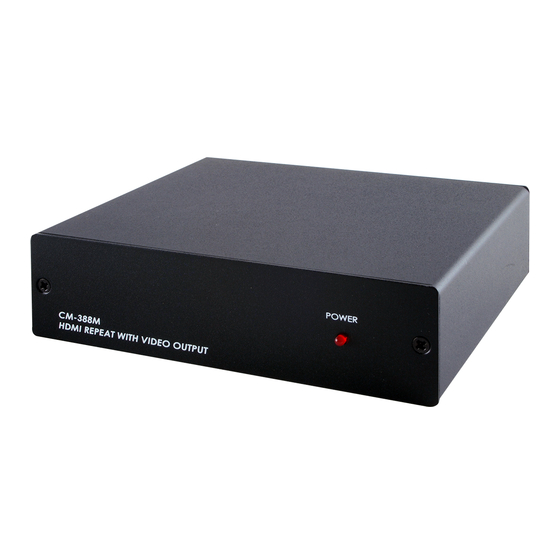

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER CM-388M HDMI REPEAT WITH VIDEO OUTPUT POWER LED: The LED indicator will illuminate when the unit is connected with power supply. 6.2 Rear Panel NTSC COAXIAL COAXIAL VIDEO DC 5V IN HDMI HDMI S-VIDEO... -
Page 9: Supported Resolutions
NTSC/PAL Switch: Select the required format for output display. DC 5V: Connect the 5 V DC power supply into the unit and plug the adaptor to AC wall outlet. 6.3 Supported Resolutions HD RESOLUTIONS PC RESOLUTIONS 480i/p@60 640×480@60, 72, 75, 85 576i/p@50 720×400@70 720p@50/60... -
Page 10: Supported Audio
6.4 Supported Audio VIDEO/AUDIO SOURCE HDMI (with DVI to HDMI adaptor) AUDIO HDMI Embedded Audio Coaxial Input OUTPUT HDMI Bypass (Sample rate supports 44.1/48/96 kHz ) Coaxial Audio Stereo Audio (Input audio supports LPCM 2CH) 6.5 Video and Audio Conversion/Bypass Options Option A INPUT A Both video and audio from HDMI source*... - Page 11 Option C INPUT C Video from DVI source and audio from Coaxial source DVI Bypass, output original video from DVI COAXIAL Output digital audio from Coaxial CV+L/R Output analogue video converted from DVI, OUTPUT C L/R no sound output*** SV+L/R ...
-
Page 12: Connection Diagram
7. CONNECTION DIAGRAM HD Camcorder HDMI Input Input Active Speakers Digital Audio Input (Coax) Analogue Stereo Output Composite Video Output Power Supply NTSC COAXIAL COAXIAL VIDEO DC 5V IN HDMI HDMI S-VIDEO INPUT OUTPUT S-Video Output Analogue Stereo Output HDMI Output Digital Audio Output (Coax) -
Page 13: Specifications
8. SPECIFICATIONS Input Ports 1× HDMI, 1×Coaxial Output Ports 1×HDMI, 1×Coaxial, 1×Composite Video, 1×S-Video, 2×L/R Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 141 mm (W)×127 mm (D)×38 mm (H) Weight 510 g Chassis Material Aluminum Silkscreen Colour Black Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F Storage Temperature... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface Video Graphics Array... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
