- Page 1 CM-1390M Video to VGA with YPbPr Scaler Box Operation Manual CM-1390M...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Output Format .......…..……..………..…..…..…... OSD Operation ................. Remote Control ……………...……..……........… Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction This professional video scaler is designed to convert Composite and S-Video signal into PC(RGB) or HD(YPvPr) format, scales it up to a maximum output of WUXGA 1920 x 1200 @60RB (when used with a PC monitor) or 1080p resolution (when used with an HDTV display). -
Page 6: Features
5. Features Motion adaptive 3D Y/C separation comb filter (for composite video input only) 3D (frame Based) motion adaptive YNR/CNR noise reduction (for Y/C video input) Advanced 3D motion adaptive deinterlace Autiomatic 2:2/3:2 film mode detection Composite out supports 50Hz or 60Hz frame rate conversion (480p/576p ... -
Page 7: Specifications
6. Specifications Input Signal Levels Video@1Vp-p, 75 ohm, Y@1Vp-p, 75 ohm, Color@0.7Vp-p, 75 ohm Input Port 1 x Composite, 1 x S-Video Output port 1 x VGA Output Resolution 480i ~1080p 50/60 (with VGA to YPbPr adaptor), VGA~WUXGA ESD Protection Human Body model: ±... -
Page 8: Operation Controls And Functions

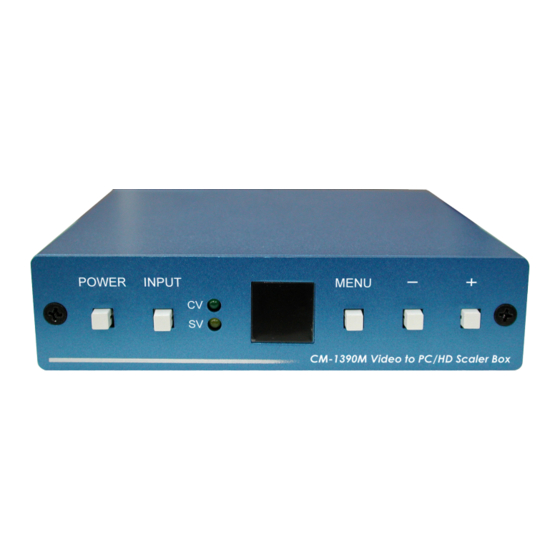

7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Front Panel POWER INPUT MENU CM-1390M Video to PC/HD Scaler Box ① ② ③ ④ ⑤ ① Power button and LED indicator: Press the button once to power on the unit, press again to power off. -
Page 9: Rear Panel
7.2 Rear Panel VGA OUTPUT INPUT DC 5V ④ ③ ② ① ① DC power jack: Plug the DC 5V power supply into the splitter and connect the adaptor to AC wall outlet. ② CV (Composite Video) Input : Use a Composite Video cable to connect the Composite Video output of the source equipment to this Composite Video (CV) input of the scaler. -
Page 10: Output Format
8. Output Format The format for analog PC output is RGB and for analog HD output is YPbPr. PC (RGBHV) HDTV (YPbPr) 640 x 480 60Hz 1080p-RGB 1920 x 1080p Follow input source and can convert 50Hz to 60Hz SVGA 800 x 600 60Hz 1080i-RGB... - Page 11 Use +/- to move the tick “” to your desired adjust item, press the Menu/Enter to confirm your selection. At this point, the selected parameter will turn red, and you can use +/- to increase or decrease the value of the parameter. When adjustment is complete, press “...
-
Page 12: Remote Control
10. Remote Control ① Display: Press the button to display input source ① ② and output resolution on the screen. ② Power: Power ON/OFF button. SVGA ③ VGA ~1080p: Press to select your desired output WXGA SXGA UXGA VIDEO ⑧ resolution. -
Page 13: Connection And Installation
11. Connection and Installation Analog Out: Connect to your TV through VGA or component interface in case your TV has no DVI input VGA cable Analog PC output Analog VCR, DVD, STB, DVHS HDTV output VGA to YPbPr/3 RCA cable... -
Page 14: Acronyms
Acronyms Acronym Complete Term Composite Video NTSC National Television System Committee On-Screen-Display Phase Alternating Line Red Green Blue S-Video... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20101208 MPM-CM1390M...
