Summary of Contents for CYP CM-397M

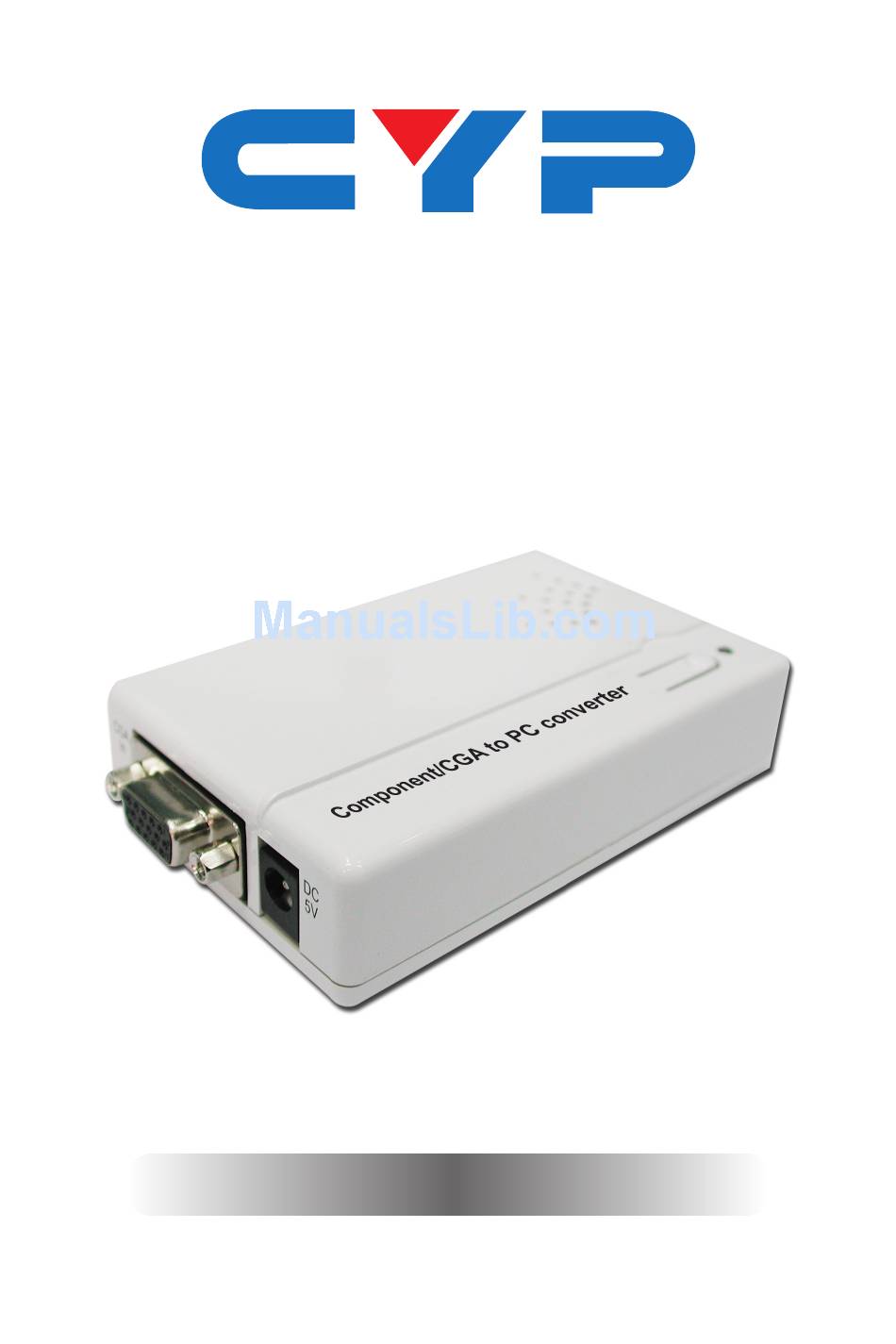

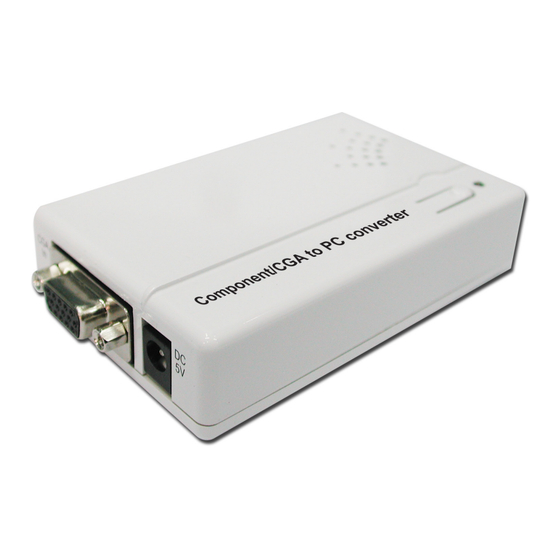

- Page 1 CM-397M CGA to WXGA Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........3 6.3 Top Panel ..........4 7. -
Page 6: Introduction
1. INTRODUCTION This is an analog CGA (RGB) or Component (YCbCr) to PC Converter box that can scale signal to 3 different PC modes of VGA, XGA or WXGA. It enables you to connect your RGB or YCbCr signal source such as game boards or video player to a PC display. -
Page 7: Features
5. FEATURES • Accepts RGB or YCbCr format and converts to PC format • Scales CGA/Component YCbCr 480i/576i up to VGA/XGA/WXGA PC resolution • 50/60Hz frame rate conversion ensures glitch-free display (576i only) • The input of RGB is auto detected and can be RGBHV, RGB H+V or RGsB(sync. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CGA IN Connect the input source equipment such as PC or video player with D-Sub 15pin cable or YPbPr to D-Sub 15pin adaptor cable. DC 5V Connect the power adaptor included in the package and plug it into the AC wall outlet for power supply. -
Page 9: Top Panel
6.3 Top Panel Component/CGA to PC converter MENU button Press this button once to bring out the current input & output information and while the information still appear on the screen press it again to select input signal with RGB or YCbCr. To enter into OSD menu, press and hold this button for 3 seconds. -
Page 10: Osd Menu
7. OSD MENU 576i WXGA Phase Adjust IN Color Space H Position V Position Field Invert Information System Reset Exit The first block of the OSD will display the current input and output timing. Phase Adjust has total of 32 phases ranging from 0~31. Press the button repeatedly to adjust the phase setting whenever changing the source equipment. -
Page 11: Connection And Installation
8. CONNECTION AND INSTALLATION CGA-IN AC Adaptor WXGA CRT MONITOR LCD MONITOR LCD TV... -
Page 12: Specifications
9. SPECIFICATIONS Input/Output Port 1 x D-Sub 15pin female type Input Signal Support Analog-Level Signal RGB 0.7Vp-p 75Ω Hsync/Vsync 2Vp-p ~ 5Vp-p 75Ω YCbCr: Y 1Vp-p 75Ω CbCr 0.7Vp-p 75Ω Input Timing CGA: Hf=15750Hz, Vf=60Hz/Non-interlace 480i: Hf=15734Hz, Vf=59.94Hz/Interlace 576i: Hf=15625Hz, Vf=50Hz/Interlace Input format selection RGB / YCbCr Output Timing... -
Page 13: Acronyms
10. ACRONYMS ACRONYM COMPLETE TERM Color Graphics Adapter Red Green Blue Video Graphics Array eXtended Graphics Array WXGA Widescreen eXtended Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120711 MPM-CM397M...
