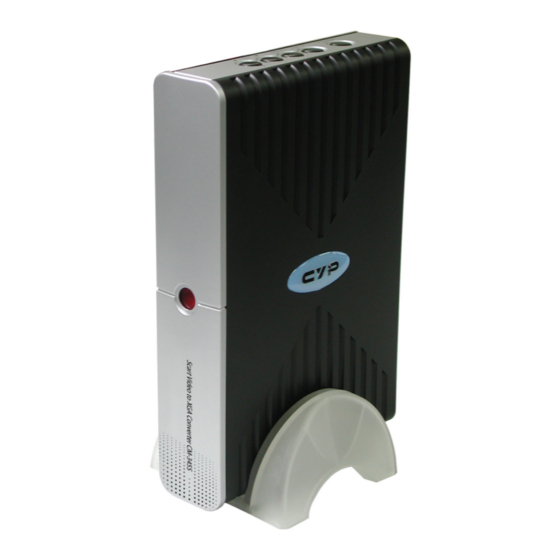

CYP CM-345S Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Scart RGB/Composite to
XGA Converter
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-345S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CM-345S

Summary of Contents for CYP CM-345S

  • Page 1 Scart RGB/Composite to XGA Converter Operation Manual...
  • Page 3 Introduction Thank you for purchasing CM-345S. The product you have purchased has been carefully engineered and manufactured to bring you dependable operation. Read this manual before operating this unit to get familiar with its features and obtain the performance that will bring you a lot of enjoyment for many years.

  • Page 4: Operation Control And Functions

    Only the PC input is looping through to the VGA output. Input Selection : Press the button to select between SCART input and PC-loop throught. When scart input is selected CM-345S will outomatically detect the SCART input as a RGB signal or composite video signal. MENU / ENTER : Press the button to enter into OSD menu or to confirm your selection of the highlighted parameter.

  • Page 5: Rear Panel

    Rear Panel AUDIO OUT POWER PC OUT SCART IN DC 12V AUDIO PC IN 1. Power socket: 12V 800mA DC input. 2. Scart RGB or composite video input connector. 3. Audio out: Stereo audio L/R output. 4. PC audio in: 3.5mm PC audio input. 5.

  • Page 6: Installation

    Installation Power up the unit: 1. Plug the power jack into the power socket on the back of the unit, the power LED will illuminate in red color(Standby mode). 2. Press the power button, power LED will turn into green light.(operation mode) 3.
  • Page 7 Installation On the source Sub-menu, you can choose input between scart, and PC pass through. On the picture Sub-menu, you can adjust setting value of the follwing parameters. Use channel up or down to select your desired adjustment parameter. Brightness: Use volume +/- to increase or decrease brightness level. Contrast: Use volume +/- to increase or decrease contrast level.
  • Page 8 Installation On the sound Sub-menu, you can select to "mute" audio out. In Resolution Sub-menu, you can select output resolution from: 640 X 480, 800 X600, or 1024 X 768.
  • Page 9 Installation On "OTHER" Sub-menu, there are two panameters for adjustment, Sleep: Set a pre-determined time for machine to automatically turn off when timing is up. Display: Set " ON " to display the input/output information on the screen. Selection Function Sleep 10, 20..120 minutes Display ON...

  • Page 10: Remote Control Panel

    Remote Control Panel INPUT : Press the button repeatedly to select desired input source from SCART/PC. DISPLAY : Press the button to turn on or off "OSD" display of input source on the screen. POWER : Power ON/OFF button. MUTE : Press the button to mute the audio. SLEEP : Press the button to set a predetermined time ( minutes) for automatically turning off the machine.

  • Page 11: Specifications

    Specifications Scart Input: RGB composite Audio Output: 1 x stereo Audio phone jack 350m Vrms. 1 x stereo Stereo L, R, RCA output. PC Input: 0.7 Vp-p R.G.B. plus H&V Sync. 3~5 Vp-p. PC Output to Display Monitor : 0.7 Vp-p R.G.B. plus H&V Sync. 3.3 Vp-p. Power Supply: DC12V@500~800 mA Unit weight: 644 grams Dimensions: 226(D) X 165(W) X 46(H) mm.
