- Page 1 HDMI to CV/SV Converter - with HDMI Bypass Operation Manual CM-388...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Main Features................3. Package Contents..............4. Hardware Description..............4.1 Front Panel................4.2 Rear Panel................5. Connections and Installation............ 6. Specifications................ -
Page 3: Main Features
1. Introduction The HDMI to CV/SV Converter is designed to convert digital signal from HDMI (or DVI + Coaxial) source to analog signal of NTSC or PAL system, with L/R stereo audio. Besides S-Video and Composite Video outputs, it also provides one bypass HDMI output to deliver original signal, and a Coaxial output to send S/PDIF digital audio to audio amplifier. -
Page 4: Package Contents

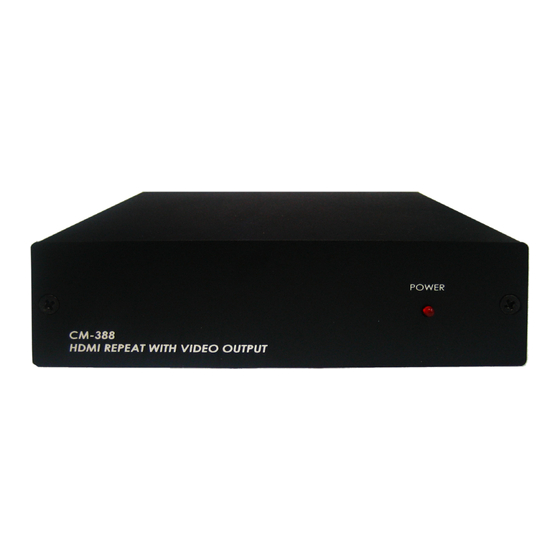

2. 5V/2.6A DC power adaptor. 3. Operation manual. 4. Hardware Description The following sections describe the hardware components. 4.1 Front Panel POWER CM-388 HDMI REPEAT WITH VIDEO OUTPUT 1 Power LED: The LED indicator will illuminate when the unit is powered on. -
Page 5: Rear Panel
4.2 Rear Panel NTSC COAXIAL COAXIAL VIDEO DC 5V IN HDMI HDMI S-VIDEO INPUT OUTPUT Coaxial Input: Connect the digital audio input port to the Coaxial output port of your source equipment such as DVD player or Set-Top-Box. HDMI Input: Connect the HDMI input port to the HDMI output port of your source equipment such as DVD player or Set-Top-Box. -
Page 6: Connections And Installation
5. Connection and Installation Amplifier HDMI TV 6. Specifications Input ports 1 x HDMI type A, 1 x Coaxial Output ports 1 x HDMI type A, 1 x Coaxial, 2 x Stereo R/L RCA jack, 1 x Composite-Video RCA jack, 1 x S-Video mini-din Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm)
