Summary of Contents for CYP CM-398
-
Page 1: Converter Box
CM-398 CV/SV to PC Converter Box Operation Manual CM-398... -
Page 2: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Operation Controls and Functions..……..….....… Front Panel ................Rear Panel …………………………………………..…….… Top Panel …………………………………………...…….… 8. Connection and Installation....…………..…..…..…... Acronyms …….………....…………..…..….....…... -
Page 4: Introduction

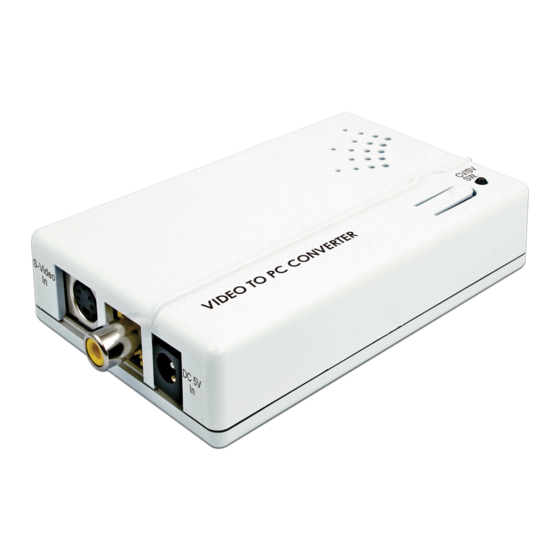

1. Introduction This is a low cost video to PC converter box that can convert CV/SV (NTSC or PAL system) to XGA, SXGA and UXGA resolutions. It also allows you to view DVD, VCR or video game sources on your PC display. 2. -
Page 5: Specifications
6. Specifications Input Ports 1 x CV, 1 x SV Output Port 1 x VGA Output Resolution XGA, SXGA and UXGA Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 100(W) x 64(D) x 18.5(H) Weight(g) Chassis Material Plastic Silkscreen Color White Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F... -
Page 6: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Front Panel S-Video DC 5V S-Video input: This slot is where you connect the input source, such as a ① digital camcorder or a PDA with an S-Video cable in order to send an input signal. -
Page 7: Top Panel
7.3 Top Panel CV/SV SW & LED: Press this button to switch the input source between ① composite or S-Video. The LED will turn yellow when switched to composite input and will switch to red when changed to S-Video input. -
Page 8: Connection And Installation
8. Connection and installation CM-398... -
Page 11: Acronyms
Acronyms Acronym Complete Term NTSC National Television System Committee Super Extended Graphics Array SXGA Phase Alternate Line UXGA Ultra Extended Graphics Array Extended Graphics Array 20100302 MPM-CM398...
