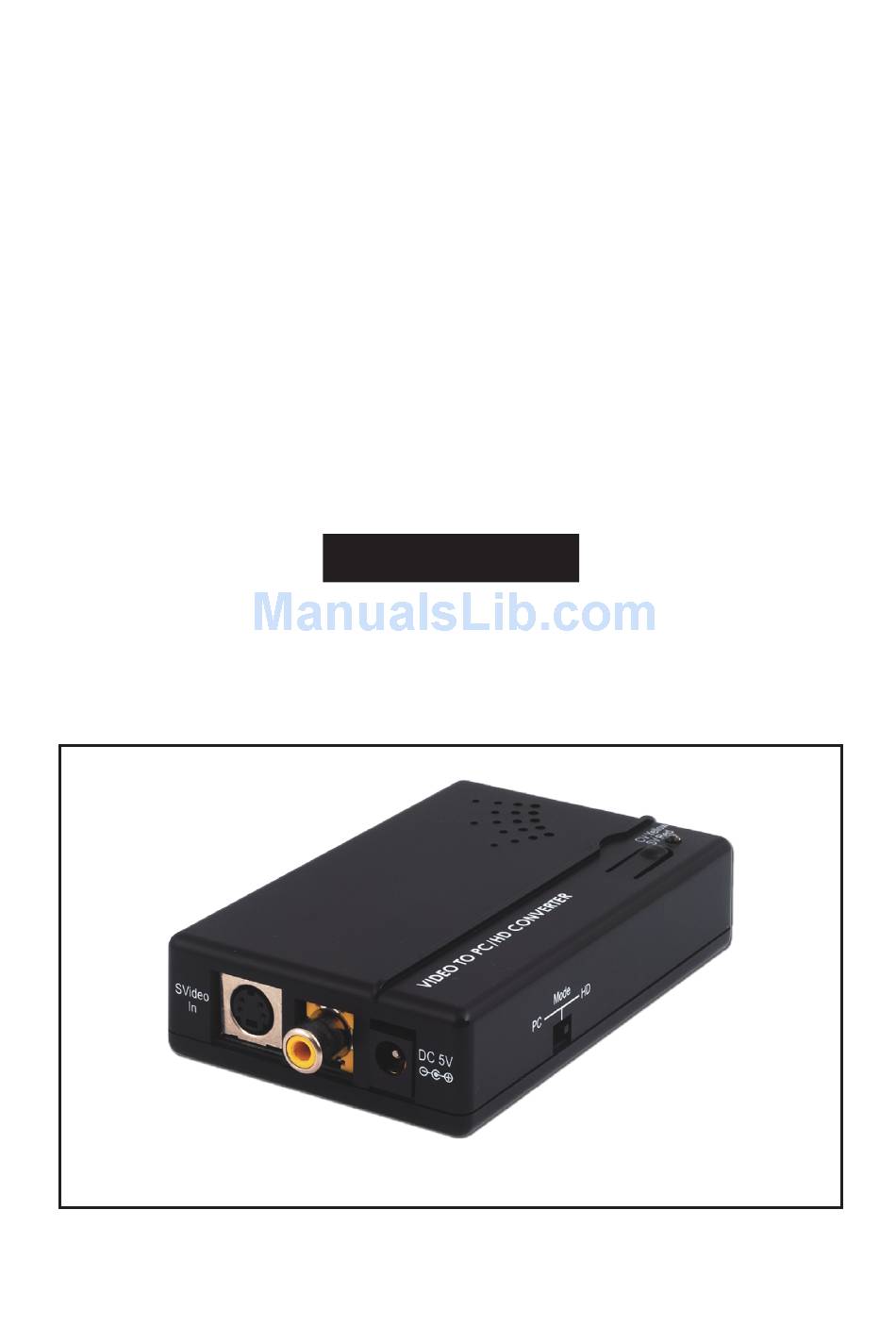

- Page 1 CM-398M CV/SV to PC/HD Converter Operation Manual CM-398M...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction………………………………………..………..………. Applications……………………..……………..………....…. Package Contents…………………………..…………....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………..………...…. Support Timing Chart ............. Operation Controls and Functions..……..…....… Left side Panel ................ Right side Panel …………………………………………..….… Front Panel ………………………...…..…….....…….… Top Panel …………………………………………...…….… 8. OSD....…………..........…..…..…... 9. Connection and Installation....…………..…..…..…... Acronyms …….………....…………..…..….....…... -
Page 5: Introduction
1. Introduction This economical Video to PC converter box that can convert CV/SV (NTSC or PAL system) to supported PC resolution like XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or Game sources on the PC monitor, this device also has an On- Screen Display that allows users to easily select their desired output resolution. -
Page 6: Specifications
6. Specifications Input port 1 x CV, 1 x SV Output port 1 x VGA (Component out needs D-Sub 15 to 3RCA adaptor) Output Resolution PC: XGA/SXGA/UXGA Component: 480p/576p/720p/1080p Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ±... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Left side Panel SVideo DC 5V S-Video input: This slot is where you connect the input source ① equipment such as digital camcorder or PDAs with S-Video cable for input signal sending. -
Page 8: Front Panel
7.3 Front panel Mode PC/HD switch: This dip switch allows you to select PC or component HD ① timing output. Simply slide the dip switch to left or right and the output mode will display your desire selection. 7.4 Top panel CV:Yellow VIDEO TO PC/HD CONVERTER SV:Red... -
Page 9: Osd
8. OSD ← IN / OUT ← PC Monitor ← F / W 1. Press the top panel ’ s button once to switch in between CV/SV. When input source is disconnected the OSD will show “ No Signal ” . 2. -
Page 10: Connection And Installation
9. Connection and installation PC Monitor 3RCA D-Sub D-Sub Component TV CM-398M... -
Page 11: Acronyms
Acronyms Acronym Complete Term Composite Video High Definition NTSC National Television System Committee Phase Alternate Line Personal computer Set-Top-Box S-Video UXGA Super eXtended Graphics Array Video Graphics Array Extended Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20101001 MPM-CM398M...
