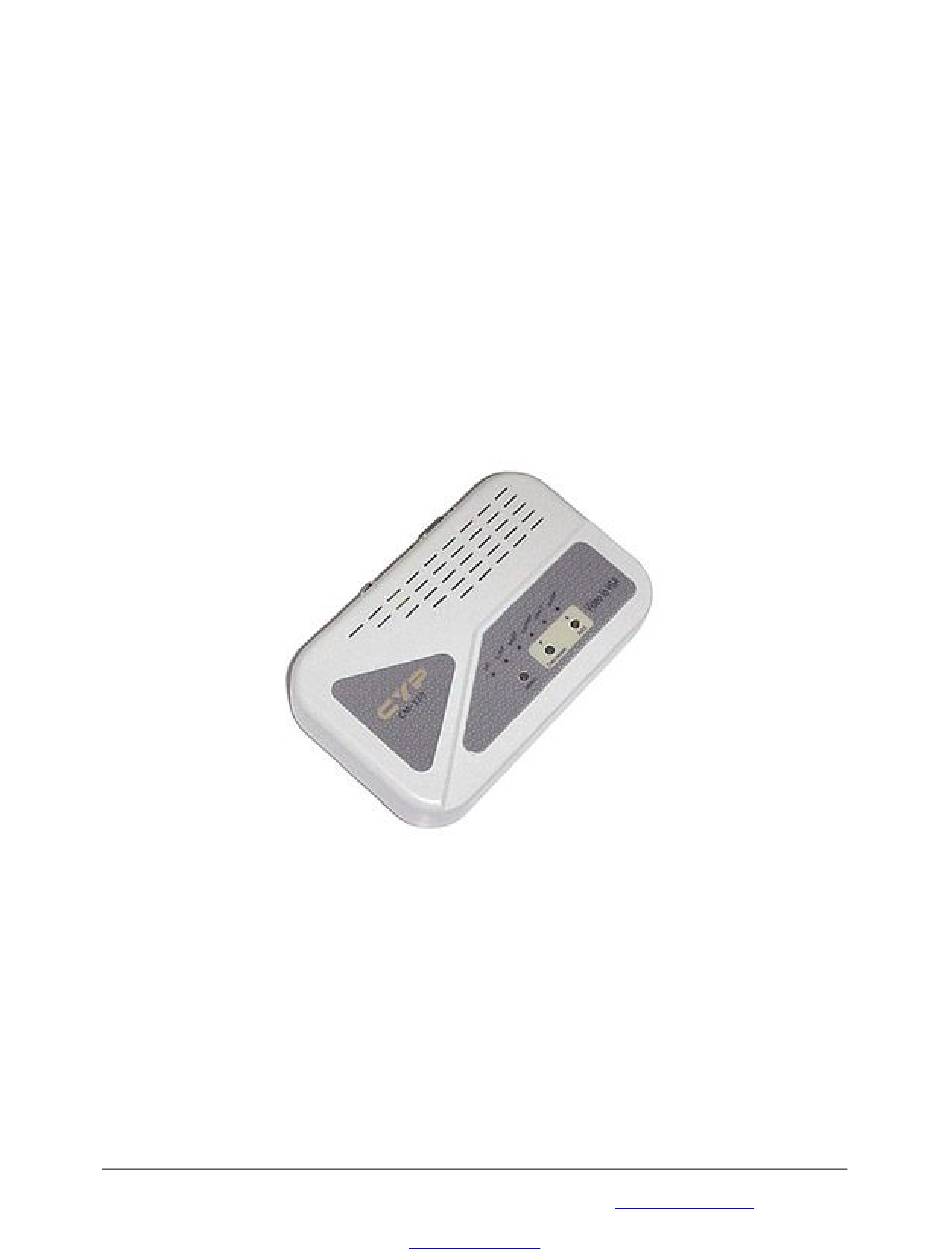

- Page 1 NTSC/PAL Video to VGA Converter (CM-330) Operation Manual Please browse our online catalogue to view our full product range. 44-48 Maitland Road, Mayfield East, NSW, 2304 Australia, sales@converters.tv Phone +61 249689313 Fax +61 249689314 www.converters.tv...
- Page 2 Introduction This unit allows you to watch TV, play video games on your VGA PC (CRT) monitor from any NTSC or PAL source. It also enables you to add a Video-In feature to your VGA monitor. You may view camcorder, VCR or DVD on your PC monitor. Precautions 1.

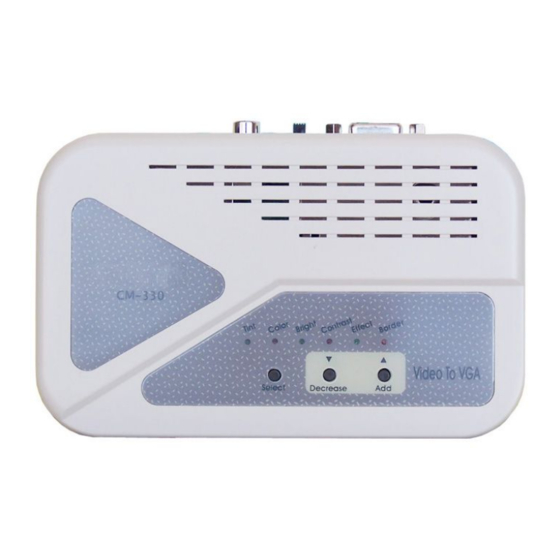

- Page 3 Operation controls and functions Top Panel 1. Tint Indicator- This indicator will light up when tint level is adjusted. 2. Colour Indicator- This indicator will light up when the colour level is adjusted. 3. Bright Indicator- This indicator will light up when the level of brightness is adjusted.
- Page 4 Rear Panel 1. DC 7.5 V- This is the power supply input port. 2. S-Video Input- This is the S-Video input port. Using the appropriate connector cable (4 Pin Din connector) connect the port to your input device. 3. Video Input- This is the composite Video input port. Using the appropriate connector cable (RCA Jack) connect the port to your input device.
- Page 5 Specifications Input signal 1 x Composite Video: 1 Vp-p 75 ohm RCA Jack. 1 x S-Video: Y/C In; 4 Pin Din connector. Output signal 1 x VGA: 0.7 Vp-p RGB, 15 Pin D Female connector. Power supply DC 7.5V 500mA Center negative Dimension 145 (D) x 90 (W) x 33 (H) mm Accessory...
