Summary of Contents for CYP CMDPH-2C

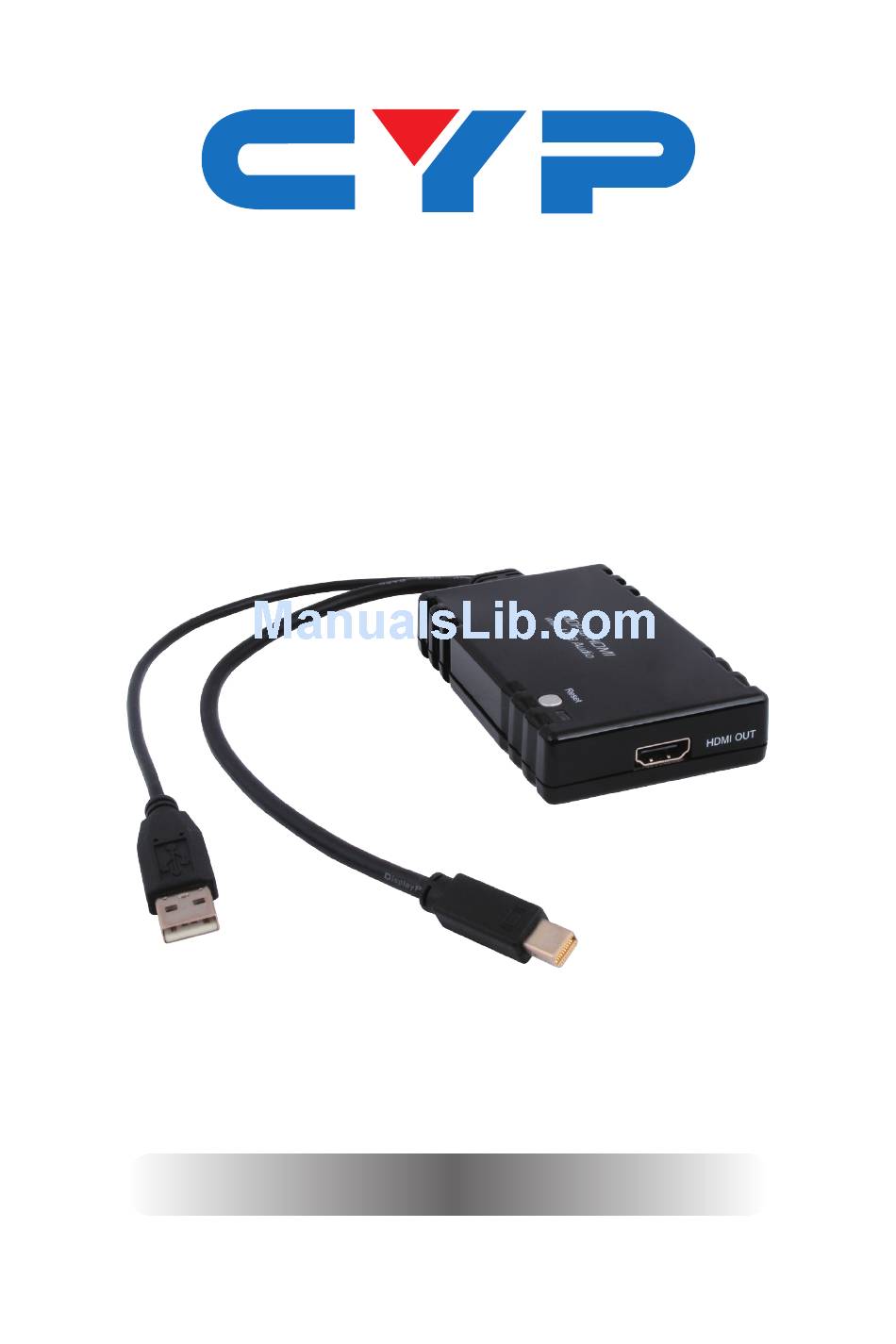

- Page 1 CMDPH-2C Mini-DisplayPort to HDMI Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 6.3 Top Panel ..........3 7. -
Page 6: Introduction
1. INTRODUCTION The Mini-DisplayPort to HDMI Converter is designed to display your MAC /PC / Notebook content on an HDTV or monitor. No external power supply is required, as the model can be powered by USB directly. No need to install any software, the model can work with MAC / PC / NB in a plug-and-play fashion, the installation is easy to anyone. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Mini-DisplayPort/USB INPUT Connect Mini-DisplayPort port to the source equipment, and USB port to device providing power supply. The USB cable, if connected to MAC/PC/NB, can be used to transfer audio signal from the source and be integrated to the HDMI output. 6.2 Rear Panel HDMI OUTPUT Connect to output display such as HD TV or monitor supporting... -
Page 8: Top Panel
6.3 Top Panel Reset Press this button only when there is no picture output. Press it repeatedly until there is image shown on the display properly. Power LED The red LED will illuminate when the USB power is connected. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Apple HDTV Monitor... -
Page 10: Specifications
8. SPECIFICATIONS TMDS Clock Frequency 2.7Gbps Input ports 1 x Mini-DisplayPort (Male type), 1 x USB Output port 1 x HDMI (Female type) Input Resolution 480i ~1080p, VGA ~ WUXGA Output Resolution 480i ~1080p, 1920 x 1200@60Hz, VGA~WUXGA I/O Audio Sample Rate Up to 48 kHz I/O Audio Support PCM 2CH... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection Mini DisplayPort... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CMDPH2C...
