- Page 1 CM-388N HDMI to CV/SV Converter with HDMI Bypass Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..............1 2. Applications ..............1 3. Package Contents ............1 4. System Requirements ............ 1 5. Features ................2 6. Operation Controls and Functions ....... 3 6.1 Front Panel ..............3 6.2 Rear Panel ..............4 6.3 Supported Resolutions .......... -
Page 6: Introduction

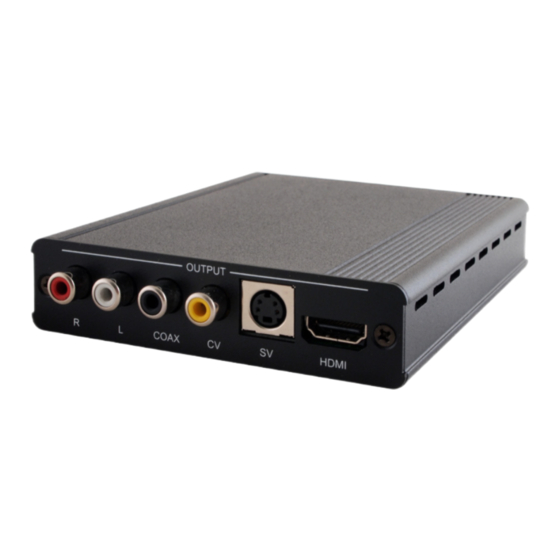

1. INTRODUCTION The HDMI to CV/S-Video Converter is designed to convert the digital signal from HDMI (or DVI) source to analog signal of NTSC or PAL system, with L/R stereo audio. As well as S-Video and Composite video outputs, it also provides an HDMI bypass output to deliver the original signal, and a Coaxial output to send S/PDIF digital audio to an amplifier. -
Page 7: Features
5. FEATURES • HDMI, HDCP and DVI compliant • Converts video signal from HDMI source to NTSC or PAL signal (selectable) • Converts digital audio from HDMI source to analog stereo audio • Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60Hz and PC from VGA@60Hz to WUXGA@60Hz (RB) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Under HDMI IN 5V DC Scan Power Over Scan Apple NTSC PAL/NTSC Switch: Select the required format for output display. UnderScan/OverScan Switch: Select the required screen for output display. STD/Apple Switch: Switch to Apple mode when the connected HDMI source equipment is an Apple device (such like Apple TV), otherwise, switch to STD mode. -
Page 9: Rear Panel
6.2 Rear Panel OUTPUT COAX HDMI R/L OUTPUT: Connect to active speaker with RCA cables for sychronize video output with HDMI, S-Vide or Composite video. COAX OUTPUT: Connect with active speaker wor amplifier with coaxial cable for sychronize video output with HDMI, S-Video or Composite video. -
Page 10: Supported Resolutions
6.3 Supported Resolutions HD Resolutions PC Resolutions 480i/p@60 640x4480@60,72,75,85 576i/p@50 720x400@70 720p@50/60 800x600@56,60,72,75,85 1080p@24 1024x768@60,70,75,85 1080i@50/60 1152x864@70,75,85 1080p@50/60 1280x720@60(CVT) 1280x768@60,60(RB) 1280x800@60,60(RB0,75 1280x960@60 1280x1024@60,75 1366x768@60,60(RB) 1400x1050@60,60(RB) 1440x900@60,60(RB),75 1600x900@60(RB) 1600x1200@60 1680x1050@60,60(RB) 1920x1200@60(RB) Note: DVI source input does not support 480i and 576i. 6.4 Supported Audio AV Source HDMI with Embedded Audio... -
Page 11: Video And Audio Conversion/Bypass Options
6.5 Video and Audio Conversion/Bypass Options INPUT Both vido and audio from HDMI source OUTPUT HDMI → Bypass, output original video and audio from HDMI COAXIAL → output digital audio from HDMI CV+R/L Audio → Ouput analog video/ audio converted from HDMI SV+R/L Audio →... -
Page 12: Connection Diagram
8. CONNECTION DIAGRAM HD Camcorder HDMI Input Input Power Supply Under HDMI IN 5V DC Scan Power Over Scan Apple NTSC OUTPUT COAX HDMI Analog Stereo Output Digital Audio Output (Coax) Active Speakers HDMI Output Amplifier Composite/S-Video Display HDMI Display (Bypass Output) -
Page 13: Specifications
9. SPECIFICATIONS Input port 1 x HDMI type A, 1 x USB type-B Output Ports 1 x HDMI type A, 1 x Coaxial, 1 x Stereo R/L RAC jack, 1 x Composite-Video RCA jack, 1 x S-Video Power Supply 5V / 2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions 102mm(W) x 146.5mm(D) x 25mm(H) - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CM388N...
