- Page 1 CM-397M Component/CGA to PC Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ..........3 6.2 Front Panel ........4 6.3 Rear Panel .........4 6.3 OSD Menu .........5 7. -
Page 6: Introduction

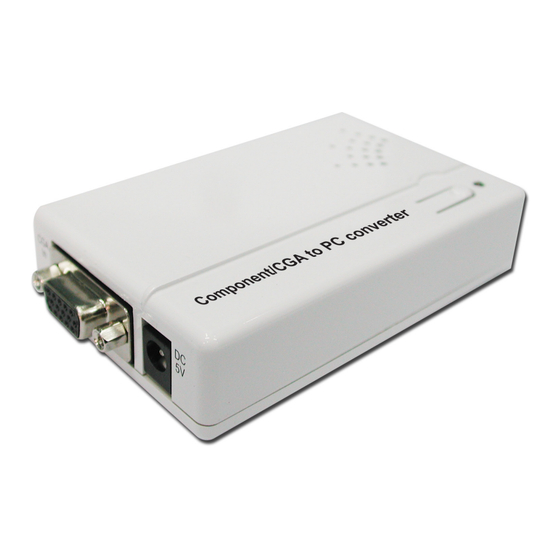

1. INTRODUCTION This is an analog CGA (RGB) or Component (YCbCr) to PC Converter box that can scale the signal to 3 different PC modes; VGA, XGA or WXGA. It enables you to connect your RGB or YCbCr signal source such as game consoles or video players to a PC display. -
Page 7: Features
5. FEATURES • Accepts CGA (RGB) or Component (YCbCr) format and converts to PC format • Scales CGA or Component (YCbCr 480i/576i) signals up to VGA/ XGA/WXGA PC resolutions • 50/60Hz frame rate conversion ensures error-free display (576i only) • The CGA (RGB) input is auto-detected and can be RGBHV, RGB H+V or RGsB (Sync-on-Green) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel Component/CGA to PC converter MENU Button Press this button once to display the current input & output resolutions and while the OSD is displayed press it again to choose between input signals, CGA (RGB) or Component (YCbCr). To enter into the OSD menu, press and hold the button for 3 seconds. -
Page 9: Front Panel
6.2 Front Panel CGA IN Connect to the source equipment such as a PC or video player with D-Sub 15-pin cable or Component (YCbCr) to D-Sub 15-pin adaptor cable. DC 5V Connect the supplied power adaptor to the unit and plug it into the AC wall outlet for power supply. -
Page 10: Osd Menu
6.3 OSD Menu 576i WXGA Phase Adjust IN Color Space H Position V Position Field Invert Information System Reset Exit The first part of the OSD will display the current input and output resolutions. Phase Adjust has a total of 32 steps for adjusting the phase, ranging from 0~31. -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM DVD Player CGA Input Component Input (via D-Sub (via 3 RCA to 15-pin Cable) D-Sub Adaptor) Power Supply FRONT REAR WXGA VGA Output CRT Monitor LCD Monitor or TV... -
Page 12: Specifications
8. SPECIFICATIONS Input Port 1×D-Sub 15-pin Female Input Signal Supports Analog-Level Signal RGB 0.7Vp-p 75Ω Hsync/Vsync 2 Vp-p ~ 5 Vp-p 75Ω YCbCr: Y 1 Vp-p 75Ω, CbCr 0.7 Vp-p 75Ω Input Timing CGA: Hf=15700 Hz, Vf=59.924 Hz/Non-interlaced 480i: Hf=15734 Hz, Vf=59.94 Hz/Interlaced 576i: Hf=15625 Hz, Vf=50 Hz/Interlaced... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Color Graphics Adapter Red Green Blue Video Graphics Array eXtended Graphics Array WXGA Widescreen eXtended Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120711 MPM-CM397M...
