Summary of Contents for CYP CM-398H
- Page 1 CM-398H CV/SV to HDMI Converter with Audio Input Operation Manual CM-398H CM-398H...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fi...
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ..................2. Applications ..................3. Package Contents ................4. System Requirements ................. 5. Features ....................6. Specifications ..................Audio Specification ............. 7. Operation Controls and Functions ............ Left side Panel ..............Right side Panel ..............Front Panel ................ -
Page 5: Introduction
1. Introduction This is a Video to HDMI™ converter box that can convert CV/SV (NTSC or PAL or SECAM system) to HDMI resolutions of XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or video game sources on the HD monitor/TV this device has an On-Screen Display function that allows users to easily select the output resolution and the audio input, after which both the video and audio signal... -
Page 6: Features
5. Features • Operates in NTSC 3.58 and PAL & SECAM system • Can scale CV/SV to HDMI format • Output resolution: ■ PC resolutions: XGA, SXGA, UXGA ■ Component resolutions: 480p/576p, 720p@50 or 60,1080p@50 or 60 • 3D (frame based) motion adaptive YNR/CNR noise reduction •... -
Page 7: Specifications
6. Specifi cations Input port 1 x CV, 1 x SV, 1 x 3.5Ø Phone Jack Output port 1 x HDMI Output Resolution PC: XGA/SXGA/UXGA HD: 480p/576p/720p@50/60 or 1080p@50/60 Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ±... -
Page 8: Operation Controls And Functions

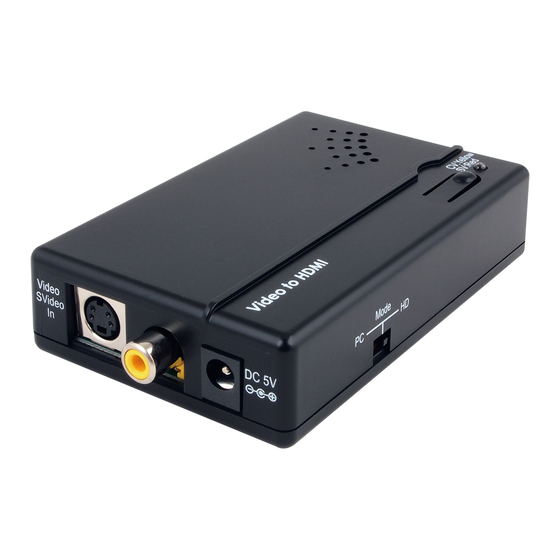

7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Left side Panel Video SVideo DC 5V DC 5V S-Video . S-Video input: This slot is where you connect the input source equipment such as digital camcorder or PDAs with S-Video cable for input signal sending. -
Page 9: Front Panel
7.3 Front Panel Mode . PC/HD switch: This slide switch allows you to select PC or component HD timing output. Simply slide the dip switch to left or right and the output mode will display your desire selection. 7.4 Top Panel CV:Yellow Video to HDMI SV:Red... -
Page 10: Osd
8. OSD ← INput format / OUTput Resolution ← PC Monitor Information ← Firmware Information 1. Press the top panel’s button once to switch in between CV/SV. If input source is disconnected the OSD will show “No Signal”. 2. Press the top panel’s button for 3 second to bring up OSD manual. 3. -
Page 11: Connection And Installation
9. Connection and Installation HDMI TV/Monitor CM-398H... -
Page 12: Acronyms
Acronyms Acronym Complete Term Composite Video High Defi nition NTSC National Television System Committee Phase Alternate Line Personal computer Set-Top-Box S-Video UXGA Ultra eXtended Graphics Array SXGA Super eXtended Graphics Array Extended Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CM398H...
